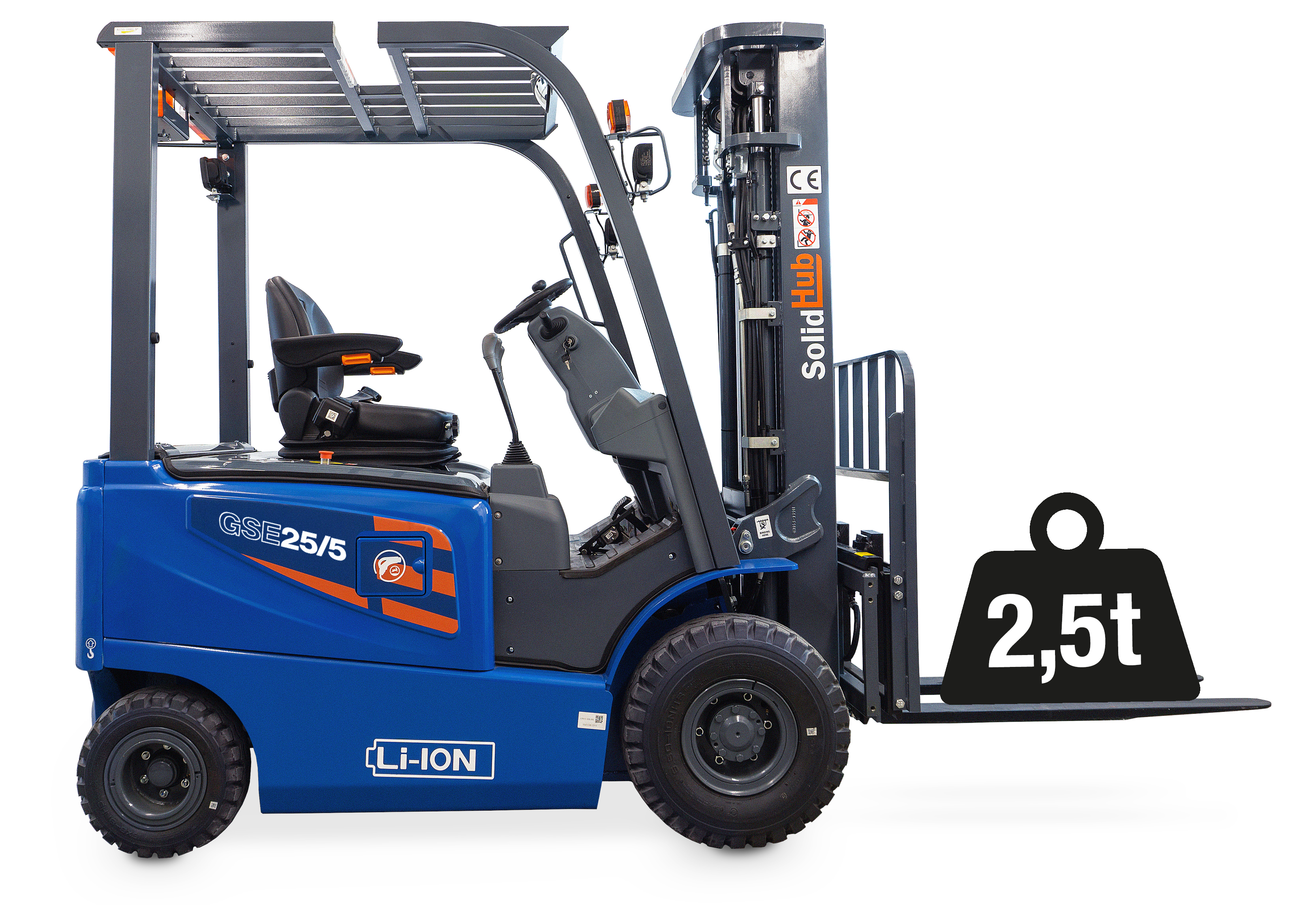

LI-ION electric forklift GSE25/5 with integrated charger, load capacity 2.500 kg, SolidHub

 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
(9)
No further discount is provided for this item. This also applies to self-collection and promotions. The cart discount reduction is already included in the final price.
Technical data
Article No. 120571
  • Model
    GSE25/5
  • Max. load
    2,500 kg
  • Mobile
    Yes
  • Lifting height
    40 mm - 4,800 mm
  • Free lifting height
    1,206 mm
  • Fork length
    1,200 mm
  • Speed
    13 km/h km/h
  • Energy source
    Battery
  • Battery
    Li-Ion
  • Battery life
    5 h - 6 h
  • Charging time
    5 h - 6 h
  • Weight
    4,360 kg
  • Colour
    Blue
  • Surface
    Painted
  • Width
    1,180 mm
  • Depth
    3,634 mm
  • Height
    2,210 mm - 6,120 mm
  • Tyres
    Pneumatic
  • Motor power
    12,000 W
  • Gradeability
    15 % - 25 %
  • Turning radius
    2,140 mm
  • Assembled
    yes
  • Protection class
    IPx4
  • Range of application
    Indoor / Outdoor
  • Power
    11,000 W
  • Voltage
    80 V
  • Capacity
    202 Ah
Media
Delivery volume
  • 1 x LI-ION electric forklift GSE25/5 with integrated charger, load capacity 2.500 kg, SolidHub
  • 1 x vehicle instruction upon delivery/handover on request
  • 2 x vehicle keys
  • 12 Months warranty
  • Guaranteed spare parts supply and customer service
  • Charges at standard 230 V household sockets, completely without high-voltage current
  • Quick helper when storing goods and unloading lorries
  • High energy efficiency, thanks to the actual energy consumption of 6 kW
  • Particularly small turning radius thanks to the practical rear steering
  • Fast charging and high energy density thanks to the innovative Li-ion battery
  • Handles, adjustable seat and intelligently positioned steps for ergonomics
  • Stepless lifting of the fork thanks to the triplex lift mast
  • With curved rear-view mirror, audible reversing alarm and horn for safe working

The brand-new electric forklift truck GSE25/5 from SolidHub is the future-orientated companion for everyday warehouse work.

The 80 V / 202 Ah Li-ion battery supplies the electric motors with energy and also improves your company's carbon footprint. The forklift truck's battery technology offers many advantages. A lithium-ion battery is more powerful than the frequently used lead-acid batteries. The energy density is many times higher, which leads to an increased running time. The charging performance is also much better. This means that charging the powerful Li-ion battery takes just 5 - 6 h. Another advantage is the low maintenance intensity. While lead-acid batteries require regular topping up with distilled water, this is not necessary with lithium-ion batteries. Accordingly, this battery technology saves you both time and a costly and additional aquamatic system, which would also be prone to errors.

Utilise the latest battery technology with the high-quality GSE25/5 and its powerful Li-ion battery.

Sustainable and durable

The robust front loader, also known as a counterbalance truck, receives its counterweight from the 160 kg heavy-duty battery block. Both the motor and the battery are installed under the driver's seat to save space, thus creating the low centre of gravity required for ideal stability when lifting heavy loads. Goods up to 2.500 kg can be easily moved from A to B at a maximum speed of 13 km/h. The electric forklift truck can be used loaded up to an incline of 15 - 25 %.

The electronic drive is not only very quiet, but also energy-saving. A full charge of the electric forklift truck takes around 5 - 6 h. The current battery charge level can be conveniently read directly from the forklift's display.

The flexible standard charger: Integrated and always to hand

With its integrated charger, which is always to hand, the GSE25/5 Puts an end to unnecessary delays. No searching, no waiting - your charger is always there where you need it, directly in your forklift truck.

Thanks to its compatibility with the 230 V standard mains supply, the battery is charged gently and efficiently. This means that the GSE25/5 can be easily charged at any standard socket. This extends the service life of your battery and increases the performance of your forklift truck. This is perfect for small and medium-sized companies that work in 2-shift operation. The enclosed power cable can be carried with you at all times. This means you can charge your forklift truck wherever a power source is available. Flexibility and mobility are guaranteed with the GSE25/5.

The electric forklift truck is also equipped with energy-saving LED headlights and signalling lights, which allow you to work efficiently in darker warehouse or hall areas.

Exhaust-free, compact and quiet

The electric drive and small dimensions (1.180 mm x 3.634 mm x 2.210 - 6.120 mm) make the forklift truck ideal for indoor use, as it is emission-free and very quiet. Nevertheless, it is also at home outdoors to transport goods and merchandise safely to their destination.

It makes everyday work easier when loading and unloading lorries, containers and transporting goods.

The compact 3-way telescopic mast stores goods steplessly up to a lifting height of 40 - 4.800 mm. It extends in 3 steps with mast heights between 2.210 - 6.120 mm. The small dimensions of the vehicle when the telescopic mast is retracted also make it perfect for unloading inside a 40-foot high cube sea freight container.

Thanks to the rear steering, the GSE25/5 impresses with a small turning radius of 2.140 mm, making it easier to work in confined spaces, e.g. between rows of racking. The travel path requires a minimum width of 3794 mm. The power steering integrated as standard enables effortless manoeuvring of the forklift truck.

High performance thanks to lithium-ion technology

Compared to conventional electric forklift trucks with lead-acid batteries, the GSE25/5's lithium-ion battery offers many advantages. For example, the charging time is many times shorter. The charging efficiency is also much better. In addition, the number of possible charging cycles until the battery block is taken out of service and therefore the service life increases considerably when a lithium-ion battery is used. The lithium-ion battery of the electric forklift truck also has a particularly high energy density. This is why the service life is also particularly long.

Another major advantage is that lithium-ion batteries are maintenance-free. This eliminates the need for the time-consuming filling of distilled water, which either takes a lot of time or requires an additional aquamatic system.

Convenient operation & good all-round visibility

Getting into the driver's cab is ergonomically designed and with a non-slip step and grab handle, the design also focusses on maximum safety.

The forks are raised, lowered and tilted in a user-friendly manner using the levers next to the steering column. The width of the forks is adjusted manually on the fork mast. This makes the electric forklift truck an all-rounder that can be used for much more than just Euro pallets.

The steering wheel, with a diameter of 45 cm, is equipped with a rotary knob for easy operation in the tightest of spaces. The cab can be easily customised to suit the driver: the steering unit can be adjusted in height and the driver's seat can be adjusted forwards and backwards.

The seat belt required by law ensures safety when driving.

Another plus in terms of safety: the all-round view via the curved rear-view mirror and the rear handle with horn function. The latter contributes to a stable seating position when reversing and ensures greater driving comfort and safety. The curved shape of the protective roof and the lattice struts with the correct angle improves the view upwards to the load. The display next to the steering column shows the battery status, speed and operating hours counter. The electric forklift truck is parked safely using the ratchet handbrake.

The weight of the forklift truck is evenly distributed over the 4 pneumatic rubber wheels. The front wheels (23X9-10-16PR) are larger than the rear wheels (18X7-8-14PR), which are controlled by the rear steering.

Notes:

For the use of the electric forklift truck in Germany, a driver's licence L (forklift licence) is required and annual instruction in its use is also mandatory in accordance with § 4 DGUV V1. Please observe national regulations if applicable.

There is no shopping basket discount for this article. The 10% reduction is already included in the price.

The forklift truck does not have road approval with the listed equipment. Such approval can be obtained by retrofitting the reflective coating, a warning bar and acceptance by an official testing authority.

Please inform yourself about the applicable national regulations in the country of use before commissioning. The commissioning engineer is responsible for commissioning the device and for selecting suitable personnel for its use.

IMPORTANT - Handling the battery:
Please be sure to follow the instructions for using the battery in the operating instructions. It is important not to allow the battery to become deeply discharged under any circumstances. It is therefore recommended that the battery is charged regularly, even when the appliance is not in use.

......read more
Notes

Delivery note

This item will be delivered by articulated lorry (40 t) with side/rear unloading. For this, a suitable lifting device (e.g., forklift) must be provided by the customer. Additional services, such as delivery via tail lift, truck-mounted forklift, or low-loader, are available at an extra charge.

 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
(ᴓ 5.00 / 5.00)
Our independent rating partner "Trusted Shops" has established various measures to ensure that the ratings shown here only come from consumers who have actually purchased the products. A detailed description of the measures can be read at Trusted Shops.
Relevant ratings
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
01.12.2024 based on Art. No. 120571
Great service for delivering the forklifter in Holland. The forklifter is a Great machine.
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
19.12.2022 based on Art. No. 120571
Price performance of the forklift is top.
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
27.04.2022 based on Art. No. 120571
The forklift is in folder, but unfortunately instruction has not taken place. The driver simply drove away after unloading the forklift truck
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
27.11.2024 based on Art. No. 120571
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
15.03.2023 based on Art. No. 120571
Frequently asked questions
Questions about the product
How many months and what defects does the warranty cover?

For all items in the shop - which are not consumables - we grant a warranty of 1 year. This warranty is valid from the date of invoice and covers material, processing or construction defects. Damage caused by natural wear and tear, improper handling or unauthorized modification is not covered by the warranty. On articles with batteries and / or accumulators we grant a voluntary functional guarantee of 6 months from the date of purchase on the batteries / accumulators .

Exceptions are our heavy duty shelves incl. single parts. Here we grant a 5 year warranty.

What are the advantages of lithium-ion technology over other battery types?

Lithium-ion batteries offer many advantages compared to other rechargeable batteries: The charging efficiency is higher and the battery can withstand a higher number of charging cycles. Thus, it has a longer product life compared to lead-acid batteries. In addition, this technology has a high energy density and thus a higher efficiency in use. Deep discharges are also survived with less damage, which further increases the robustness and reliability of electronic devices.

Does the forklift have a fork adjustment?

Yes, each of the SolidHub forklifts has a fork adjustment. This can be done manually.

Does the forklift have a side lift?

Yes, the GSE15/5, GSE25/5 and GSE35/5 models all have electric side lift, which can be controlled from the operator's cab.

How do you read a load chart?

Here you will find all the information you need to read a load chart.
