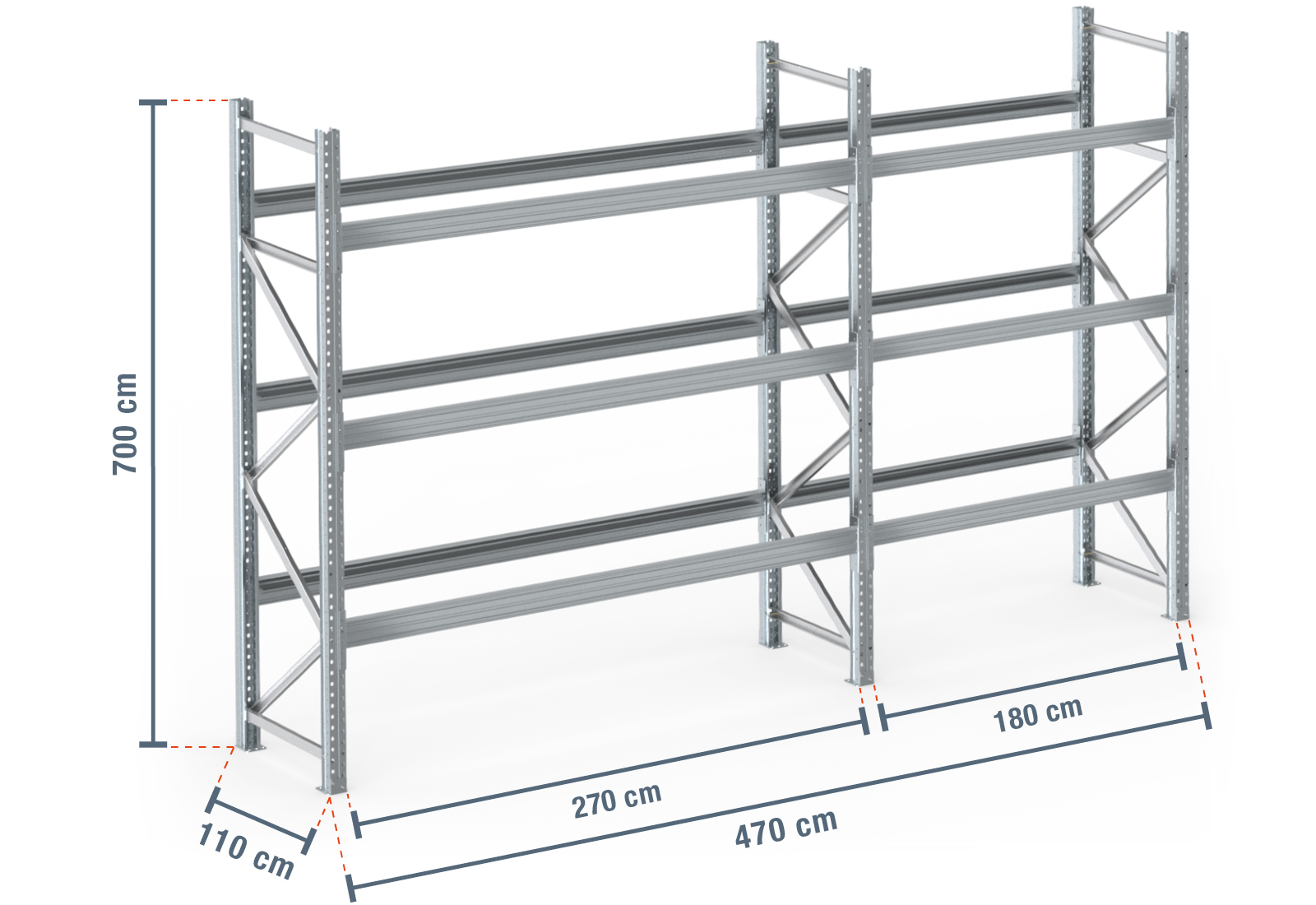

4,7 m Pallet rack PR9000F / hot-dip galvanized / 110 cm deep / 7 m high / 3 levels for 20 Euro pallets
- Withstands high loads of up to 9.000 kg per bay without difficulty
- High-quality workmanship throughout the pallet rack
- Lots of storage space thanks to the 3 levels and 2 bays
- Hot-dip galvanised surface for outdoor storage
- Withstands high loads of up to 9.000 kg per bay without difficulty
- High-quality workmanship throughout the pallet rack
- Lots of storage space thanks to the 3 levels and 2 bays
- Hot-dip galvanised surface for outdoor storage
-
ModelPR9000F
-
Number of levels3
-
Rack layerWithout
-
Width4,700 mm
-
Depth1,100 mm
-
Height7,000 mm
-
Max. load per field9,000 kg
-
Maximum load per level2,000 kg
-
Maximum load per pallet1,000 kg
-
SurfaceHot-dip galvanised
- 3 x upright PR9000F 7 m high / 110 cm deep incl. strutting, unit load capacity: 9.000 kg
- 6 x beam PR9000F 180 cm wide incl. safety pins, compartment load capacity: 2000 kg
- 6 x beam PR9000F 270 cm wide incl. safety pins, compartment load capacity: 3000 kg
- Assembly material
- Load capacity labels in accordance with German DGUV 208-061
- Assembly instructions
- 5 Years warranty
The TOPREGAL pallet racks PR9000F stand out not only for their particularly high load capacity, but also for their modular and flexible design. This complete package has been tested for a maximum load of 2.000 kg per rack beam level in accordance with EN 15512 and therefore has a maximum bay load of 9.000 kg; it can be loaded with 1.000 kg per pallet.
The rack beams are hot-dip galvanised, making them ideally suited to outdoor use. They are simply hooked into the rack uprights using a push-fit assembly system. Additional safety pins protect the rack beam from accidentally being lifted out and thus ensure safety. The pallet racking frames consist of two hot-dip galvanised upright profiles. The front and rear upright profiles are bolted together using horizontal and diagonal braces, providing particularly high stability. To ensure additional stability, 2 base plates are mounted at the lower ends of each rack upright and firmly anchored to the floor with anchor bolts. This makes our modular pallet rack not only customisable, but also particularly safe thanks to its secure anchoring in the ground.
The surface of this rack is hot-dip galvanised and therefore weather-resistant. It is particularly suitable for outdoor use, in cold stores, corrosive environments or similar applications.
Customisable thanks to modular design
The flexibility of these racks is particularly impressive. The rack beams can be individually hooked in at height increments of 50 mm to create rack bays of different sizes. In our configurator, you can also combine different bay widths and rack heights to meet your individual requirements. Additional bays measuring 180 cm, 270 cm and 360 cm wide, or a workbench, can also be added at a later stage. Further levels can also be added at different heights.
It is no secret that TOPREGAL is confident in its pallet racks. That is why we offer a 5-year guarantee on every rack we sell.
For our pallet racks, we also offer wooden, wire-mesh, grating and steel storage surfaces to provide the optimal storage solution for your needs.
Quick and easy assembly
All mounting materials, such as nuts, screws, anchor bolts, base plates and all small parts required for assembly, are included in the price and delivery. If you experience problems assembling or inspecting your new pallet rack, we also offer professional rack assembly and rack inspections in accordance with DIN EN 15635.
Safety-related and useful accessories for this rack type, such as rack protectors, wire mesh decking or push-through guards, can also be found in our webshop.
See for yourself the flexibility of TOPREGAL pallet racks.
-
ModelPR9000F
-
Number of levels3
-
Rack layerWithout
-
Width4,700 mm
-
Depth1,100 mm
-
Height7,000 mm
-
Max. load per field9,000 kg
-
Maximum load per level2,000 kg
-
Maximum load per pallet1,000 kg
-
SurfaceHot-dip galvanised
- 3 x upright PR9000F 7 m high / 110 cm deep incl. strutting, unit load capacity: 9.000 kg
- 6 x beam PR9000F 180 cm wide incl. safety pins, compartment load capacity: 2000 kg
- 6 x beam PR9000F 270 cm wide incl. safety pins, compartment load capacity: 3000 kg
- Assembly material
- Load capacity labels in accordance with German DGUV 208-061
- Assembly instructions
- 5 Years warranty
All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (german DGUV Rule 208-061) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.
We offer among others the following payment methods:
- ProForma Invoice
- Credit and debit cards
- Paypal
For more information on how to process each payment method, please see our detailed page.
The steel thickness of the cross beams for pallet racks is 1.5 mm.
The individual shelf upright profiles are assembled with the correct number of cross and diagonal braces, foot plates and the appropriate assembly material.
You can find a detailed description of a shelf upright assembly in our assembly instructions.
Here you will find our overview of the individual parts.
The steel thickness of our pallet racks PR4500 and PR9000 is:
Steel S-355 JR (CRD - Coldrolled steel) 80 mm W x 70 mm D x 1.5 mm material thickness.
The steel thickness of our pallet rack PR15000 is:
Steel S-355 JR (CRD - coldrolled steel), 100 mm W x 70 mm D x 2 mm material thickness.
We offer you the common heights from 200 cm to 750 cm. For individual heights, the shelf supports are cut to size on request or manufactured individually according to your requirements.
The goods are usually delivered on a truck with side unloading. In this case, the shipment must be unloaded from the vehicle with the help of a forklift or a lifting device with sufficient lifting height. Alternatively, the goods can also be picked up manually from the vehicle.
You can find detailed information about the shipping process here.
Our racks must not be fixed to the wall. According to the standards DGUV 108-007, DIN EN 15512 and DIN EN 15635, floor anchoring of pallet racks is mandatory. For storage racks, floor anchoring is required if the depth/height ratio is greater than 5:1. If the ratio is less than this, no fastening is required. Please note: Our spacers are exclusively intended for parallel positioning of our racks.
Our 3 pallet rack models PR4500, PR9000 & PR15000 differ mainly in the load capacity for light, medium & heavy loads. Here the material thickness and dimensions of e.g. the upright profile, cross beams and foot plates differ. The construction of the three models is identical and our accessories are compatible with each other.
The model designation refers to the maximum field load of the individual systems:
- Pallet rack PR4500 - Bay load (max.): 4500 kg / Shelf load (max.): 1500 kg
- Pallet rack PR9000 - Bay load (max.): 9000 kg / Shelf load (max.): 3000 kg
- Pallet rack PR15000 - Bay load (max.): 15000 kg / Shelf load (max.): 4500 kg
This corresponds to a maximum load per pallet of 500 / 1000 / 1500 kg.
The individual levels can be hung or attached individually as desired in a grid spacing of 5 cm.
The bay load (C) is the total load-bearing capacity of a shelf bay / the load between two shelf uprights. Your own weight does not count here.
The maximum weight that rests on the individual shelf / rack is called the shelf load (B). The sum of the shelf loads must not exceed the bay load.
Point load (A) are the forces acting on the floor in a point-like manner, also known as individual load.
Of course we also offer shelves in individually adapted dimensions. Please send us an inquiry by e-mail to [email protected] or call our customer hotline 01495 707222.
You can find our contact form here.
Of course we also offer shelves in individually adapted dimensions. Please send us an inquiry by e-mail to [email protected] or call our customer hotline 01495 707222.
You can find our contact form here.
We supply all complete offers as well as individual parts including all material required for assembly.
No additional mounting material is required.
