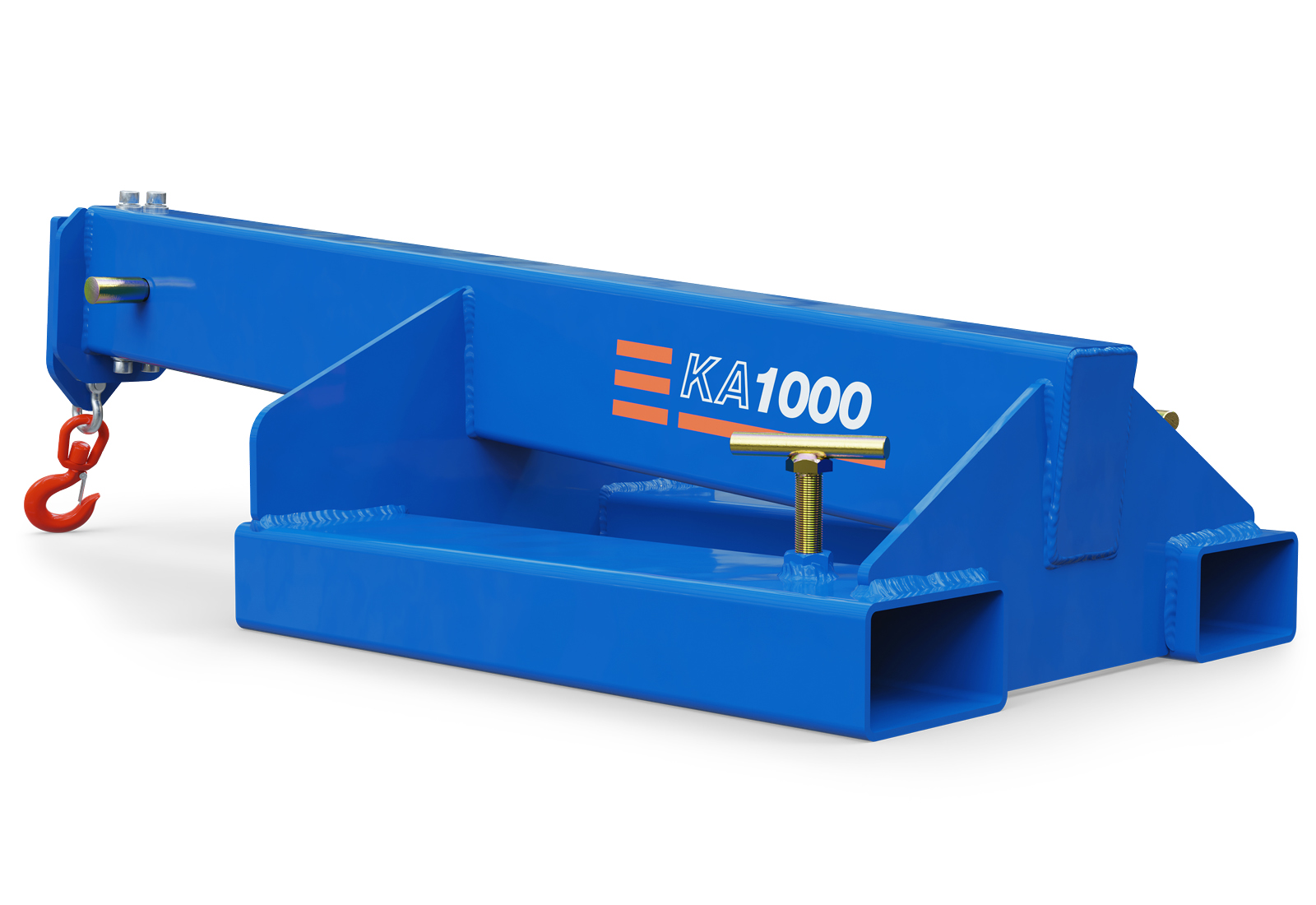

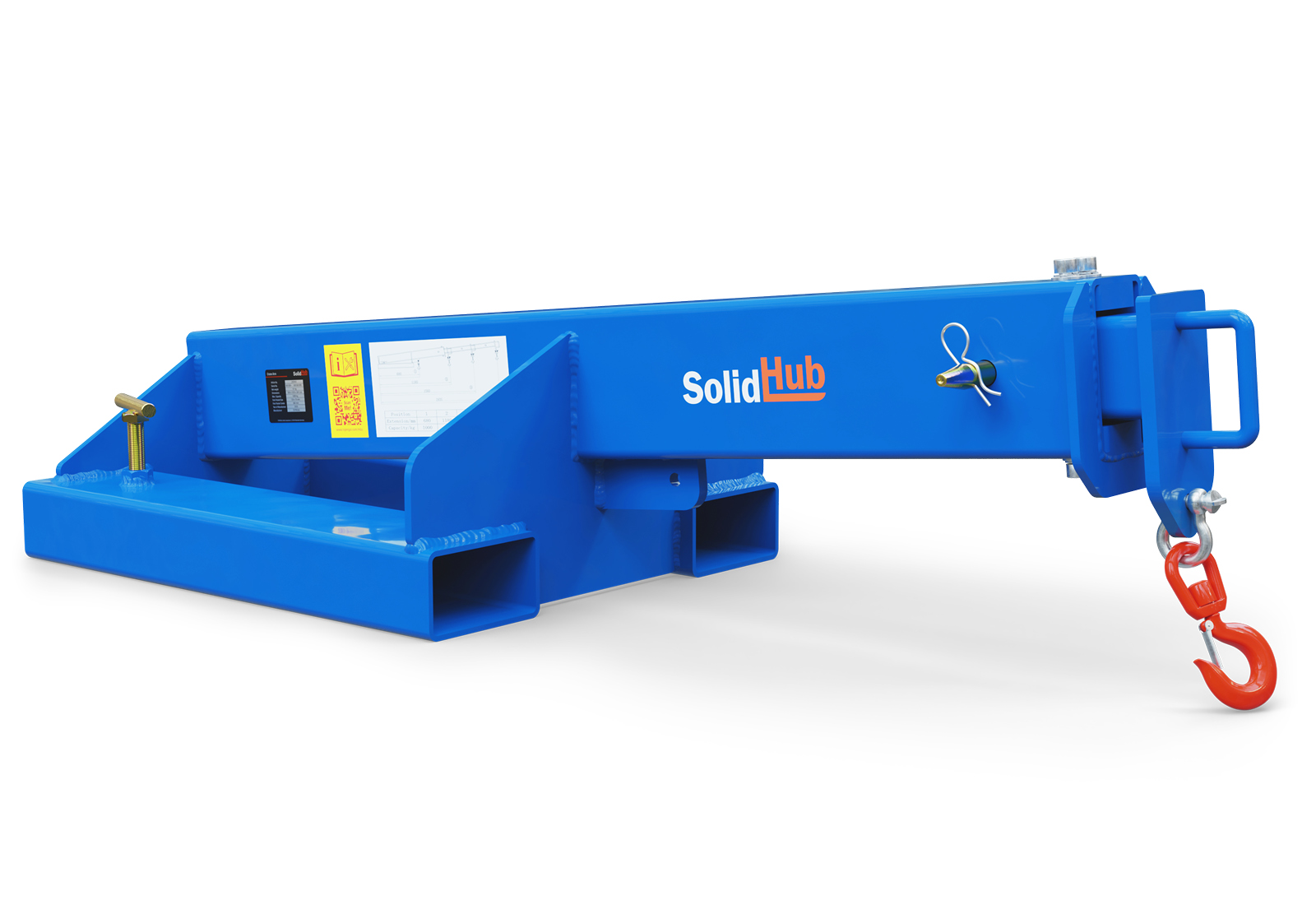

Crane arm KA1000 for forklift, WLL 1.000 kg, SolidHub
- Easily pick up and transport heavy loads from above

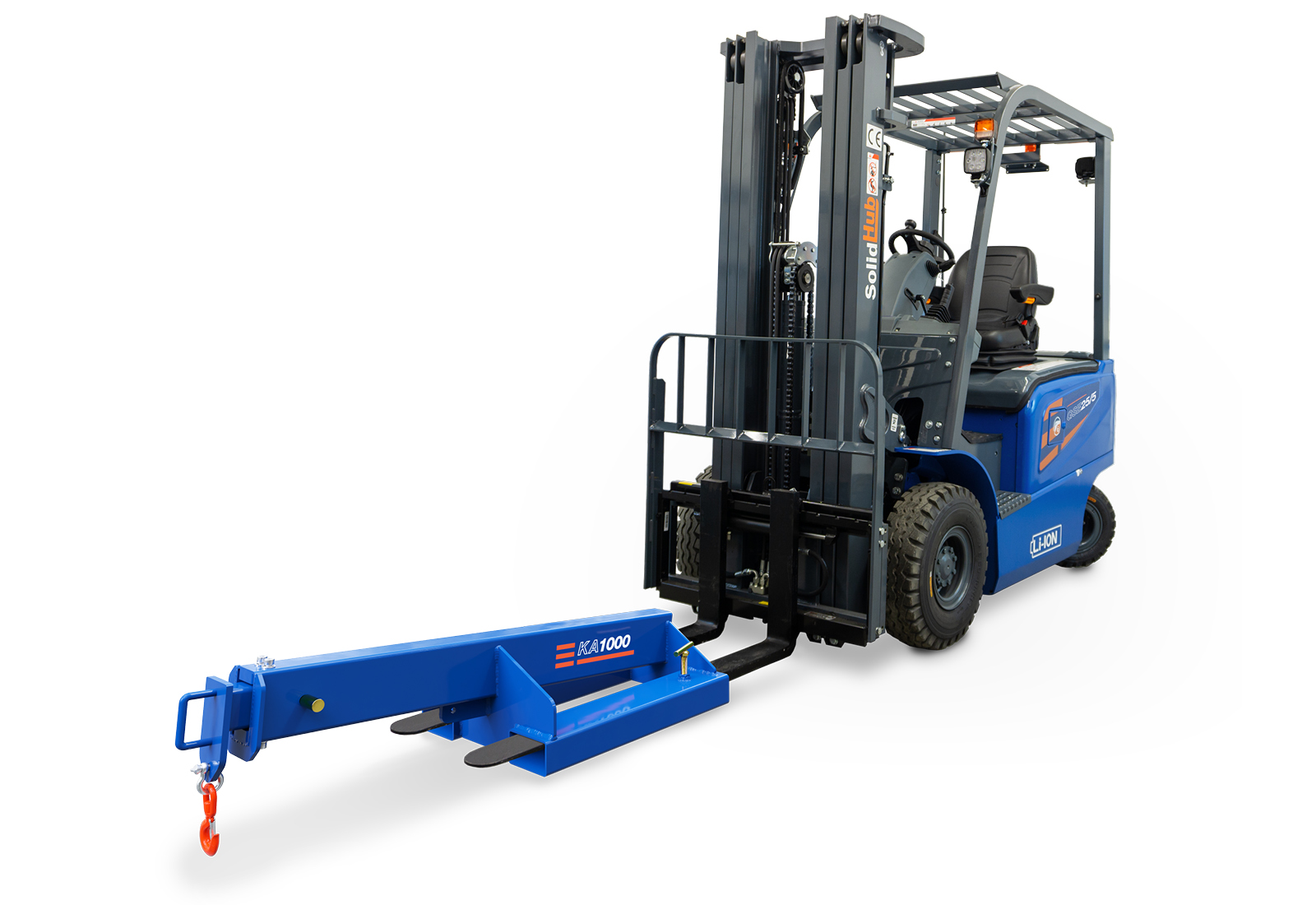

- Turn your forklift into a mobile crane in no time
- The crane arm can be extended in 4 positions
- Safety provided by 2 screw clamps
- Easily pick up and transport heavy loads from above
- Turn your forklift into a mobile crane in no time
- The crane arm can be extended in 4 positions
- Safety provided by 2 screw clamps
- Easily pick up and transport heavy loads from above
- Turn your forklift into a mobile crane in no time
- The crane arm can be extended in 4 positions
- Safety provided by 2 screw clamps

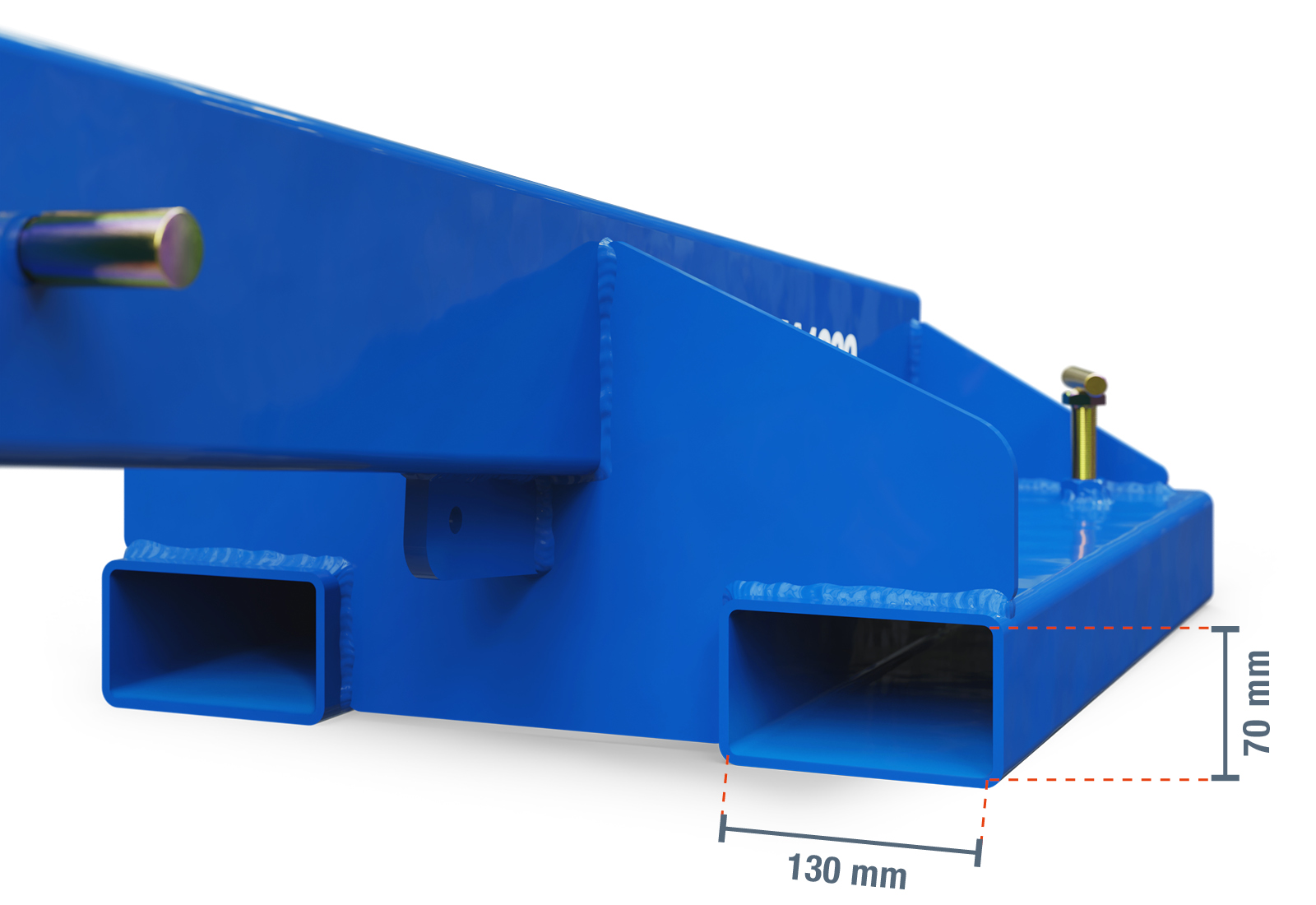

Do you want to pick up and transport heavy loads from above, but don't have a crane? With the telescopic handler from SolidHub, you can turn your forklift truck into a mobile crane in no time at all and increase its reach at the same time. The crane arm has a maximum load of 1.000 kg, 130 mm x 70 mm large fork openings and weighs 61 kg.

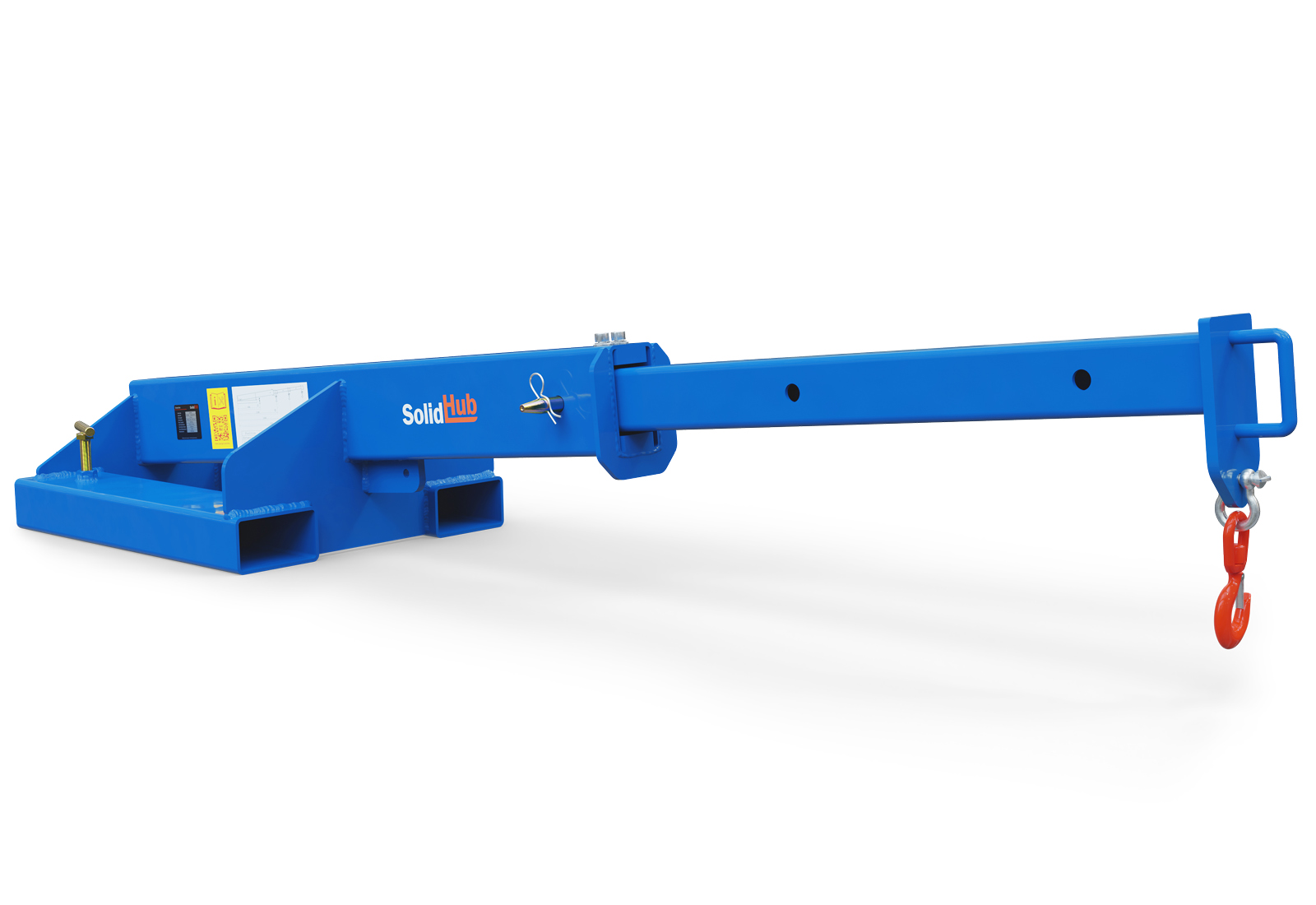

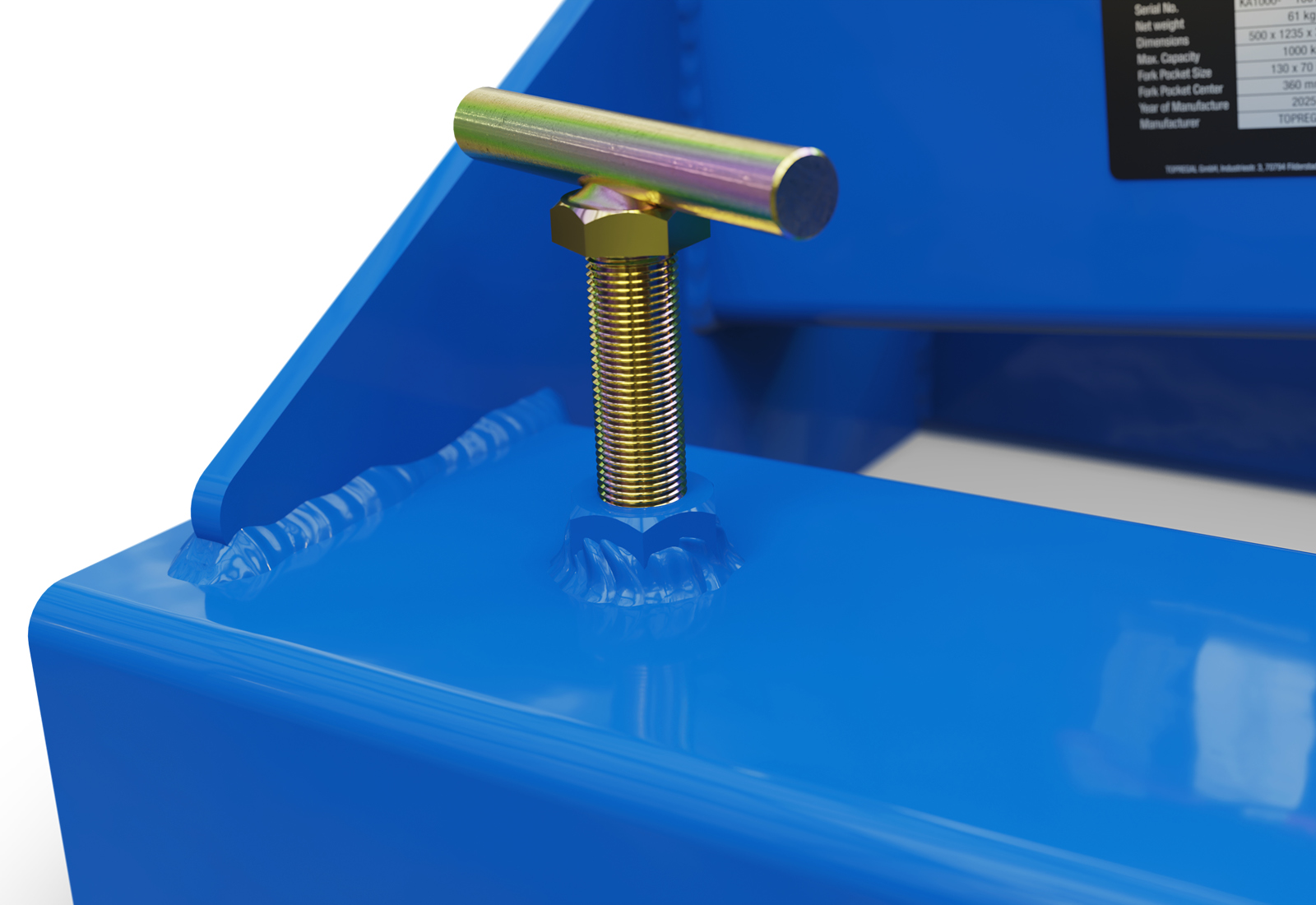

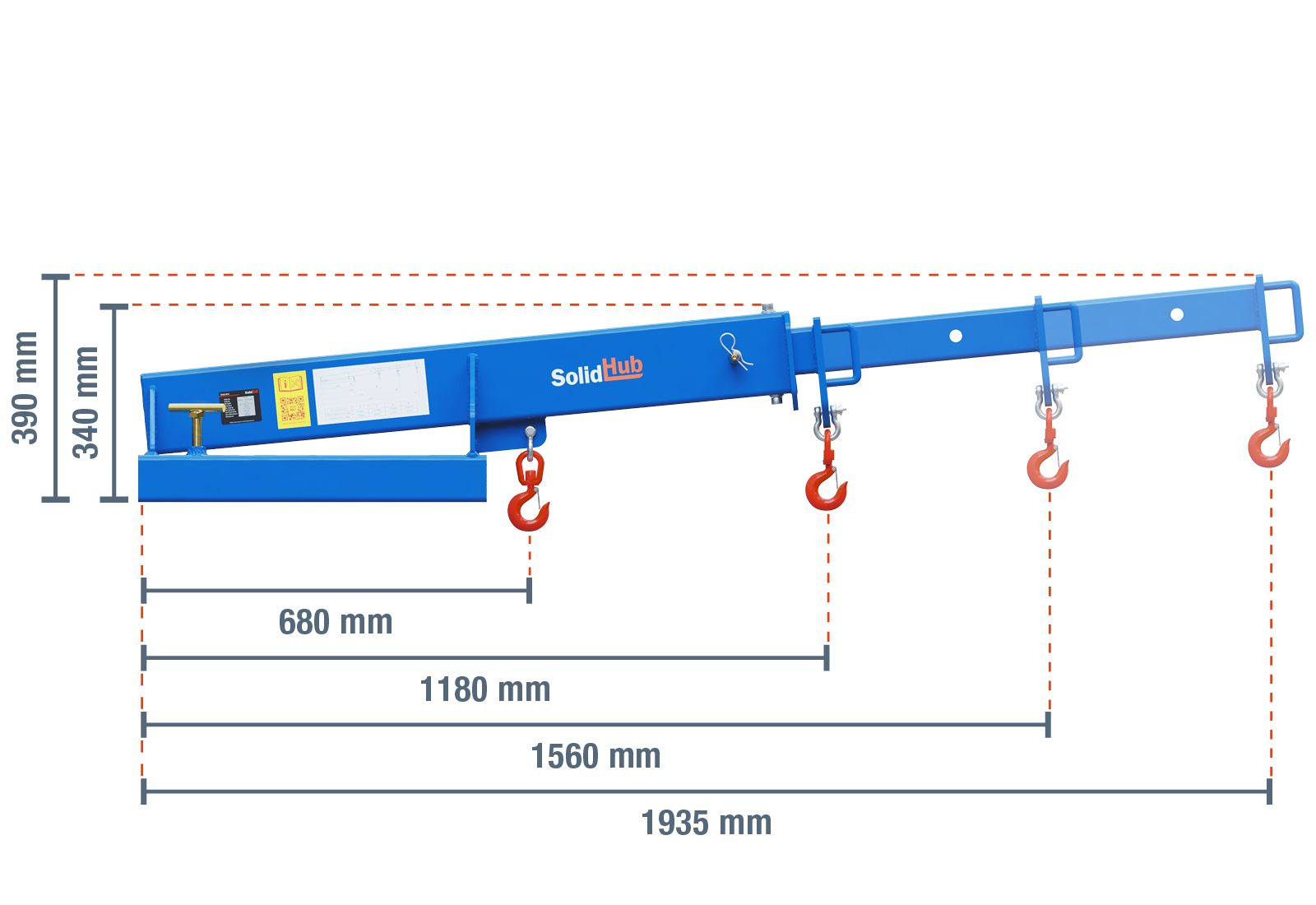

Each SolidHub Load crane has 4 positions. This allows you to select the ideal crane arm length exactly as required. Depending on the extension, the crane arm has a length of 680 - 1.935 mm. The telescopic crane arm is secured using two screw clamps.
Note:
Please note that the use of the attachment shifts the centre of gravity of your forklift truck. For more detailed information, refer to the heavy load diagram and the centre of gravity of your forklift truck.
The attachment is not suitable for pallet trucks, but for forklift trucks. Before purchasing, please check whether the attachment is compatible with your forklift truck (fork tine cross-section up to max. 130 mm x 70 mm).
Please inform yourself about the nationally relevant regulations in the country of use before you operate the device. The user is responsible for initial operation and for selecting the appropriate personnel for this purpose.
