2,3 m Storage rack LR2000 / hot-dip galvanized / 80 cm deep / 2 m high / 4 levels / steel grating deck
- High shelf load of 500 kg and bay load of 2.000 kg
- Highly flexible assembly thanks to the modular construction system
- Attractive appearance thanks to the high-quality hot-dip galvanising
- Versatile applications through the various storage surfaces
- Easy rack assembly thanks to the simple plug-in system
- High shelf load of 500 kg and bay load of 2.000 kg
- Highly flexible assembly thanks to the modular construction system
- Attractive appearance thanks to the high-quality hot-dip galvanising
- Versatile applications through the various storage surfaces
- Easy rack assembly thanks to the simple plug-in system
-
ModelLR2000
-
Number of levels4
-
Rack layerGalvanised mesh
-
Width2,300 mm
-
Depth800 mm
-
Height2,000 mm
-
Max. load per field2,000 kg
-
Maximum load per level500 kg
-
Max. load per module500 kg
-
SurfaceHot-dip galvanised
- 2 x upright 2 m high / 80 cm deep, bay load: 2.000 kg
- 8 x crossbar 220 cm wide incl. safety pins, shelf load: 500 kg
- 4 x Grating 220 cm wide / 80 cm deep, max. load: 500 kg (consisting of modules)
- Assembly materials and assembly instructions
- Load capacity labels in accordance with German regulations DGUV 208-061
- 5 Years warranty
Long span racks from TOPREGAL: high load capacity, flexible assembly
The storage racks from TOPREGAL meet every requirement thanks to their stability and versatility. Our long span racks impress with a bay load (total load evenly distributed between 2 uprights) of 2.000 kg and a shelf load of 500 kg. This allows you to store different types of stock as well as bulky and heavy items with ease.
In addition, the TOPREGAL storage racks have been tested for stability, rigidity and load capacity in accordance with the stringent German safety standard DGUV 208-061.
Assembly takes just a few steps. Thanks to the simple plug-in system, you can hook the beams in individually at increments of 50 mm and secure them with locking pins. The modular construction system also allows your shelving to be extended at any time in width and in the number of levels.
Weather-resistant thanks to hot-dip galvanising
The hot-dip galvanised storage rack LR2000 impresses not only with its high load capacity, but also with its high-quality surface finish. Thanks to this finish, it can be installed not only indoors, such as in warehouses or production facilities, but also outdoors and in cold-storage rooms.
The optimum decking for your application
The steel grating deck consists of individual modules of 110 cm or 220 cm each. The shelf is fixed and stabilised by inserting it into the stepped rack beam. Its load capacity with evenly distributed loads is max. 500 kg per steel grating deck, making it ideal for storing hazardous substances or liquids. The ability to see the stored goods from below through the steel grating deck can also be helpful in everyday warehouse operations.
Practical dimensions, easy assembly

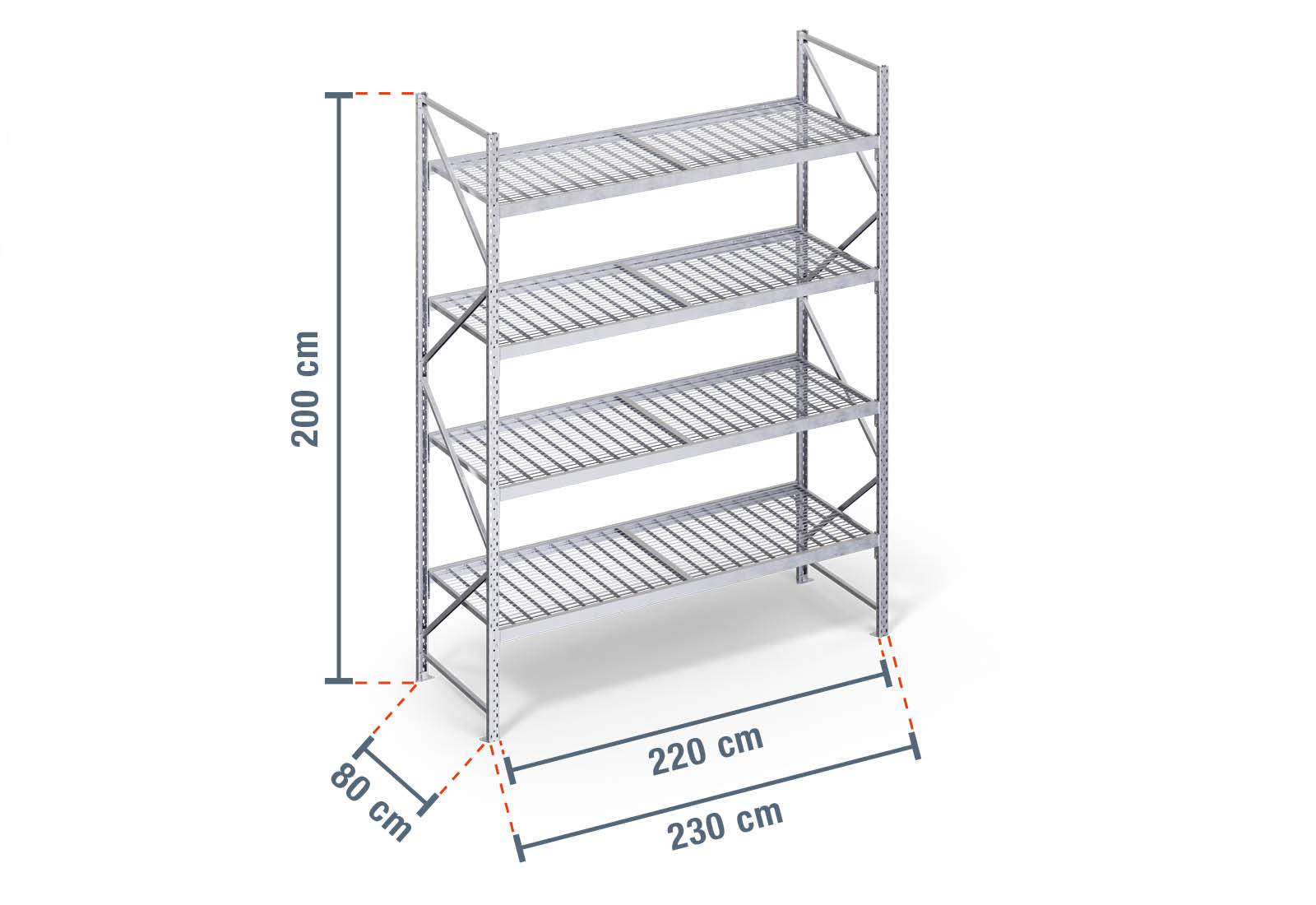

This warehouse rack impresses with its height of 2 m, depth of 80 cm and width of 2,3 m. Each of the 4 levels has a maximum load of 500 kg; the maximum load between two uprights (the bay load) of 2.000 kg must not be exceeded. These figures always refer to evenly distributed loads on the racks. Thanks to the plug-in system, assembly is quick and straightforward. The wide-span shelving from TOPREGAL is also available with a comprehensive range of individual parts and accessories, such as rack uprights, beams, magnetic strips and storage bins.
All assembly material required is included in the delivery.
-
ModelLR2000
-
Number of levels4
-
Rack layerGalvanised mesh
-
Width2,300 mm
-
Depth800 mm
-
Height2,000 mm
-
Max. load per field2,000 kg
-
Maximum load per level500 kg
-
Max. load per module500 kg
-
SurfaceHot-dip galvanised
- 2 x upright 2 m high / 80 cm deep, bay load: 2.000 kg
- 8 x crossbar 220 cm wide incl. safety pins, shelf load: 500 kg
- 4 x Grating 220 cm wide / 80 cm deep, max. load: 500 kg (consisting of modules)
- Assembly materials and assembly instructions
- Load capacity labels in accordance with German regulations DGUV 208-061
- 5 Years warranty
All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (german DGUV Rule 208-061) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.
We offer you our storage rack in the depths 40 cm, 50 cm, 60 cm, 80 cm, 100 cm and in 120 cm.
For an overview of the shelf stands with the heights and depths we offer click here.
The individual levels can be hung or attached individually as desired in a grid spacing of 5 cm.
The number of levels depends on the height / weight of your stored goods. A prerequisite is always the even distribution of the loads (shelf load: max. 500 kg, bay load 2000 kg - storage rack).
Fixing our racks to the wall is not permitted.
Pallet racks must be anchored to the floor according to DIN EN 15512 & DIN EN 15635.
Storage racks must be fixed to the floor from a depth / height ratio greater than 5:1. Below this no anchoring is required.
Our spacers are used exclusively for the parallel positioning of our shelves.
The maximum weight that a rack can carry in total is called the bay load (C). However, the rack's own weight does not count towards this (the storage rack has a bay load of 2000 kg).
The maximum weight that can be carried by a single shelf is called the shelf load (B) (the storage rack has a maximum shelf load of 500 kg).
The sum of the shelf loads (B), however, must not exceed the bay load (C). A prerequisite (for the weight specifications) is basically the even distribution of the loads. Point loads (A) are the forces acting on the floor at one point, also known as concentrated loads.
The figure shows point load (A), shelf load (B) and bay load (C) using the example of a storage rack.
Of course, we also offer shelves in customised dimensions. Please send an enquiry to [email protected], or contact us by calling our customer hotline 01495 707222.
