1,2 m storage rack LR2000 hot-dip galvanised / 60 cm deep / 2 m high / 3 shelves / support Galvanised mesh
- High panel load of 500 kg and field load of 2.000 kg
- High flexibility in design, thanks to the modular system
- Attractive appearance thanks to high-quality hot-dip galvanising
- Versatile applications thanks to the various shelf supports
- Easy shelf assembly thanks to the simple plug-in system
- High panel load of 500 kg and field load of 2.000 kg
- High flexibility in design, thanks to the modular system
- Attractive appearance thanks to high-quality hot-dip galvanising
- Versatile applications thanks to the various shelf supports
- Easy shelf assembly thanks to the simple plug-in system
-
ModelLR2000
-
Number of levels3
-
Rack layerGalvanised mesh
-
SurfaceHot-dip galvanised
-
Width1,200 mm
-
Depth600 mm
-
Height2,000 mm
-
Max. load per field2,000 kg
-
Maximum load per level500 kg
-
Max. load per module500 kg
- 2 x upright 2 m high / 60 cm deep, bay load: 2.000 kg
- 6 x crossbar 110 cm wide incl. safety pins, shelf load: 500 kg
- 3 x grating 110 cm wide / 60 cm deep, max. load: 500 kg
- Assembly materials and assembly instructions
- Load capacity labels in accordance with German regulations DGUV 208-061
- 5 Years warranty
Wide-span shelving from TOPREGAL: High load-bearing capacity, flexible design
Thanks to their stability and versatility, TOPREGAL’s storage racks meet every requirement. Our wide-span racks impress with a bay load (total load evenly distributed between two uprights) of 2.000 kg and a shelf load of 500 kg. This means you can easily store a variety of goods, including bulky and heavy items.
Furthermore, the TOPREGAL storage racks have been tested for stability, rigidity and load-bearing capacity in accordance with the German standard DGUV 208-061.
Assembly takes just a few steps. Thanks to the simple plug-in system, you can hang the crossbars individually at intervals of 50 mm and secure them with locking pins. The modular design of our storage shelving also ensures that your shelving can be extended in width and the number of levels at any time.
Weather-resistant thanks to hot-dip galvanisation
The hot-dip galvanised storage rack LR2000 impresses not only with its high load-bearing capacity, but also with its high-quality surface finish. Thanks to this, it can be installed not only indoors, such as in warehouses or production facilities, but also outdoors and in cold stores.
The ideal shelf for your application
The grating shelf consists of individual modules measuring 110 cm or 220 cm. The shelf is secured and stabilised by inserting it into the step crossbar. The load capacity with an evenly distributed load is max. 500 kg per grating shelf and is ideally suited for the storage of hazardous substances or liquids. The ability to see the goods from the floor through the grating shelf can also be helpful in day-to-day warehouse operations.
Practical dimensions, simple assembly

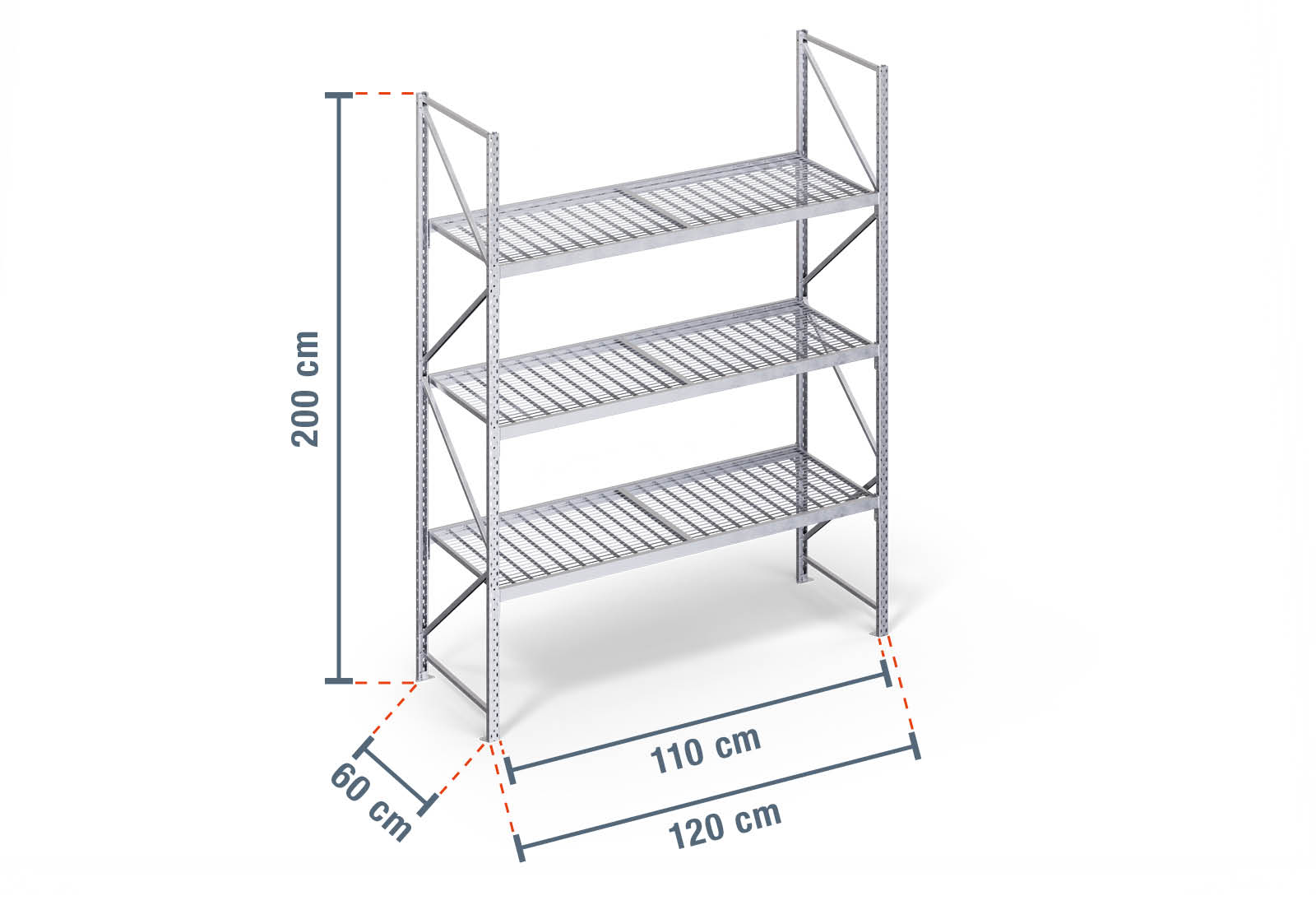

This storage rack features an impressive height of 2 m, and is 60 cm deep and 1,2 m wide. The 3 levels each offer a maximum load capacity of 500 kg; the maximum load capacity between two uprights (unit load capacity) of 2.000 kg must not be exceeded. In all cases, the data refer to an even load on the racks. Assembly is quick and easy thanks to the plug-in system. For wide span racks from TOPREGAL, there is also a wide selection of individual parts and accessories, such as rack uprights, beams, magnetic tapes and storage bins.
All material required for assembly is included in the delivery volume.
-
ModelLR2000
-
Number of levels3
-
Rack layerGalvanised mesh
-
SurfaceHot-dip galvanised
-
Width1,200 mm
-
Depth600 mm
-
Height2,000 mm
-
Max. load per field2,000 kg
-
Maximum load per level500 kg
-
Max. load per module500 kg
- 2 x upright 2 m high / 60 cm deep, bay load: 2.000 kg
- 6 x crossbar 110 cm wide incl. safety pins, shelf load: 500 kg
- 3 x grating 110 cm wide / 60 cm deep, max. load: 500 kg
- Assembly materials and assembly instructions
- Load capacity labels in accordance with German regulations DGUV 208-061
- 5 Years warranty
All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (german DGUV Rule 208-061) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.
We offer you our storage rack in the depths 40 cm, 50 cm, 60 cm, 80 cm, 100 cm and in 120 cm.
For an overview of the shelf stands with the heights and depths we offer click here.
The individual levels can be hung or attached individually as desired in a grid spacing of 5 cm.
The number of levels depends on the height / weight of your stored goods. A prerequisite is always the even distribution of the loads (shelf load: max. 500 kg, bay load 2000 kg - storage rack).
Fixing our racks to the wall is not permitted.
Pallet racks must be anchored to the floor according to DIN EN 15512 & DIN EN 15635.
Storage racks must be fixed to the floor from a depth / height ratio greater than 5:1. Below this no anchoring is required.
Our spacers are used exclusively for the parallel positioning of our shelves.
The maximum weight that a rack can carry in total is called the bay load (C). However, the rack's own weight does not count towards this (the storage rack has a bay load of 2000 kg).
The maximum weight that can be carried by a single shelf is called the shelf load (B) (the storage rack has a maximum shelf load of 500 kg).
The sum of the shelf loads (B), however, must not exceed the bay load (C). A prerequisite (for the weight specifications) is basically the even distribution of the loads. Point loads (A) are the forces acting on the floor at one point, also known as concentrated loads.
The figure shows point load (A), shelf load (B) and bay load (C) using the example of a storage rack.
Of course, we also offer shelves in customised dimensions. Please send an enquiry to [email protected], or contact us by calling our customer hotline 01495 707222.
