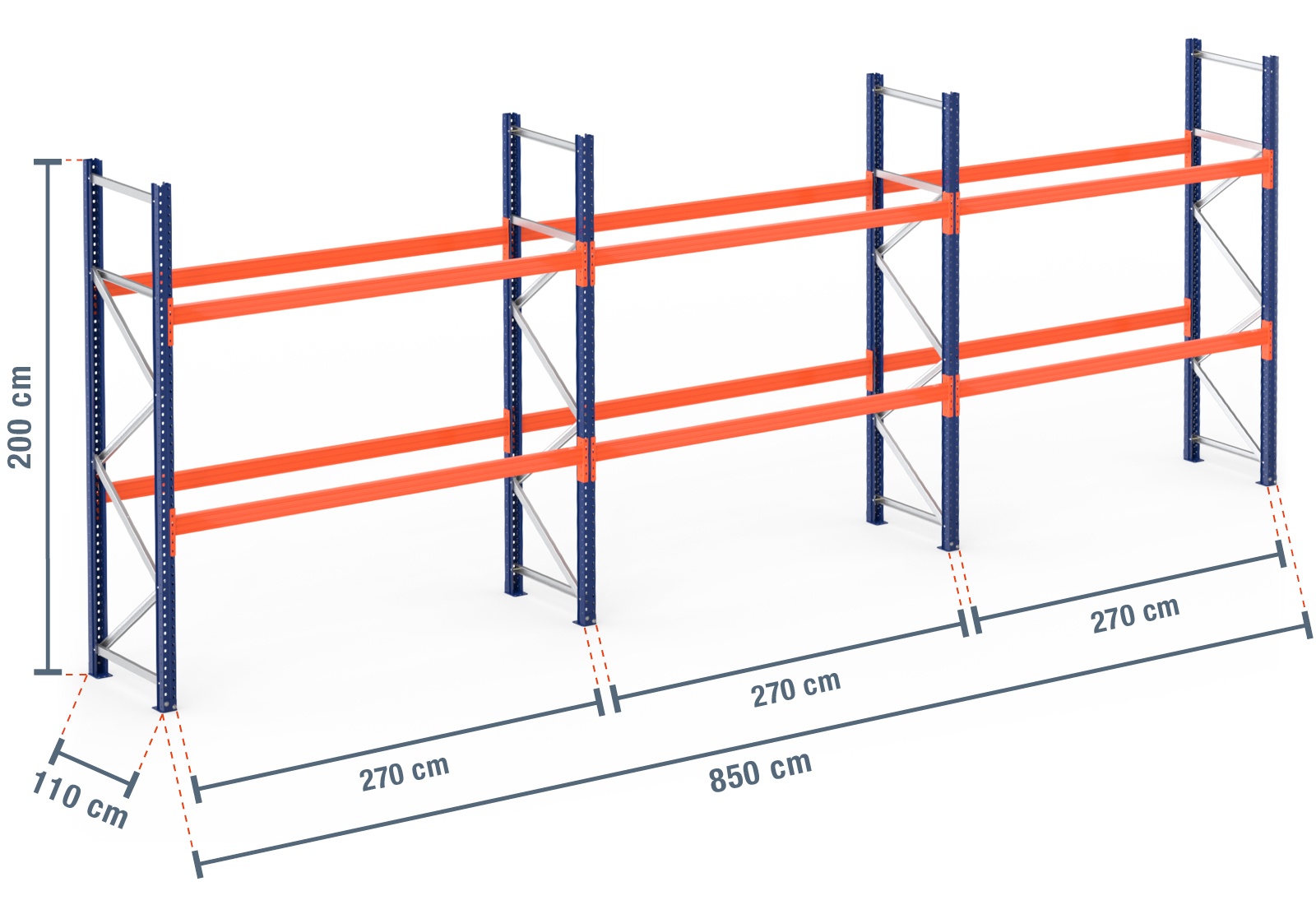

8,5 m pallet rack PR9000 / 110 cm deep / 2 m high / 2 levels for 27 euro pallets
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
(395)

Discounts of up to 10% on the value of your cart!
£ 2,000
3 %
£ 5,000
5 %
£ 10,000
10 %
Technical data & downloads
Article No. 1045
  • Model
    PR9000
  • Max. Load
    1.000 kg
  • Number of levels
    2
  • Rack layer
    without
  • Surface
    painted
  • Width
    8.500 mm
  • Depth
    1.100 mm
  • Height
    2.000 mm
  • Max. Load per field
    9.000 kg
  • Max. Load per level
    3.000 kg
  • Max. Load per pallet
    1.000 kg
Delivery volume
  • 4 x upright PR9000 2 m high / 110 cm deep incl. strutting, unit load capacity: 9.000 kg
  • 12 x beam PR9000 270 cm wide incl. safety pins, compartment load capacity: 3000 kg
  • Assembly material
  • Load capacity labels in accordance with German DGUV 108-007 specification (formerly BGR 234)
  • Assembly instructions
  • 5 years warranty
  • Holds heavy loads of up to 9.000 kg per unit without problems
  • Complete pallet rack comes in a high-quality finish
  • Large storage area thanks to the 2 levels and 3 units
  • Bright blue and orange colours for maximum safety

The TOPREGAL pallet racks PR9000 not only offer an extra-high load capacity but also feature a modular and flexible design. This complete solution is tested at a max. load of 3.000 kg per cross beam level in accordance with DIN EN 15512. It therefore has a max. unit load capacity of 9.000 kg and can be loaded with 1.000 kg per pallet.

The beams are powder-coated in bright orange for safety in the workplace. They are simply attached to the rack uprights thanks to the plug-in design. Additional safety pins ensure safety by preventing the cross beam from being accidentally lifted out. The pallet rack uprights are made from two powder-coated upright profiles in blue. The front and rear upright profiles are screwed together with cross struts and diagonal struts for extra stability. For additional security, 2 foot plates per rack upright are mounted at the bottom ends and secured to the floor using  bolt anchors. This means our modular pallet racking can be customised while also being highly secure as it is fixed to the floor.

Modular design for customisation

The flexibility of the racking is an extremely interesting feature. The cross beams can be attached at any height in increments of 50 mm to create different sizes of shelf compartment. Our configurator also allows you to combine different compartment widths and racking heights to meet individual needs. Attachments in the form of additional shelf compartments measuring 180 cm, 270 cm and 360 cm wide or a worktable can be added later. It is also possible to attach additional levels at individual heights.

It’s no secret that TOPREGAL is confident in its pallet racking. For every rack we sell, we offer a five-year guarantee.

For our pallet racks, we also offer shelf supports made of wood, wire mesh, mesh and steel for an optimal storage solution that meets your needs.

Quick and easy assembly

All assembly material such as nuts, screws, bolt anchors, foot plates and all small parts required for assembly are included in the price and delivery. If you have any problems with the design or testing of your new pallet racking, we also offer professional rack assembly and inspection in accordance with DIN EN 15635.

Safety & protection equipment and useful accessories for this type of rack, such as collision protection, galvanised mesh shelves or push-through protection, can be found in our webshop.

Discover the versatile pallet racking from TOPREGAL.

Notes

Important information

All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (DGUV Rule 108-007 / BGR 234) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.

 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
(ᴓ 4.89 / 5.00)
Our independent rating partner "Trusted Shops" has established various measures to ensure that the ratings shown here only come from consumers who have actually purchased the products. A detailed description of the measures can be read at Trusted Shops.
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
06.12.2023 based on Art. No. 61259
TOP
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
29.11.2023 based on Art. No. 59914
everything OK For storing goods
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
15.11.2023 based on Art. No. 151733
As expected!
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
02.11.2023 based on Art. No. 2258
Very good
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
17.10.2023 based on Art. No. 59410
Everything you need! Good quality!
Read original
Frequently asked questions
Questions about the product
What is the field load and what is the shelf load?

The maximum weight that a rack can carry in total is called the bay load (C). However, the rack's own weight does not count towards this (the storage rack has a bay load of 2000 kg).

The maximum weight that can be carried by a single shelf is called the shelf load (B) (the storage rack has a maximum shelf load of 500 kg).

The sum of the shelf loads (B), however, must not exceed the bay load (C). A prerequisite (for the weight specifications) is basically the even distribution of the loads. Point loads (A) are the forces acting on the floor at one point, also known as concentrated loads.

The figure shows point load (A), shelf load (B) and bay load (C) using the example of a storage rack.

Regal Fachlast

What payment options are available?

We offer among others the following payment methods:

  • ProForma Invoice
  • Credit and debit cards
  • Paypal

For more information on how to process each payment method, please see our detailed page.

What do I need to unload the goods and how will they be delivered?

The goods are usually delivered on a truck with side unloading. In this case, the shipment must be unloaded from the vehicle with the help of a forklift or a lifting device with sufficient lifting height. Alternatively, the goods can also be picked up manually from the vehicle.

You can find detailed information about the shipping process here.

Is it necessary to fix my shelves in the floor or on the wall?

Our racks must not be fixed to the wall. According to the standards DGUV 108-007, DIN EN 15512 and DIN EN 15635, floor anchoring of pallet racks is mandatory. For storage racks, floor anchoring is required if the depth/height ratio is greater than 5:1. If the ratio is less than this, no fastening is required. Please note: Our spacers are exclusively intended for parallel positioning of our racks.

What is the difference between PR4500, PR9000 & PR15000?

Our 3 pallet rack models PR4500, PR9000 & PR15000 differ mainly in the load capacity for light, medium & heavy loads. Here the material thickness and dimensions of e.g. the upright profile, cross beams and foot plates differ. The construction of the three models is identical and our accessories are compatible with each other.

The model designation refers to the maximum field load of the individual systems:

  • Pallet rack PR4500 - Bay load (max.): 4500 kg / Shelf load (max.): 1500 kg
  • Pallet rack PR9000 - Bay load (max.): 9000 kg / Shelf load (max.): 3000 kg
  • Pallet rack PR15000 - Bay load (max.): 15000 kg / Shelf load (max.): 4500 kg

This corresponds to a maximum load per pallet of 500 / 1000 / 1500 kg.

Can I arrange the individual shelves of the pallet racks freely in height?

The individual levels can be hung or attached individually as desired in a grid spacing of 5 cm.

The desired shelf dimensions cannot be found. Do I also receive shelves in individual sizes?

Of course we also offer shelves in individually adapted dimensions. Please send us an inquiry by e-mail to info@topregal.co.uk or call our customer hotline 01495 707222.

You can find our contact form here.

Do I need additional parts for the assembly of my ordered goods?

We supply all complete offers as well as individual parts including all material required for assembly.

No additional mounting material is required.
