Packing table MFP1000 1,2 m / 60 cm Depth / 2 m Hight / 40 cm height-adjustable / incl. multiplex boards
- Modular system for maximum customisation
- Multipurpose packing table: Available as a stationary or mobile solution
- Practical stowing of small parts with different tool cabinets available
- Wide range of combination options with racks of the same type
- Modular system for maximum customisation
- Multipurpose packing table: Available as a stationary or mobile solution
- Practical stowing of small parts with different tool cabinets available
- Wide range of combination options with racks of the same type
-
ModelMFP1000
-
Beam length1,100 mm
-
Width1,200 mm
-
Depth600 mm
-
Height2,000 mm - 2,400 mm
-
Max. Load per field500 kg
-
Max. Load per level500 kg

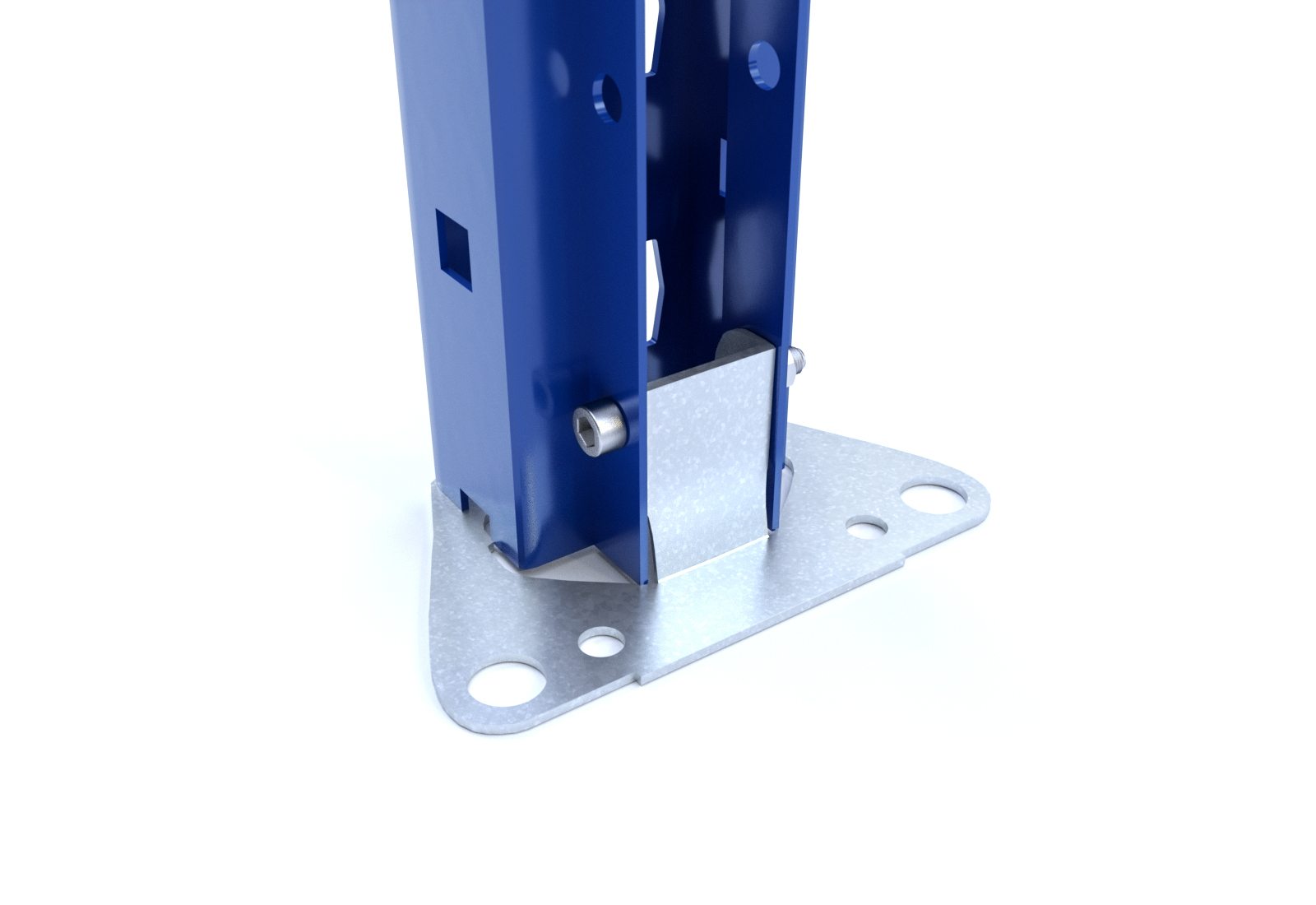

- 2 x uprights 200 cm high with 40 cm height-adjustable foot part / 60 cm deep with a unit load capacity of 2000 kg
- 6 x beams 110 cm wide with a compartment load capacity of 500 kg
- 1 x beams (round) 110 cm wide
- 1 x roller-holder round beam 110 cm wide
- 1 x multiplex board 110 cm x 60 cm made of beech with a material thickness of 25 mm
- 1 x wooden board 110 cm x 60 cm, 25 mm thick
- 1 x wooden kanban board 110 cm x 60 cm deep, 25 mm thick
- 2 x folding storage bins 500 mm x 303 mm x 275 mm
- 1 x plug-in roller holder
- All accessories, such as foot plates, screws, nuts and all material required for assembly
- 5 Years warranty
- Modular system for maximum customisation
- Multipurpose packing table: Available as a stationary or mobile solution
- Practical stowing of small parts with different tool cabinets available
- Wide range of combination options with racks of the same type
The multipurpose packing tables from TOPREGAL have got what it takes. Equipped with practical kanban shelves, lightweight and handy wooden boards or high-quality multiplex boards, you can choose a packing table to meet your individual requirements. This sample product illustrates the possibilities offered by our modular system. Equipped with or without castors, you can create both mobile and fixed storage solutions. All single parts listed in this category can be combined freely and flexibly. It is also possible to adjust or extend your created product at a later time to suit your requirements.
This product contains the following components/modules:
- 1 x basic item (required for all possible variants)
- Packing table upright 2 m high with 40 cm height-adjustable foot part, 60 cm deep with a unit load capacity of 500 kg, colour: Blue
- Beams 110 cm wide with a compartment load capacity of 500 kg incl. safety pins, colour: Orange
- Module item (can be added as required)
- Multiplex board 110 cm wide, 60 cm deep beech 25 mm thick sealed with hard wax oil, compartment load capacity of 500 kg
Application: worktop for the top level of the packing table - Wooden board 110 cm wide, 60 cm deep made of 25 mm-thick chipboard with a compartment load capacity of 500 kg
Application: storage level in the lower area of the rack for stowing packaging material, boxes or work equipment, for example - Kanban shelf 110 cm wide, 60 cm deep made of 25 mm-thick chipboard with a compartment load capacity of 300 kg
Application: angled storage level ideal for using storage bins - Round beam 110 cm incl. safety pins, colour: orange
Application: push-through protection when using kanban shelves - Folding storage bins 50 cm deep, 27.5 cm high, 30.3 cm wide, load capacity up to 28 kg
Application: for storing small parts such as screws and nuts & Small parts of all types - Roller-holder round beam 110 cm wide incl. safety pins, colour: orange
Application: used as a roller bar for stretch film - Plug-in roller holder for attachment to packing table upright
Application: holder for adhesive tape or packing tape dispenser
- Multiplex board 110 cm wide, 60 cm deep beech 25 mm thick sealed with hard wax oil, compartment load capacity of 500 kg
This packing table has been specially designed for commercial/industrial operations. We offer 5 Years warranty for this product due to its durability and robust finish. The unit and compartment load capacities of the multipurpose packing table are 500 kg with an evenly distributed load. This means the packing table MFP1000 conforms to the industry standard. The outer dimension is 1,2 m, where the usable contact area, known as the inside dimension, is 10 cm shorter.
The orange painted beams on the packing table are the actual load-bearing elements. Their height can be adjusted individually in increments of 25 mm. The product can be adapted and extended to meet your requirements at any time. This is made possible by the modular system from TOPREGAL.
Important information
All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (DGUV Rule 108-007 / BGR 234) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.
