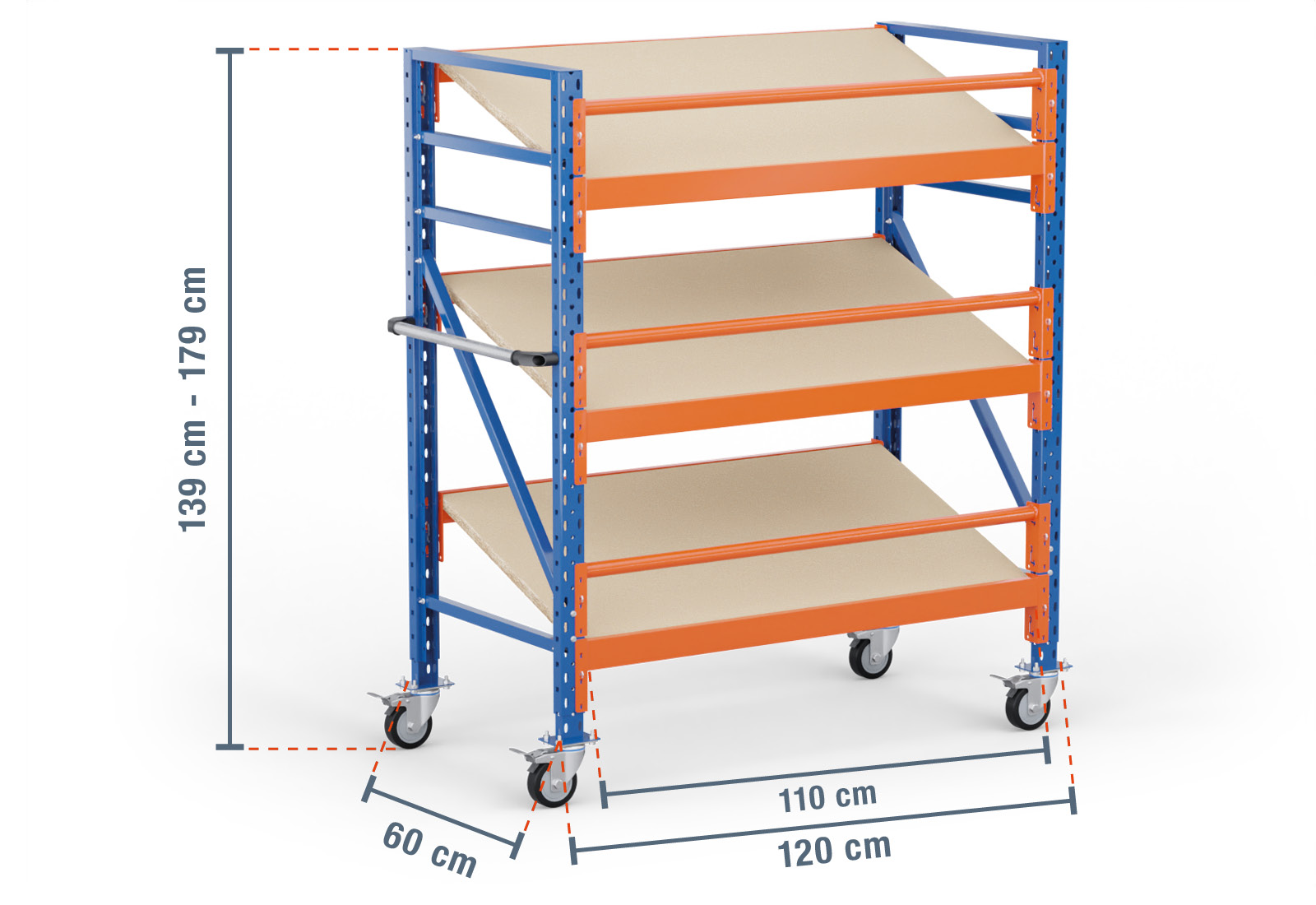

1,2 m mobile worktable kanban rack SR1500 / 60 cm deep / 1.390 - 1.790 mm high / 3 levels / rack layer Wood
- Change location with ease thanks to the practical castors
- Locking brakes provide the necessary stability
- Modular design for increased customisation
- Tilted wooden boards make it easy to see and remove items
- High load capacity thanks to the high-quality finish
- Change location with ease thanks to the practical castors
- Locking brakes provide the necessary stability
- Modular design for increased customisation
- Tilted wooden boards make it easy to see and remove items
- High load capacity thanks to the high-quality finish
-
ModelSR1500
-
Number of levels3
-
Rack layerWood
-
Width1,200 mm
-
Depth600 mm
-
Height1,390 mm - 1,790 mm
-
Max. Load per field500 kg
- 2 x storage rack upright / 1,39 m high / 40 cm height-adjustable / 60 cm deep incl. panels
- 6 x storage-rack single beam 110 cm, compartment load capacity: 300 kg
- 3 x round beam 110 cm for storage and kanban racks
- 0 x round beam 220 cm for storage and kanban racks
- 3 x wooden board for kanban rack 110 cm wide / 60 cm deep
- 0 x wooden board for kanban rack 220 cm wide / 60 cm deep
- All accessories, such as screws, nuts and material required for assembly
- Assembly instructions
- 5 Years warranty
- Change location with ease thanks to the practical castors
- Locking brakes provide the necessary stability
- Modular design for increased customisation
- Tilted wooden boards make it easy to see and remove items
- High load capacity thanks to the high-quality finish
Visible storage of goods: with the mobile kanban rack from TOPREGAL
The angled base optimises removal of parcels and small parts from storage bins and storage boxes. The kanban shelves are angled at 20 degrees, which considerably improves visibility and removal. This saves time during order picking and increases your throughput in the incoming and outgoing goods departments. The rack is easy to transport, opening up a range of possibilities in logistics: This means your packing, assembly and incoming goods stations are not restricted to one site and have the flexibility to be moved if needed. Small parts such as screws or nuts are just as easy to move from place to place as the goods to be picked.
The outer dimension of this mobile kanban rack is 1,2 m, where the usable contact area, known as the inside dimension, is 10 cm shorter. The maximum load capacity of a shelf compartment is 300 kg and the unit load capacity (maximum load between two rack uprights with an even weight distribution) is 500 kg.
Flexible and modular: the kanban rack from TOPREGAL
This mobile kanban rack from TOPREGAL comprises 3 levels, each of which is equipped with an angled wooden shelf. One level also has two stepped beams, which are the actual load-bearing elements, and a round beam used as fall protection. These beams are painted in orange and can be attached at individual increments of 50 mm. This improves the ergonomics of your rack and allows you to configure your compartments to be an optimal size.
The mobile rack uprights each comprise two blue painted upright profiles. The two mobile castors with locking brake provide the necessary flexibility. Matching panels are connected to the upright profiles to improve occupational safety.
The total height of the mobile kanban rack can be varied by 40 cm, between 1.390 - 1.790 mm. Only the insertion height of the foot part has to be adjusted. This allows you to optimise the height of your rack for your application. Thanks to the modular design of our storage racks, this rack type can also be extended and adjusted.
Important information
All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (DGUV Rule 108-007 / BGR 234) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.
