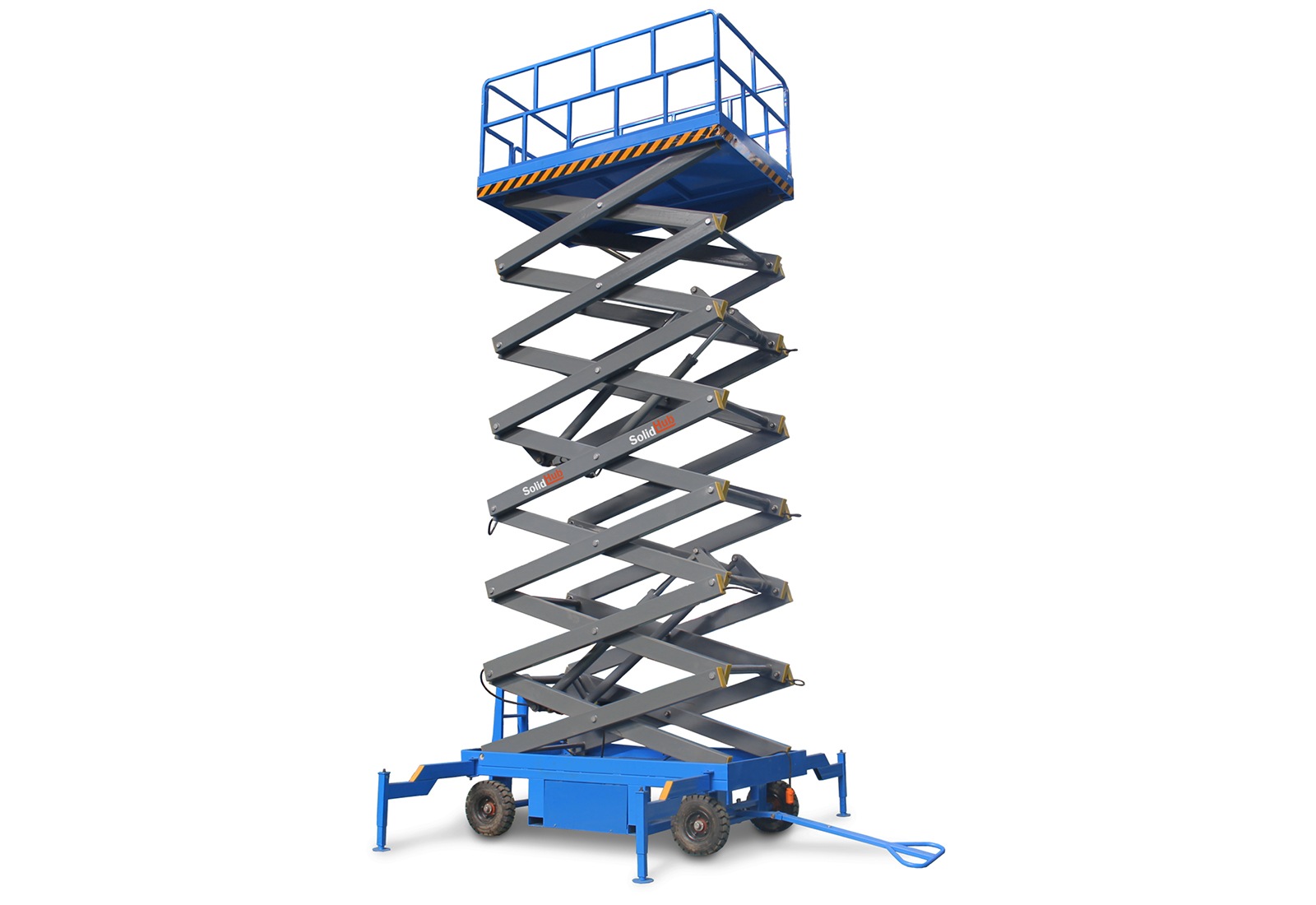

SBE1000 semi-electric scissor lift, WLL 500 kg, lifting height 10.000 mm, SolidHub

Semi-electric scissor lift SBE1000 - work at height quickly, safely and comfortably - indoors and outdoors

Thanks to the maximum lifting height of 10.000 mm, repairs or repairs can be carried out at a working height of up to 12.000 mm.

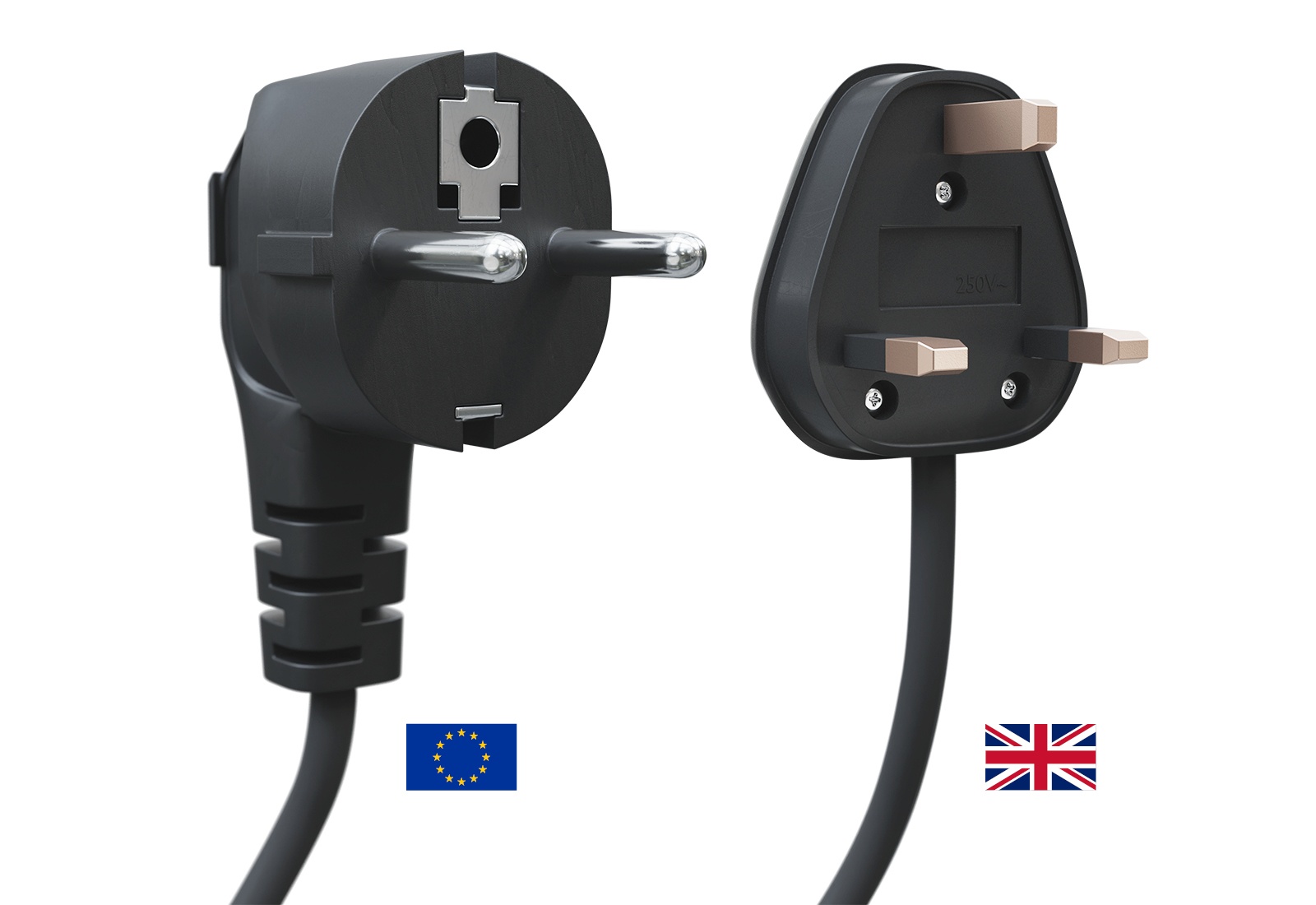

The powerful 220 V / 2.200 W electric motor allows the platform to be raised to a maximum height of 220 V / 2.200 W For this purpose, the working platform is simply connected to a standard 230 V socket using the extension cable. Operation is via the two control units either on the ground or on the working cage. The controls raise and lower the work basket in 84 mm/s.

The platform, with a surface area of 2,100 mm x 830 mm, offers sufficient capacity for two persons and various working utensils up to a maximum weight of 500 kg. The 1.1 m high handrail provides additional safety. For optimum protection, a safety harness can be attached at several points on the scaffold.

Safe access to the platform is possible either via the attached ladder on the narrow side of the working platform or via the gate access.

With the laterally attached, fold-out supports, also called outriggers, and the individually height-adjustable integrated foot sections, you always set up the working platform in a balanced manner - the integrated spirit level helps with alignment. We recommend, as is usual with working platforms, to underlay the supports with suitable pads. The safe, balanced set-up of the semi-electric scissor lift is very important to avoid causes of accidents in improper use (e.g. due to tipping).

A manual emergency lowering switch ensures that the scissor lift is safely retracted even without a power connection. The emergency lowering is carried out via the lowering valve on the lifting motor (floor area), therefore it is important that the working platform is never used alone.

When folded, the scissor lift measures 1.350 mm x 1.530 mm x 2.250 mm.

The fork-lift attachment makes it easy to transport the platform.

This compact height-access technology is a perfect fit in any sector, whether industry, construction, trade, building management or exhibition and event halls.

Please inform yourself about the national regulations applicable in the country of use before commissioning. Commissioning and the provision of suitable personnel for this task are the responsibility of the person commissioning the device.
