4,6 m kanban rack SR1500 / 60 cm deep / 4 m high / 5 levels / rack layer Wood

 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
(6)
Discounts of up to 10% on the value of your cart!
£ 2,000
3 %
£ 5,000
5 %
£ 10,000
10 %
Technical data & downloads
Article No. 8603
  • Model
    SR1500
  • Number of levels
    5
  • Rack layer
    Wood
  • Surface
    Painted

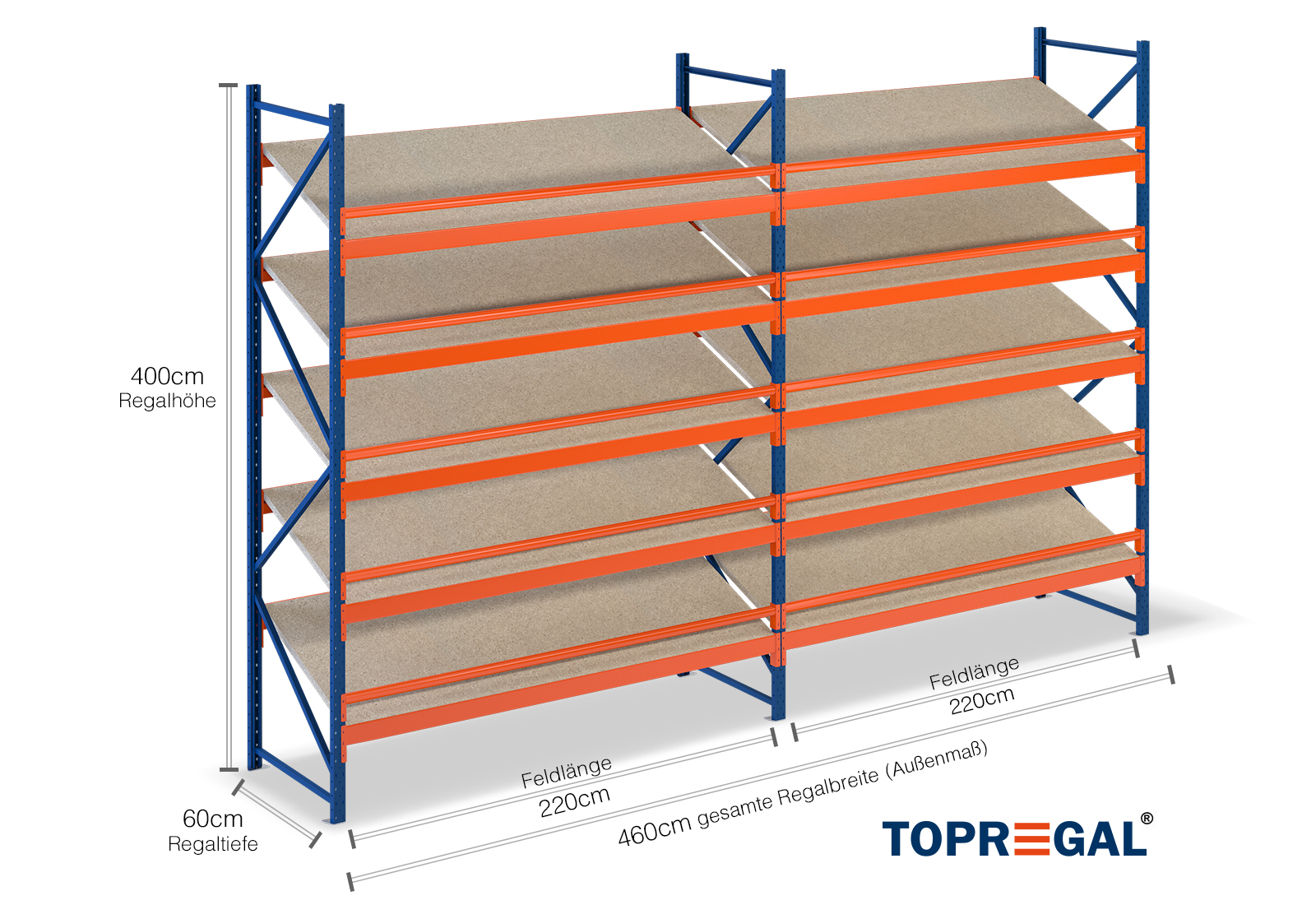

  • Width
    4,600 mm
  • Depth
    600 mm
  • Height
    4,000 mm
  • Max. Load per field
    1,500 kg
  • Max. Load per level
    300 kg
  • Range of application
    Indoor
Delivery volume
  • 3 x upright 4 m high / 60 cm deep with a unit load capacity of 1.500 kg
  • 20 x beam 220 cm wide with a compartment load capacity of 300 kg
  • 10 x round beam 220 cm wide
  • 10 x shelf 220 cm x 60 cm, 25 mm thick
  • All accessories such as screws, safety pins, nuts and all material required for assembly are included
  • Load capacity labels in accordance with German DGUV 108-007 specification (formerly BGR 234)
  • Assembly instructions
  • 5 Years warranty
  • Highly versatile thanks to modular system
  • Compatible with other rack types, such as tyre and storage racks
  • Rapid picking as goods are clearly visible
  • Enables visible storage of small parts in combination with storage bins
  • Quick and easy assembly in just a few steps

The TOPREGAL kanban rack features an attractive appearance and is easy to assemble, with a durable and robust design. This rack type is also incredibly versatile. The width of the kanban rack can be increased at any time. The number of units in this fully pre-configured kanban rack is 2. The height of the 5 angled levels can be adjusted in increments of 50 mm using the practical stepped beams. This settings can then be adjusted later. The individual beams are easily attached to the uprights and secured using safety pins to prevent them accidentally being lifted out. A round beam is attached at each level as fall protection at the front.

The benefits of angled shelves are clear

This arrangement allows small parts to be stored in a visible way. This gives warehouse staff an overview of stock, allowing them to retrieve items from the rack efficiently as these items slide from the back to the front. This ensures optimal use of the storage area.

This kanban rack has a compartment load capacity of up to 300 kg. The unit load capacity, corresponding to the total load capacity with an evenly distributed load between two uprights, is 1.500 kg. The shelves are made from high-quality wood. Measuring 4,6 m x 60 cm x 4 m, the kanban rack with its 5 levels is ideally equipped to make your everyday work in the warehouse easier.

All accessories such as screws, nuts, safety pins and all material required for assembly are included in the price and delivery volume.

......read more
Notes

Important information

All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (DGUV Rule 108-007 / BGR 234) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.

 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
