Solar carport add-on bay SPG5-A incl. 12 solar modules and rain gutter, Aluminum, drive-through height 2.200 mm, SoloPort
- Environmentally friendly generation of energy for charging your electric vehicle
- Quick and uncomplicated assembly in just a few steps
- Thanks to its independence from the grid, the solar carport can be set up in almost any location
- Particularly easy expansion of the solar carport with this add-on panel
- Simple modular system
- Environmentally friendly generation of energy for charging your electric vehicle
- Quick and uncomplicated assembly in just a few steps
- Thanks to its independence from the grid, the solar carport can be set up in almost any location
- Particularly easy expansion of the solar carport with this add-on panel
- Simple modular system
-
ModelSPG5-A
-
VersionCar carport
-
Peak power solar module (STC)420 Wp
-
Output power solar modules5 kW
-
ColourSilver
-
Width3,640 mm
-
Depth6,840 mm
-
Height3,540 mm
-
Assembledno
-
Protection classIP68
-
Range of applicationOutdoor
-
Clearance height2,200 mm
-
Entry height2,650 mm
- 1 x Solar carport mounting frame SPG5-A
- 12 x solar module
- Environmentally friendly generation of energy for charging your electric vehicle
- Quick and uncomplicated assembly in just a few steps
- Thanks to its independence from the grid, the solar carport can be set up in almost any location
- Particularly easy expansion of the solar carport with this add-on panel
- Simple modular system

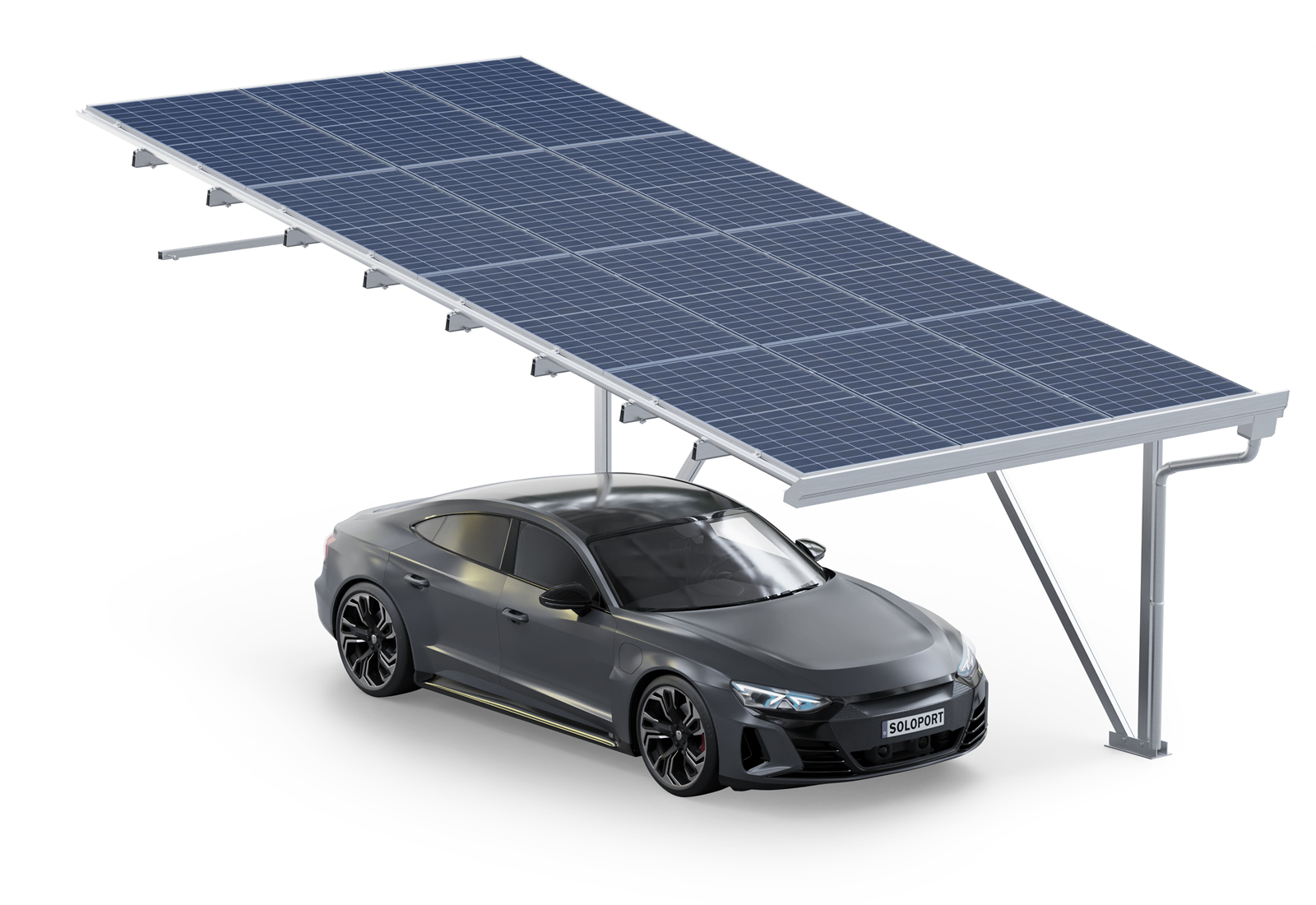

The solar carport SPG5-A
The solar carport by SoloPort has been manufactured to the highest quality standards and, thanks to its uniqueness, is the market first in the automotive shelter sector. All common electric vehicles can be charged with green energy completely independent of the grid.

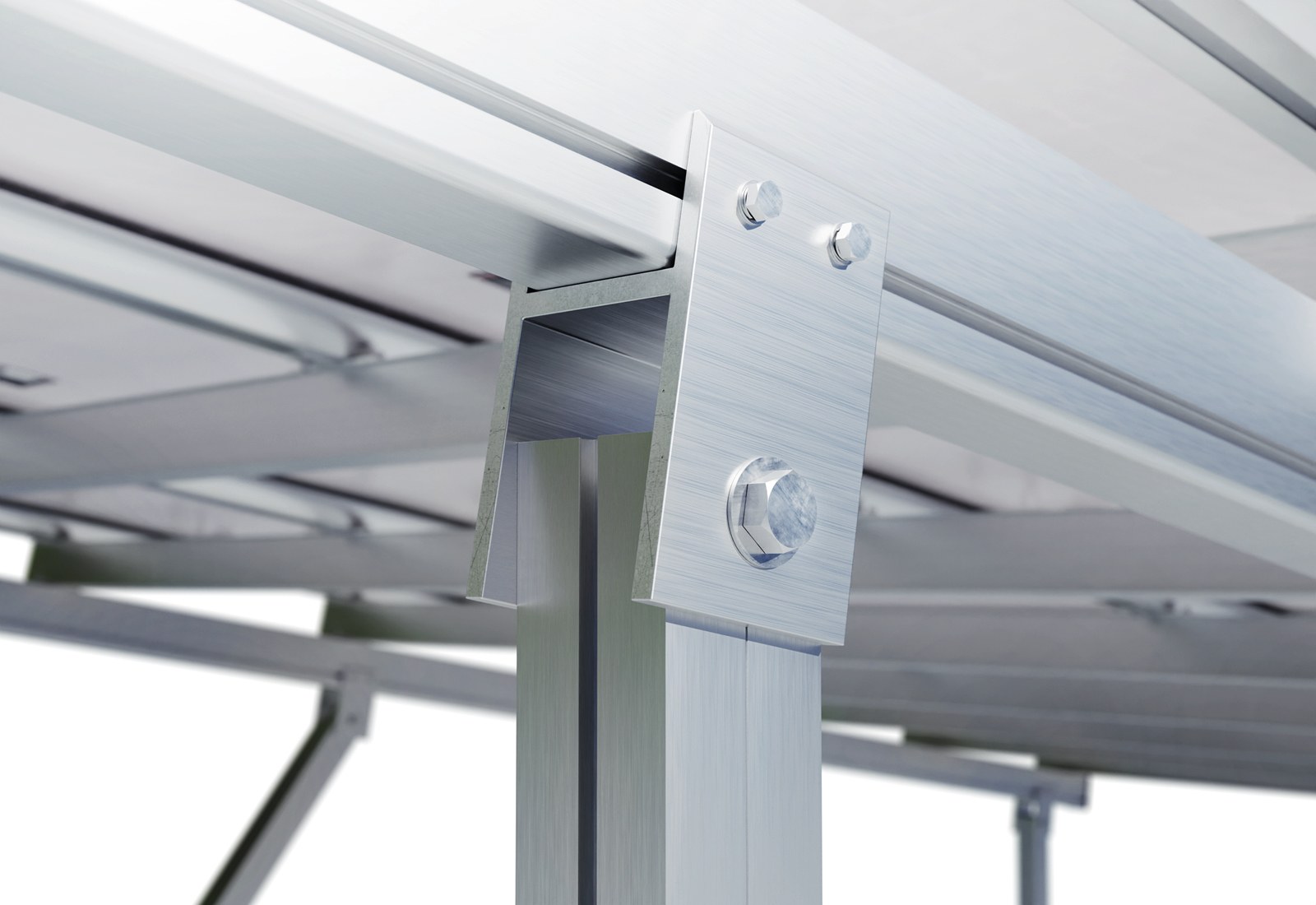

The frame construction of the carport consists of particularly durable aluminium profiles and offers your car protection from wind and weather with a drive-in height of 2.650 mm and a width of 3.640 mm, as well as a length of 6.840 mm. The drive-through height is 2.200 mm. The profiles are firmly fixed in the ground with bolt anchors. They can be screwed directly into asphalt and concrete surfaces; for other ground surfaces, an appropriate foundation is required.
Simply add on and expand
This is possible with this extension panel for the SPG5-A solar carport from SoloPort. Thanks to the modular system of the SoloPort solar carports, they can be easily extended. This allows you to create more and more parking space in your environmentally friendly vehicle fleet.
To use the electricity generated by the solar panels to charge your car, you can connect the carport to your home network. Have this done by an electrician. You will need an inverter and a wallbox to utilise the green electricity directly. These are not included in the offer.
Quality standard that guarantees you safety
With this solar carport from TOPREGAL, you are not only opting for a sustainable solution, but also for a quality-conscious one. You are consciously choosing a trading partner based in Germany who is available to you at all times. Our excellent customer service ensures that a satisfactory solution is quickly found for you in the event of a warranty claim. You can rely on receiving a quality product that fulfils all safety standards.
We offer:
- 20-year performance guarantee on the solar modules
- 10-year product guarantee on the solar modules
- 5-year guarantee on the aluminium carport structure
- 1 year guarantee on all other components
In Germany, depending on the federal state and district, a building notification or building permit may be required. The basis for this is the applicable state building regulations. Please enquire with the relevant authorities prior to construction.
We cannot provide any information on legal regulations outside Germany. Please also obtain information here from the public authorities responsible for your project.
End users can purchase the solar carport at www.soloport.com or contact the SoloPort sales team for a quote in German or English. You can reach the private customer sales team at info@soloport.com or +49 7158-9181545.
Yes, as the buyer you are responsible for obtaining all necessary permits for your solar carport. TOPREGAL will assist you by providing you with construction drawings free of charge upon request. Please note that any conditions and fees that may be incurred, such as permit fees, costs for possible surveys, replacement planning and verifiable static calculations, must be borne by you.
We give you a 10-year warranty on the solar panels, a 5-year warranty on the carport frame and a 1-year warranty on all other SoloPort components. Please refer to our warranty terms for more information.
We offer the carports in fixed dimensions that cannot be customized. The dimensions mentioned in the technical data cannot be changed. We also do not offer other materials for the frame construction, except those shown here.
At our three locations in Germany (Baden-Württemberg, North Rhine-Westphalia and Mecklenburg-Western Pomerania), we offer the opportunity to view and purchase the carport directly on site by making an appointment with our SoloPort experts. Please send your appointment request to info@soloport.com.
We offer add-on variants of all carports that can be attached to an existing SoloPort carport to create a double carport or a carport for three vehicles. However, a separate inverter and control cabinet must be connected for the operation of each solar carport.
The carport has a roof/snow load of 80kg/m2 (0,8 kN/m²). Regardless of whether it is a carport for cars or RVs. Attachment bays can also bear the same loads. The wind load is 108km/h, so it can withstand bad weather.

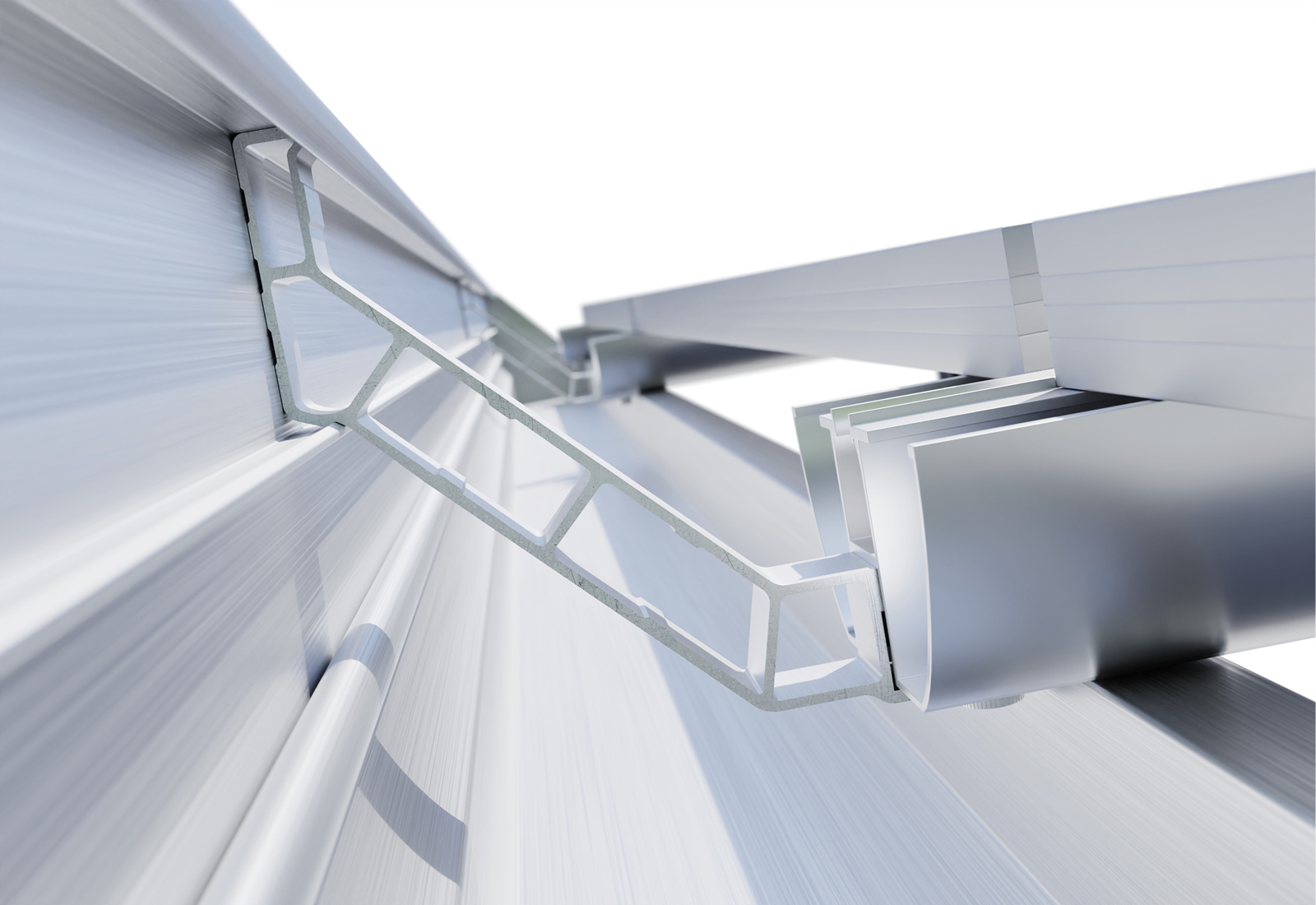

Yes, the module roof is waterproof. Horizontal and vertical gutters are installed below the solar panels to drain rainwater passing through to the lowest point of the carport. Commercially available rain gutters can be installed at this point to divert the rainwater to the desired location.
The solar panels do not have a separate seal between them, so the water can easily drain through the gutters. Of course, if it is windy and raining, it is possible that it will rain in to the sides. From above, the rain is neatly drained away via the gutters.
However, every system has its limits. In heavy rain, it cannot be ruled out that due to the large amount of water, it will sometimes come through the solar roof.
No, we do not offer an assembly service. Like a standard carport, the carport can be easily assembled by 2 - 3 people following our assembly instructions. If you need a foundation that you cannot build yourself, please contact a garden- and landscaping contractor.
