Solar carport add-on bay SP40/5-1A incl. wallbox, control cabinet and rain gutter, Aluminum, drive-through height 2.200 mm, SoloPort
- Environmentally friendly generation of energy for charging your electric vehicle
- Quick and uncomplicated assembly in just a few steps
- Modular expansion of the solar carport with any number of add-on panels
- Simple operation and overview of the charging process via app
- High battery capacity of up to 40 kWh ensures possible charging even in bad weather and at night
- Thanks to its independence from the grid, the solar carport can be set up in almost any location
- Environmentally friendly generation of energy for charging your electric vehicle
- Quick and uncomplicated assembly in just a few steps
- Modular expansion of the solar carport with any number of add-on panels
- Simple operation and overview of the charging process via app
- High battery capacity of up to 40 kWh ensures possible charging even in bad weather and at night
- Thanks to its independence from the grid, the solar carport can be set up in almost any location
-
ModelSP40/5-1A
-
VersionCar carport
-
Peak power solar module (STC)420 Wp
-
Output power solar modules5 kW
-
ColourSilver
-
Width3,860 mm
-
Depth7,100 mm
-
Height3,540 mm
-
Assembledno
-
Protection classIP54
-
Range of applicationOutdoor
-
Entry height2,650 mm
-
Real battery capacity40 kWh
-
Voltage230 V
-
Clearance height2,200 mm
-
Charging Power1.8 kW - 7 kW
-
Usable battery capacity30 kWh
-
Working temperature0 °C - 45 °C
- 1 x Solar carport add-on bay SP40/5-1A incl. wallbox, control cabinet and rain gutter, Aluminum, drive-through height 2.200 mm, SoloPort
- 12 x solar module
- 1 x Switch cabinet incl. wallbox and inverter
- 1 x battery system
- Environmentally friendly generation of energy for charging your electric vehicle
- Quick and uncomplicated assembly in just a few steps
- Modular expansion of the solar carport with any number of add-on panels
- Simple operation and overview of the charging process via app
- High battery capacity of up to 40 kWh ensures possible charging even in bad weather and at night
- Thanks to its independence from the grid, the solar carport can be set up in almost any location

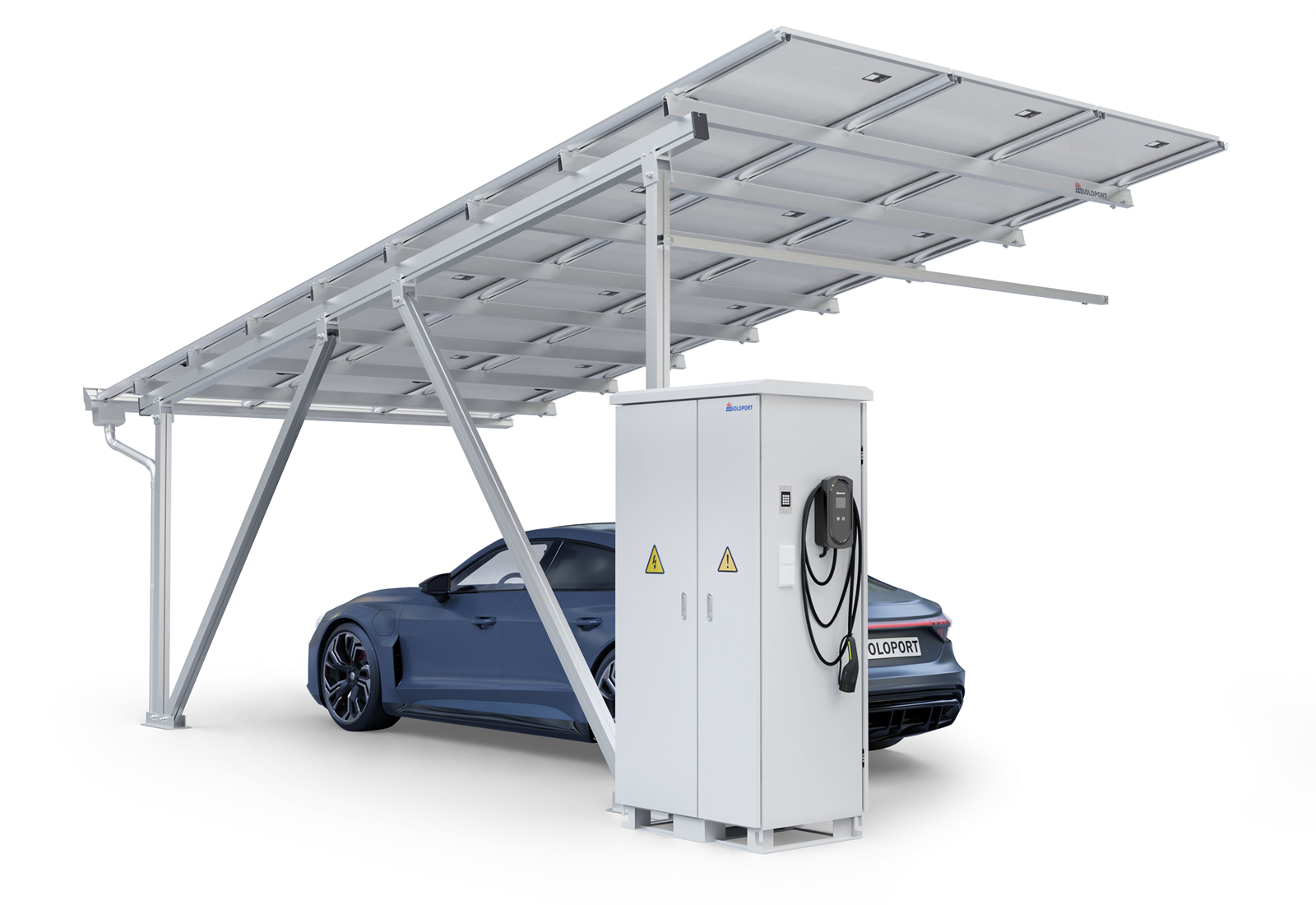

The solar carport SP40/5-1A
The solar carport by SoloPort has been manufactured to the highest quality standards and, thanks to its uniqueness, is the market first in the automotive shelter sector. All common electric vehicles can be charged with green energy completely independent of the grid.

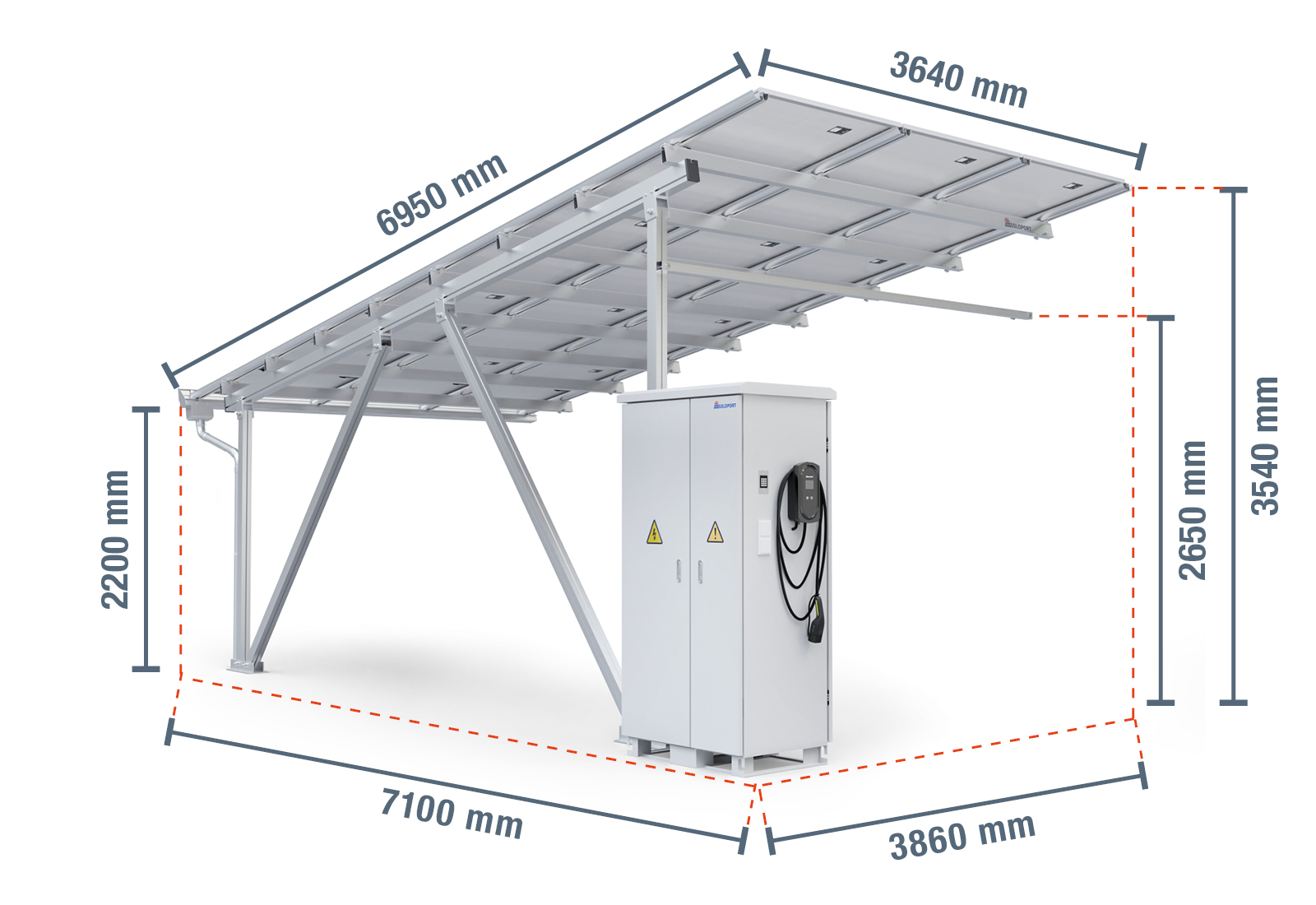

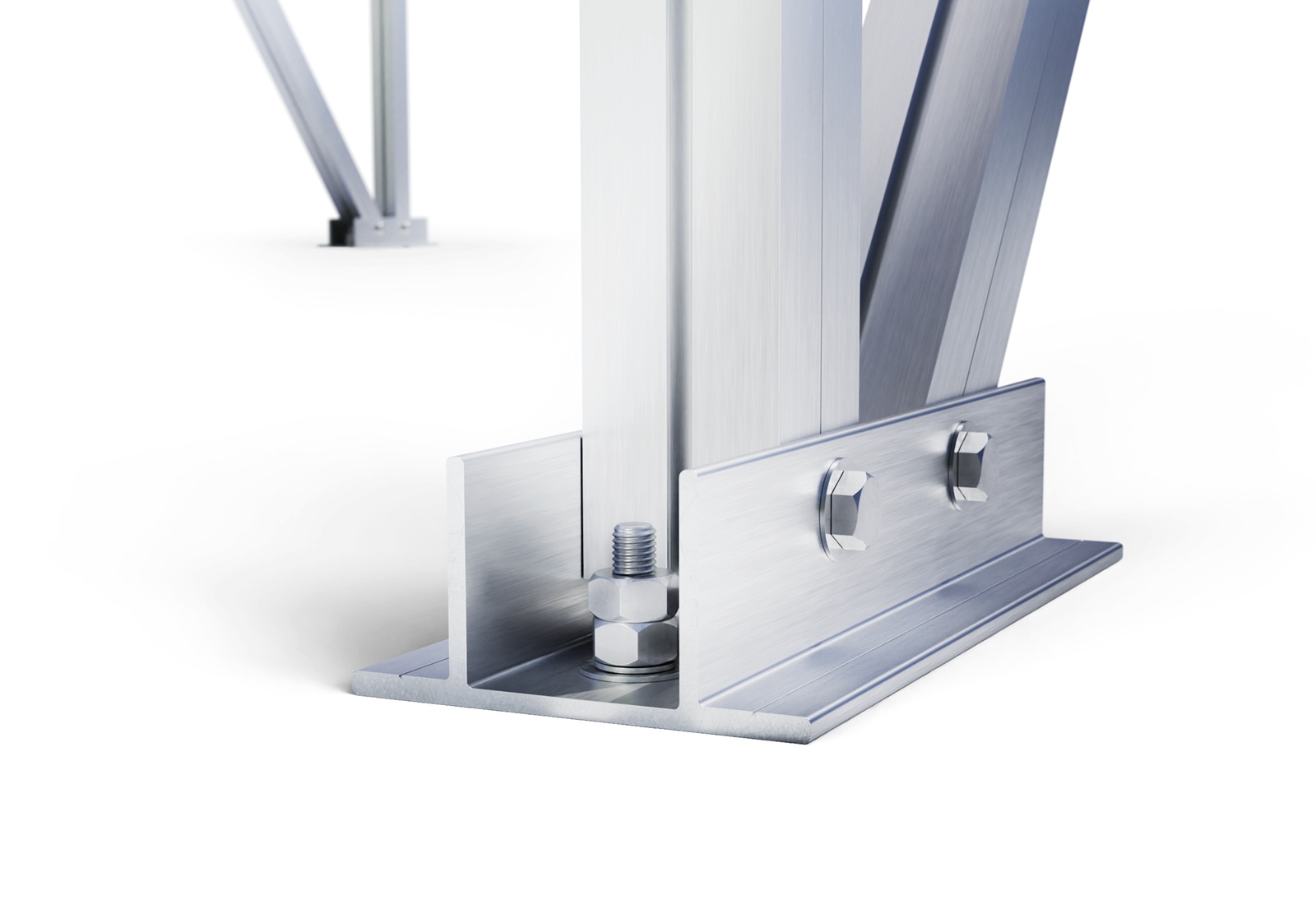

The frame construction of the carport consists of particularly durable aluminium profiles and offers your car protection from wind and weather with a drive-in height of 2.650 mm and a width of 3.860 mm, as well as a length of 7.100 mm. The drive-through height is 2.200 mm. The profiles are firmly fixed in the ground with bolt anchors. They can be screwed directly into asphalt and concrete surfaces; for other ground surfaces, an appropriate foundation is required.
Simple extension thanks to the modular system

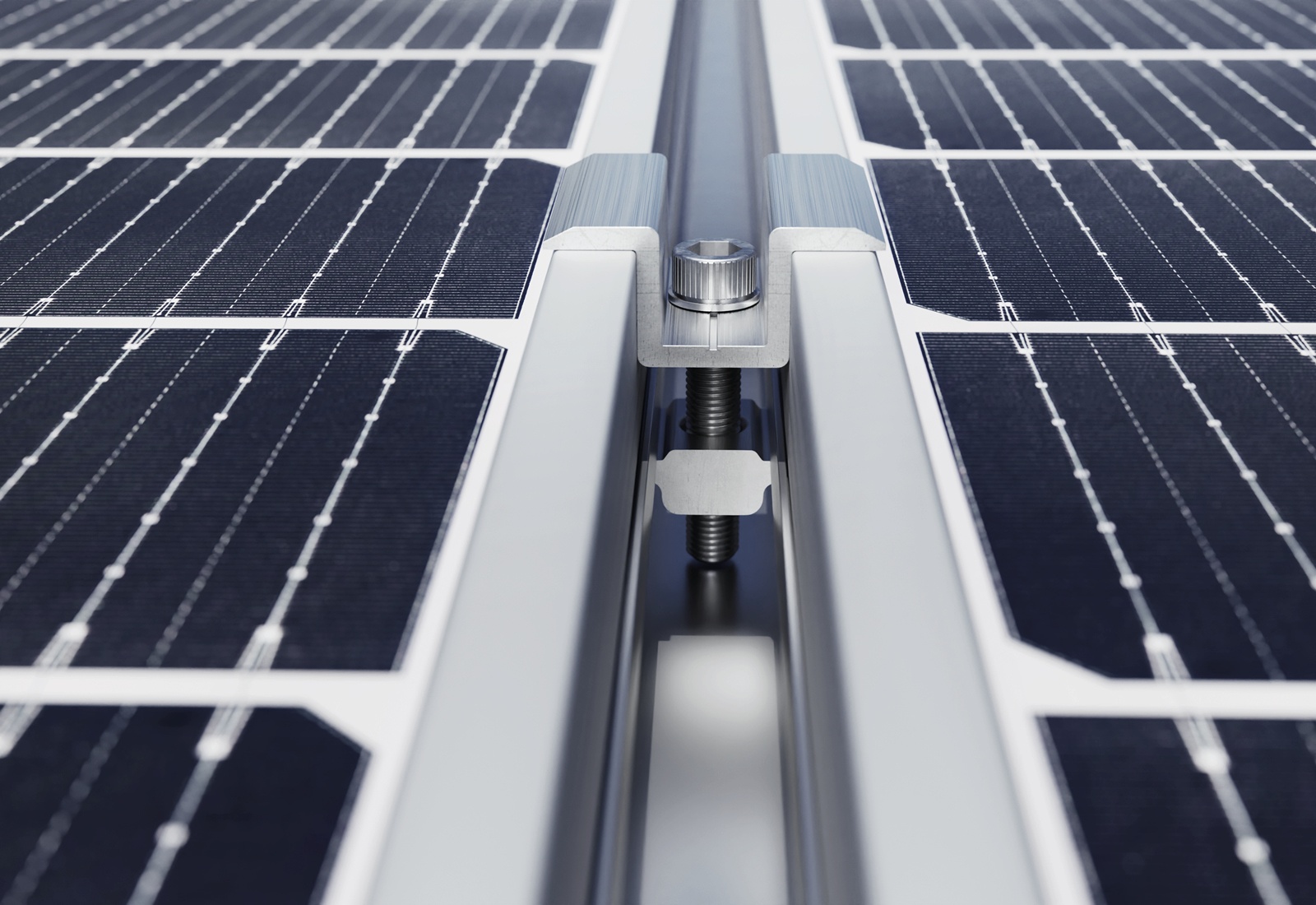

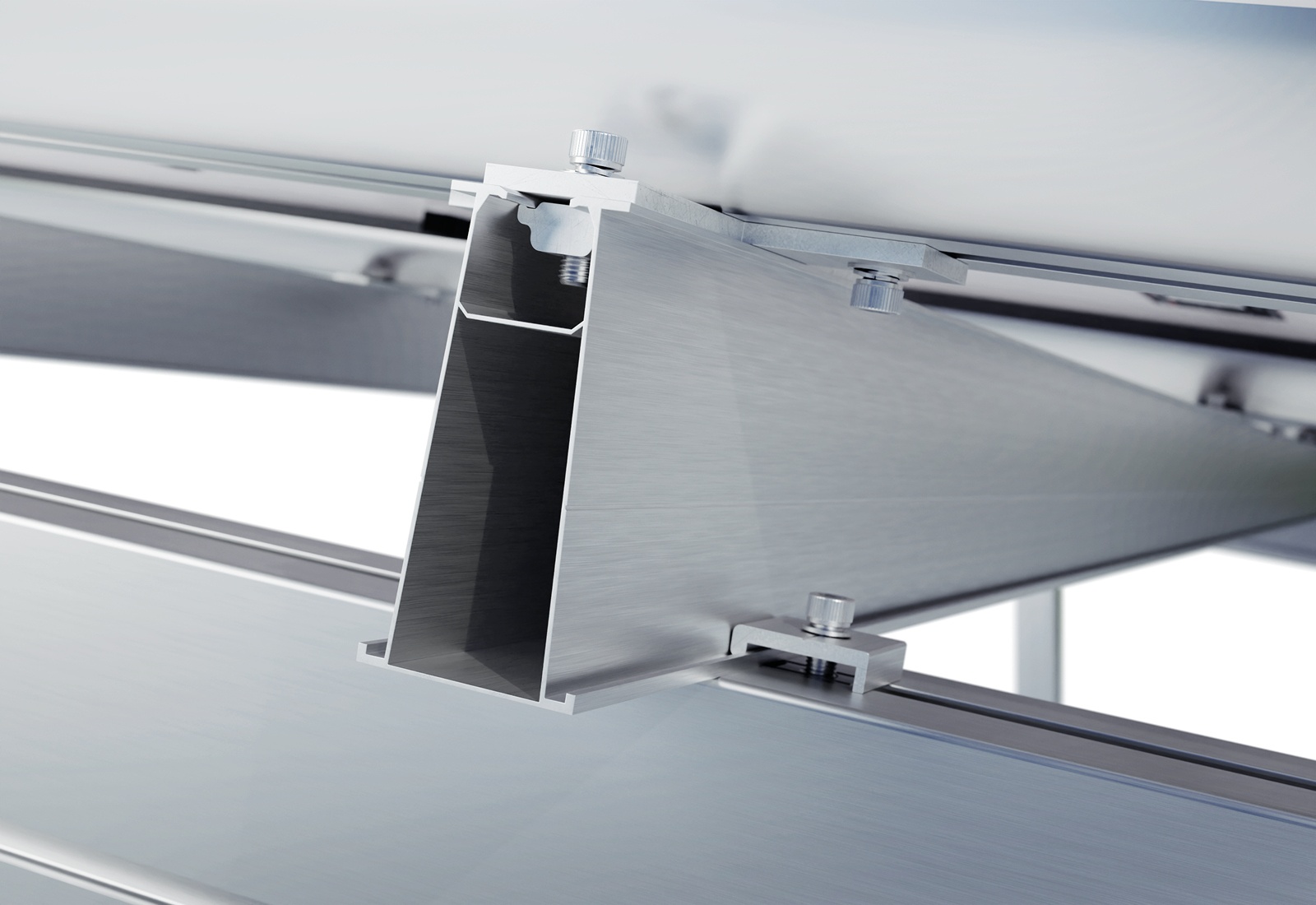

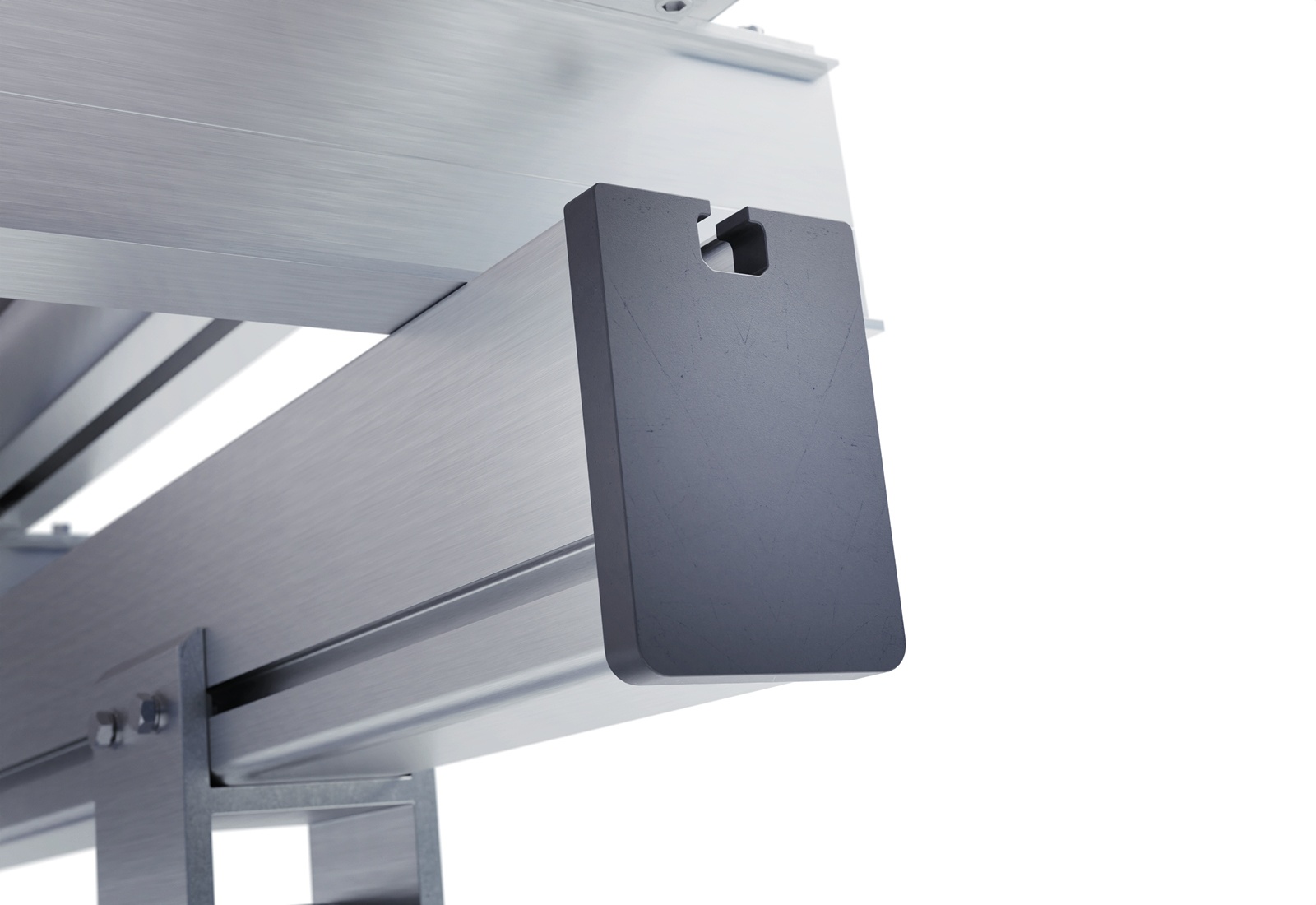

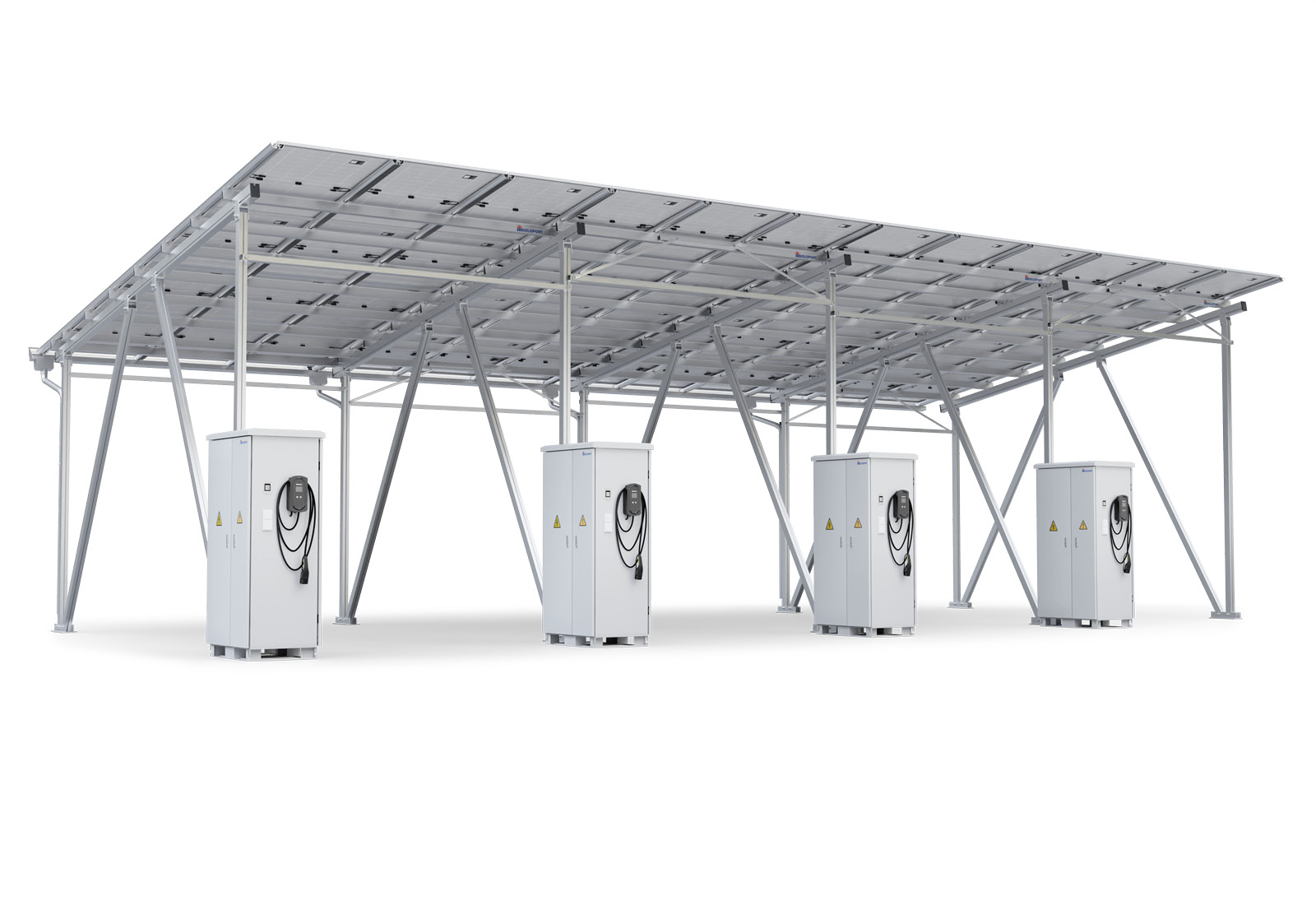

Thanks to the modular system and the flexible clamping connections of the cross and longitudinal beams, the basic field of the solar carport can be extended very easily. This add-on bay for the SoloPort solar carport offers the option of integrating additional charging stations side by side. The add-on panel consists of additional 12 solar modules, a frame that can be attached to the base panel, as well as a control cabinet including wallbox, keypad and inverter. This allows you to expand your green fleet and park another electric vehicle and charge it off-grid at the same time.
SoloPort: Utilising and storing green energy

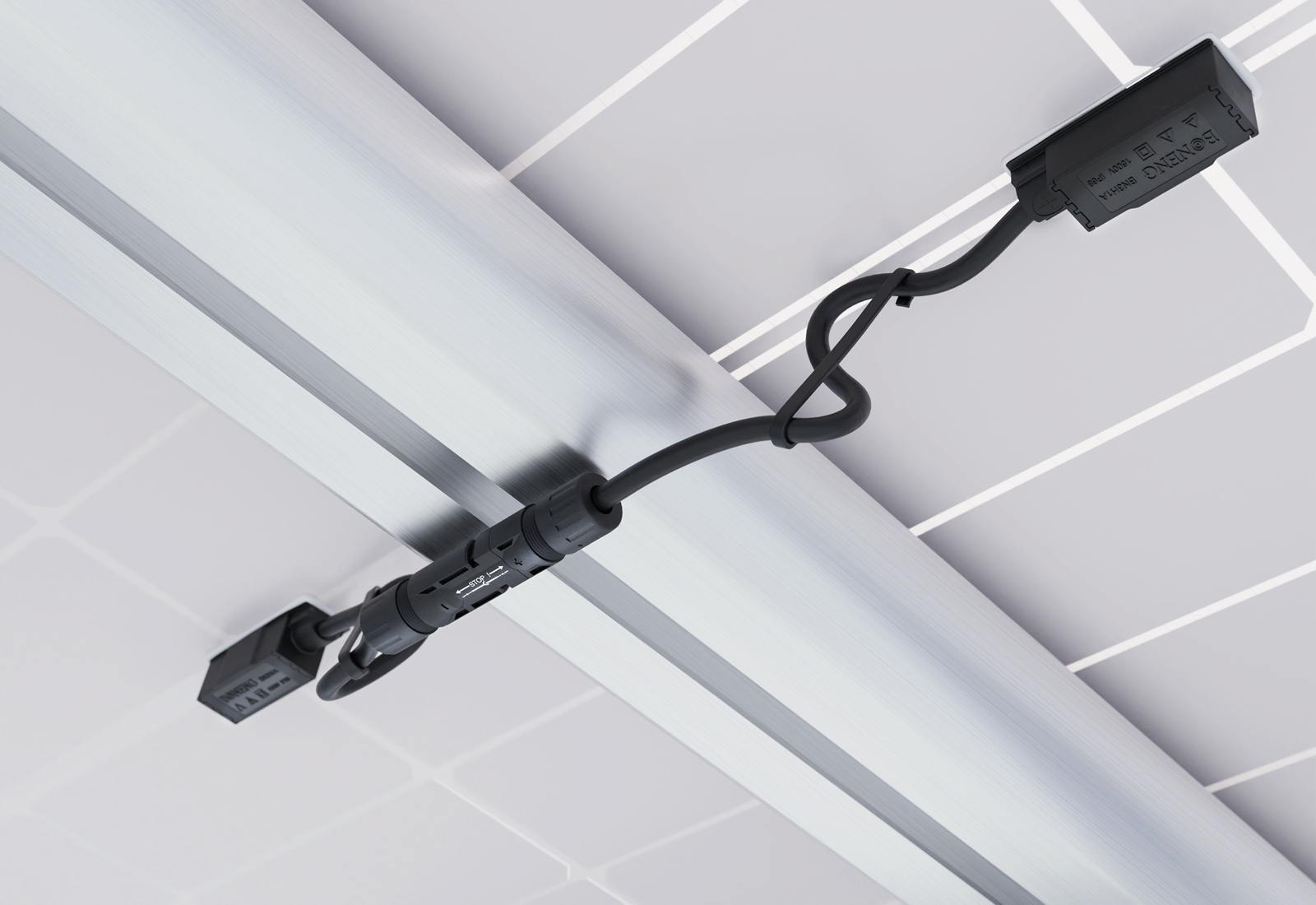

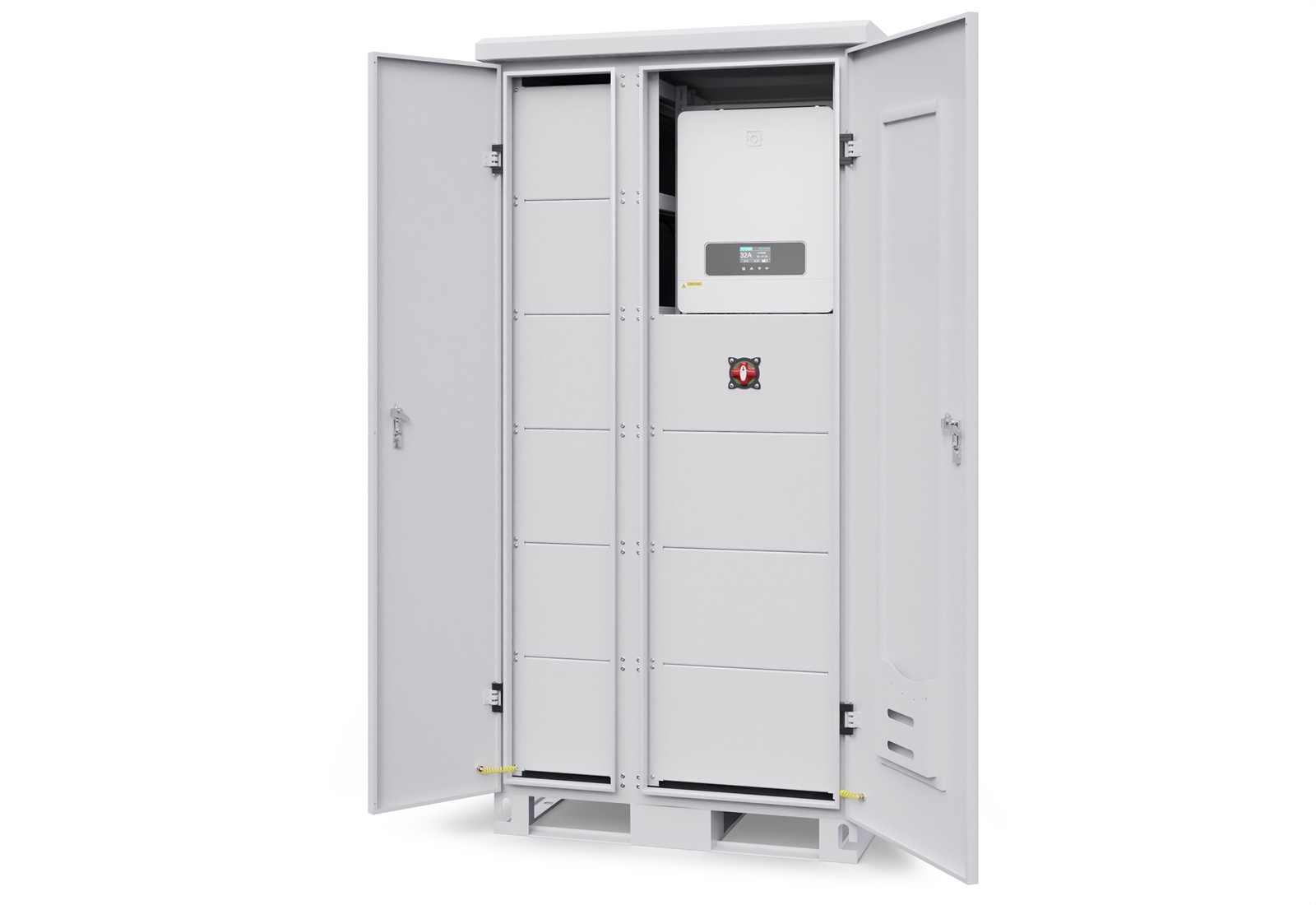

With a power generation of 420 Wp per module, the solar modules ensure a maximum power generation capacity of 5 kWp. The electricity generated by them is transferred to the control cabinet, which contains a 40 kWh high-performance battery storage unit, among other things. The maximum usable capacity is 30 kWh, as an internal mechanism is integrated to protect the battery from deep discharge. The solar carport allows you to charge your electric cars easily both during the day and at night or in unfavourable weather conditions. All technical components are also integrated in the control cabinets, including an inverter and a fuse box. These elements are responsible for controlling and networking the carport and ensure virtually maintenance-free operation.
Simple, flexible operation: the SP40/5-1A add-on carport from SoloPort

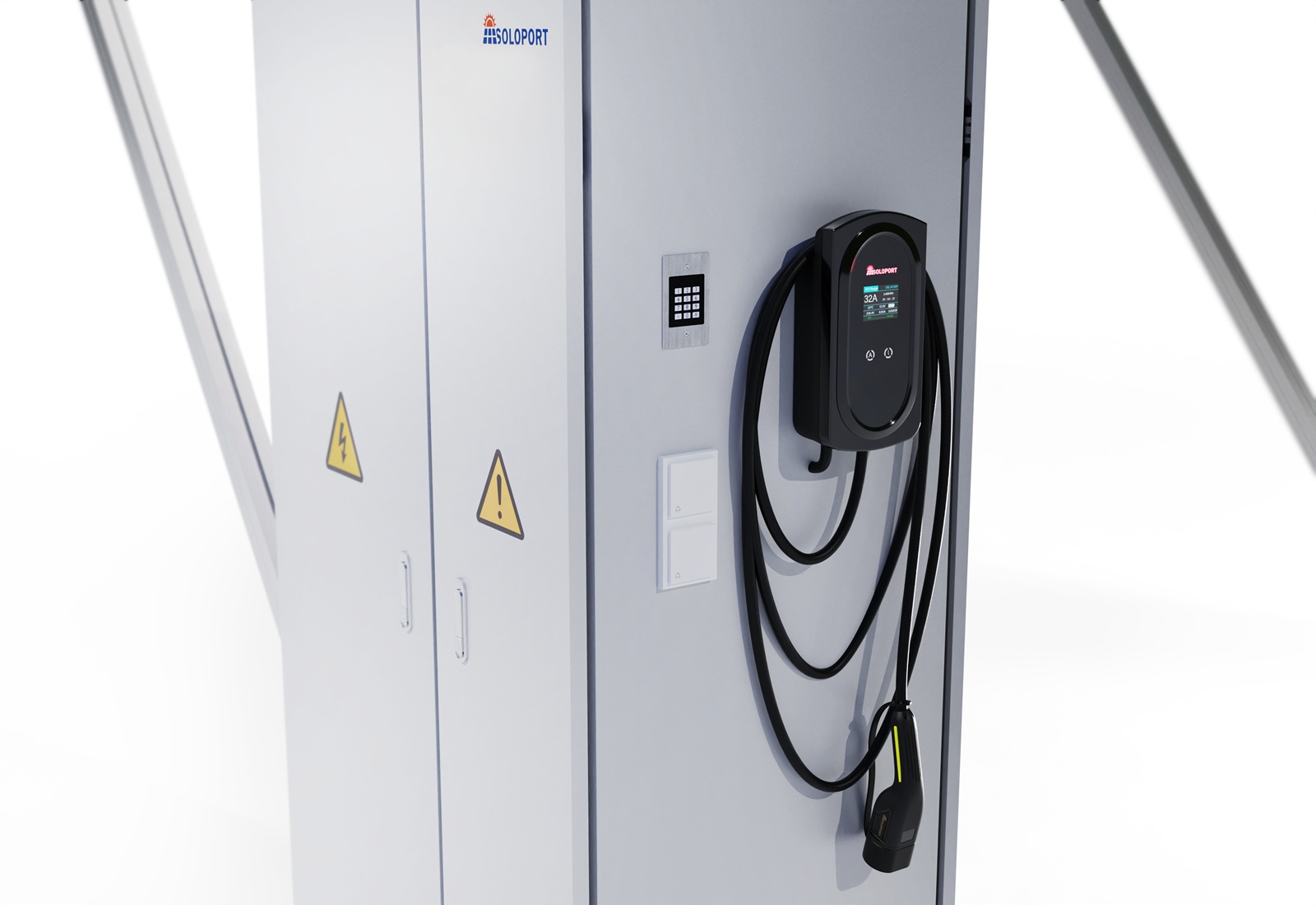

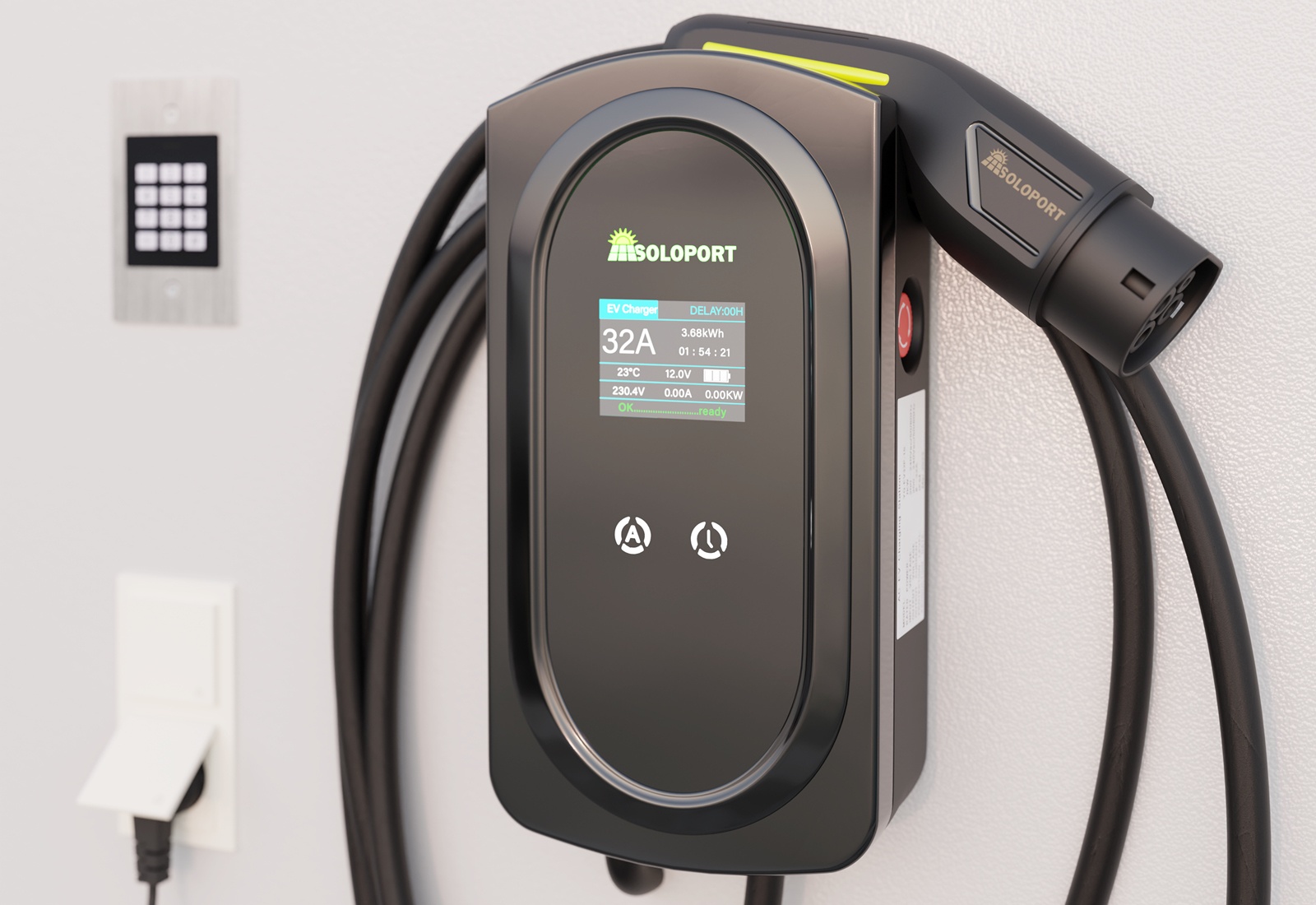

A keypad is attached to the side of the control cabinet, which activates the charging current by entering a code. This prevents unauthorised use by third parties. After activation, the wallbox, which is also attached to the outside of the control cabinet, can be used with a charging capacity of 1,8 - 7 kW. This can be set in seven stages for charging your electric car. There are two 230 V sockets next to the wallbox, which are practical and easy to access. This means that not only your electric car benefits from green electricity, but also other electrical appliances such as hoovers, lawn mowers and other tools. Of course, e-bike batteries and other battery-powered devices can also be charged safely.
With the right app: everything at a glance at all times
With the "SmartESS" app specially developed for the solar carport (available in the App Store or Google Play Store, desktop version also available), it is possible to keep an eye on all important information, such as the current charge status of the battery or the current power generation of the solar modules, as well as many other key figures, regardless of location and time, when the carport's Wi-Fi connection is active. As an alternative to the WLAN connection, an externally available mobile WiFi hotspot can be integrated for the Internet connection. The add-on solar carport SP40/5-1A has an additional control cabinet, which can also be integrated into the system. The consumption and charging data can be viewed individually for each control cabinet.
Fully equipped for safety with the SP40/5-1A solar carport
The SoloPort solar carport also offers you another integrated highlight: a practical LED light with motion sensor. This ensures that the path to the carport is safely and optimally illuminated even in the dark.
Self-sufficient thanks to green electricity: the carport with solar roof
The completely self-sufficient solar carport is an expandable stand-alone system and is not connected to the public power grid, so registration with the Federal Network Agency is not necessary. You also do not need authorisation from the grid operator.
Quality standard that guarantees you safety
With this solar carport from TOPREGAL, you are not only opting for a sustainable solution, but also for a quality-conscious one. You are consciously choosing a trading partner based in Germany who is available to you at all times. Our excellent customer service ensures that a satisfactory solution is quickly found for you in the event of a warranty claim. You can rely on receiving a quality product that fulfils all safety standards.
We offer:
- 20-year performance guarantee on the solar modules
- 10-year product guarantee on the solar modules
- 5-year guarantee on the aluminium carport structure
- 1 year guarantee on all other components
In Germany, depending on the federal state and district, a building notification or building permit may be required. The basis for this is the applicable state building regulations. Please enquire with the relevant authorities prior to construction.
We cannot provide any information on legal regulations outside Germany. Please also obtain information here from the public authorities responsible for your project.
End users can purchase the solar carport at www.soloport.com or contact the SoloPort sales team for a quote in German or English. You can reach the private customer sales team at info@soloport.com or +49 7158-9181545.
Yes, as the buyer you are responsible for obtaining all necessary permits for your solar carport. TOPREGAL will assist you by providing you with construction drawings free of charge upon request. Please note that any conditions and fees that may be incurred, such as permit fees, costs for possible surveys, replacement planning and verifiable static calculations, must be borne by you.
We give you a 10-year warranty on the solar panels, a 5-year warranty on the carport frame and a 1-year warranty on all other SoloPort components. Please refer to our warranty terms for more information.
We offer the carports in fixed dimensions that cannot be customized. The dimensions mentioned in the technical data cannot be changed. We also do not offer other materials for the frame construction, except those shown here.
At our three locations in Germany (Baden-Württemberg, North Rhine-Westphalia and Mecklenburg-Western Pomerania), we offer the opportunity to view and purchase the carport directly on site by making an appointment with our SoloPort experts. Please send your appointment request to info@soloport.com.
We offer add-on variants of all carports that can be attached to an existing SoloPort carport to create a double carport or a carport for three vehicles. However, a separate inverter and control cabinet must be connected for the operation of each solar carport.
The carport has a roof/snow load of 80kg/m2 (0,8 kN/m²). Regardless of whether it is a carport for cars or RVs. Attachment bays can also bear the same loads. The wind load is 108km/h, so it can withstand bad weather.
Yes, the module roof is waterproof. Horizontal and vertical gutters are installed below the solar panels to drain rainwater passing through to the lowest point of the carport. Commercially available rain gutters can be installed at this point to divert the rainwater to the desired location.
The solar panels do not have a separate seal between them, so the water can easily drain through the gutters. Of course, if it is windy and raining, it is possible that it will rain in to the sides. From above, the rain is neatly drained away via the gutters.
However, every system has its limits. In heavy rain, it cannot be ruled out that due to the large amount of water, it will sometimes come through the solar roof.
No, we do not offer an assembly service. Like a standard carport, the carport can be easily assembled by 2 - 3 people following our assembly instructions. If you need a foundation that you cannot build yourself, please contact a garden- and landscaping contractor.
