Modular mezzanine floor IMAD, 10,28 m x 5,35 m x 3 m, load capacity 500 kg/m², TOPREGAL

Versatile mezzanine floor with generous floor depth

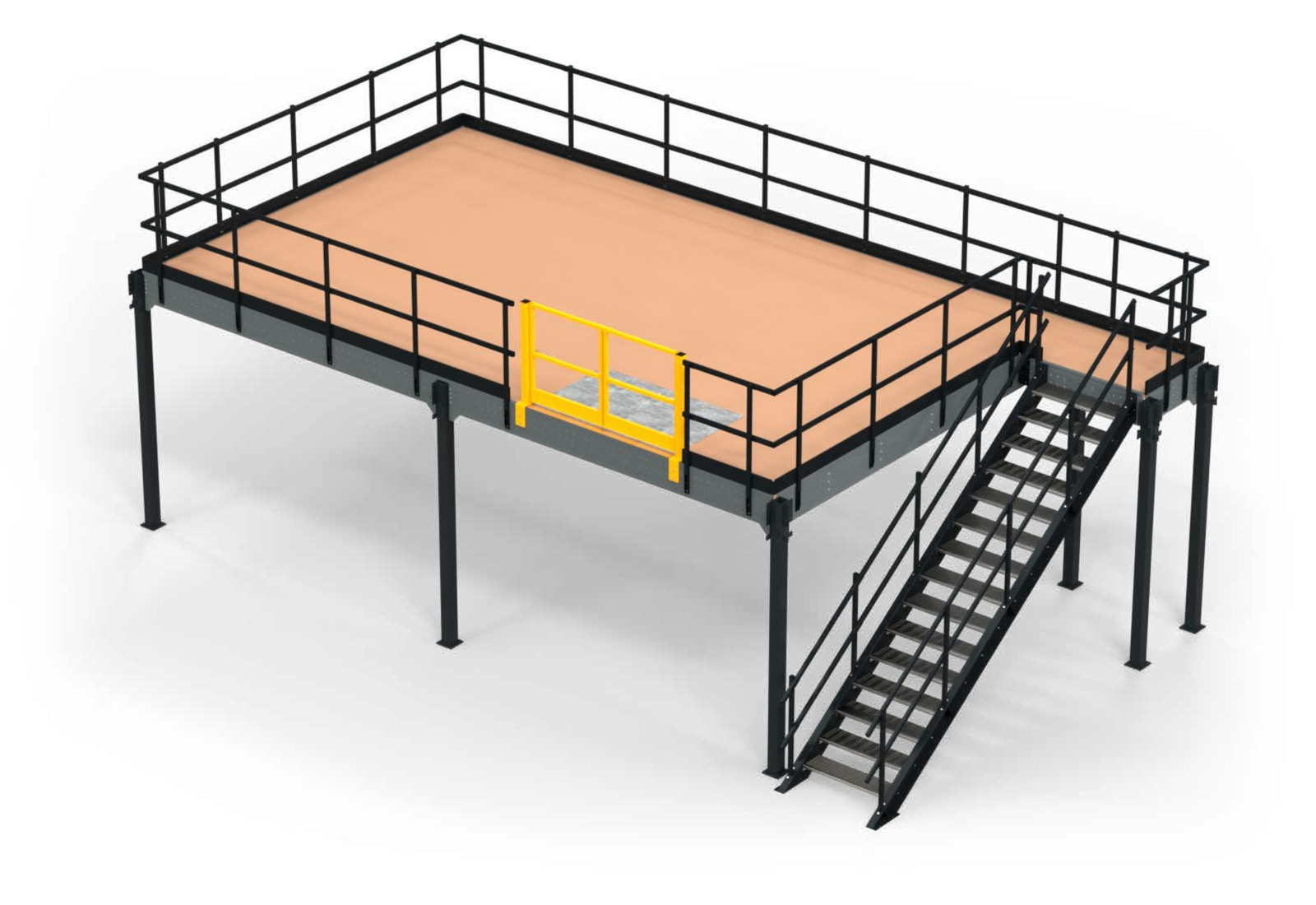

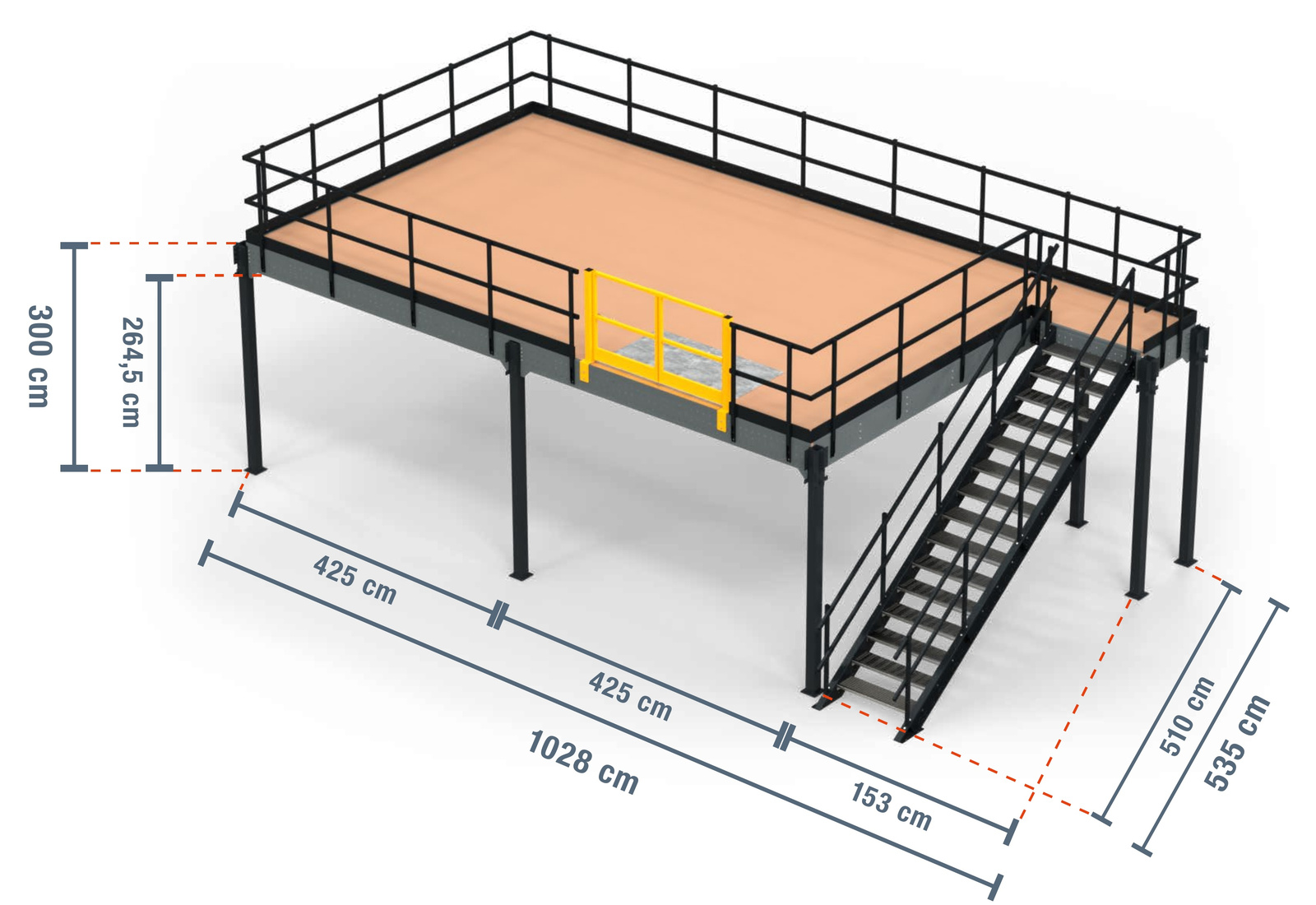

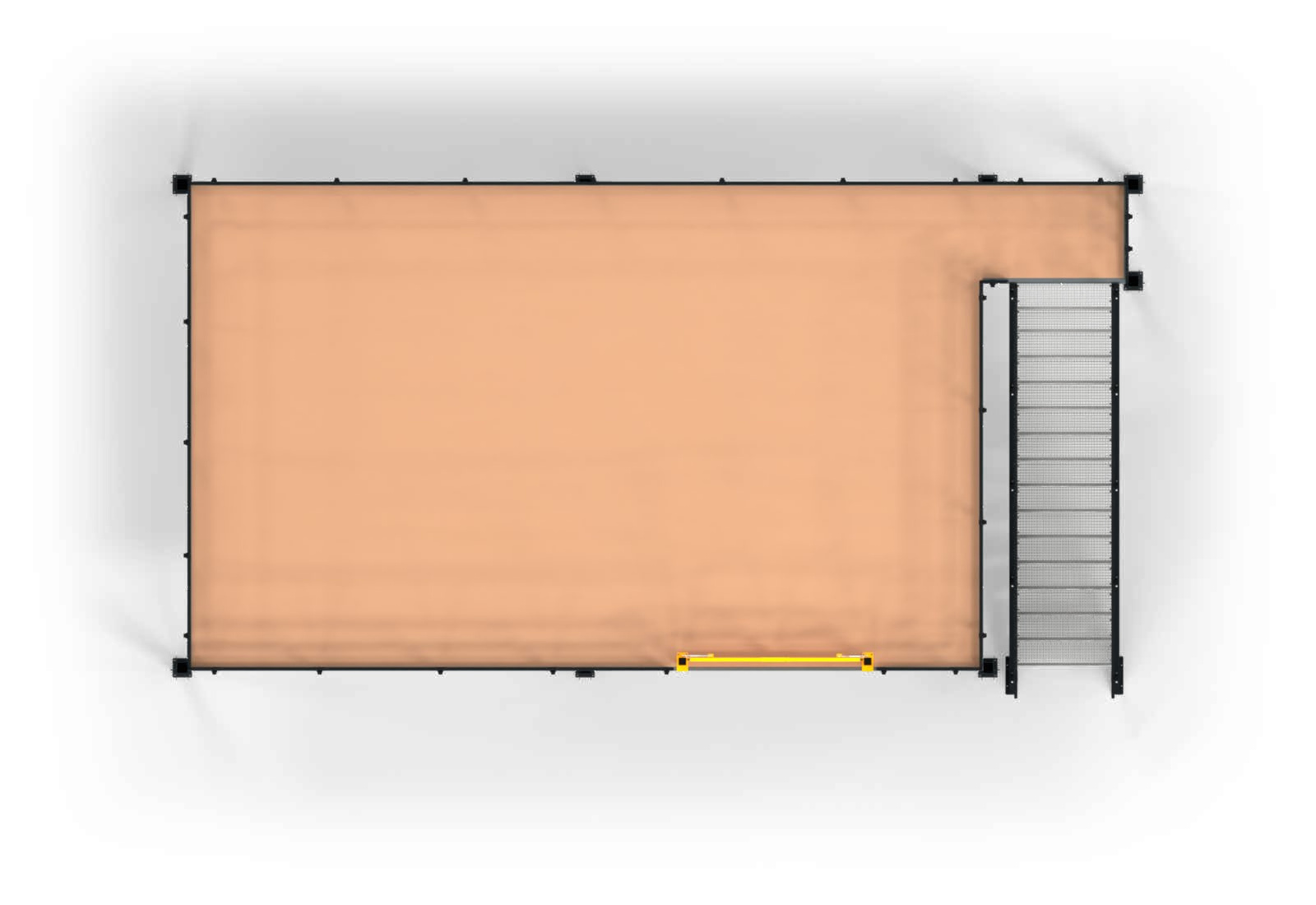

The mezzanine floor IMAD, with overall dimensions of 10,28 m x 5,35 m x 3 m, creates an additional level for storage, order picking and work areas within existing halls. The usable area of the mezzanine is 8.500 x 5.100 mm, while the clear height beneath it is approx. 2.650 mm. With its rectangular shape and generous floor depth, this complete package is particularly suitable for businesses wishing to arrange several rows of shelving, storage spaces or work areas across one continuous area. The straight staircase positioned at the side, with its -large landing, provides convenient access to the second level and offers versatile options for dividing up the mezzanine area.

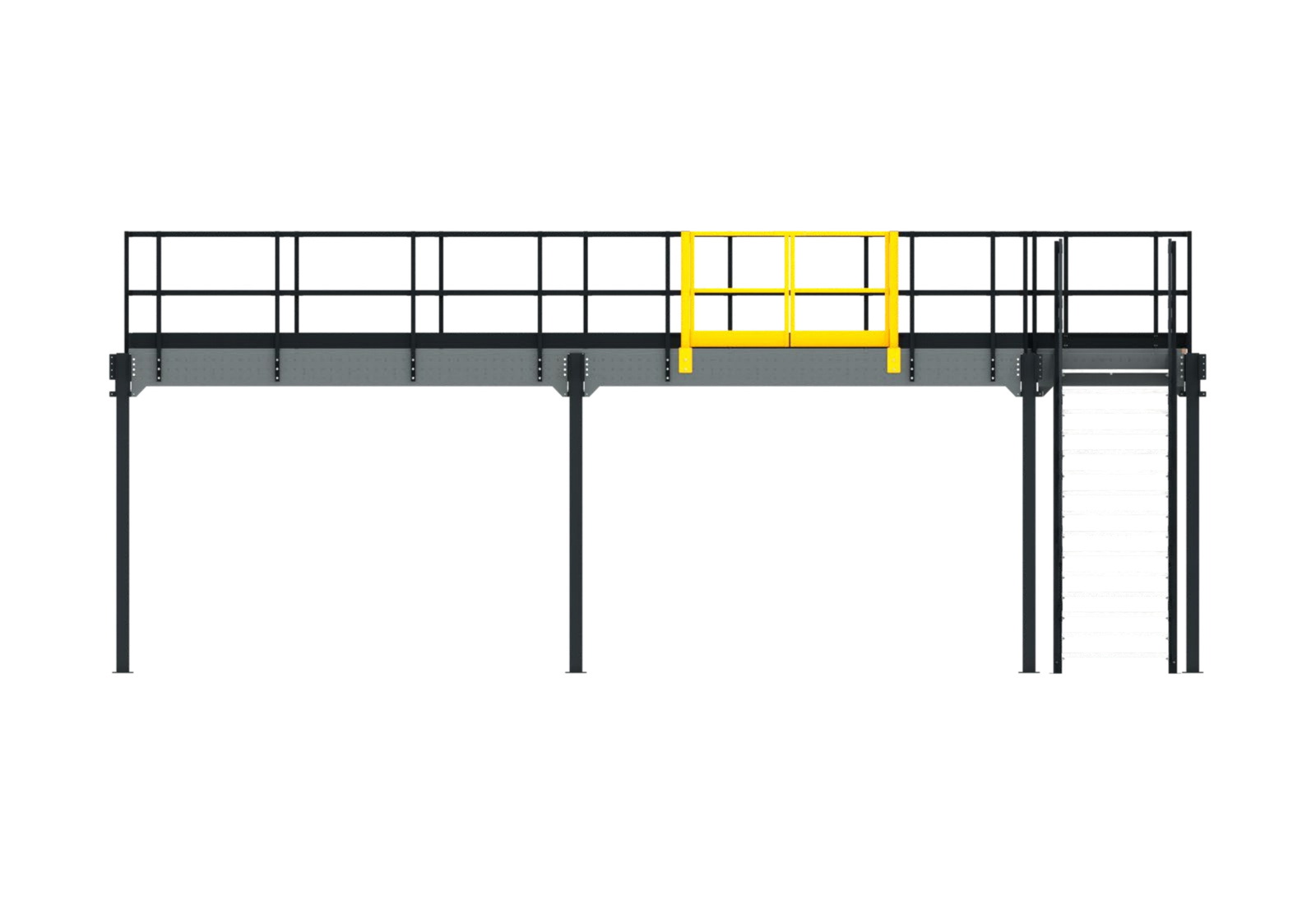

The open design with supports provides a stable mezzanine floor while preserving good use of the area below. The guardrail elements and the -wide transfer station integrated at the front ensure safe use and convenient goods handover by forklift. The separate locations of the staircase access and goods transfer point help organise day-to-day warehouse operations. Thanks to its modular design, the mezzanine floor can be expanded or adapted later if requirements change.

Additional storage space without extending the hall

The warehouse mezzanine IMAD creates additional storage, working and order-picking space within existing halls, without the need for structural hall extensions. The additional level can be used flexibly for storage, order picking or work areas.

Especially in storage and production areas with limited floor space, the modular steel construction enables better use of the available hall height.

Highlights

• Various stair and access solutions available
• Steel construction developed according to EUROCODE guidelines
• Manufactured in accordance with DIN EN 1090
• Screwed wooden decking with a natural top surface
• White underside of the platform panels for brighter work areas

Modular system for flexible extensions

The IMAD is based on a modular system construction with standardized components. This allows the mezzanine floor to be extended as required or adapted to changed storage layouts. Additional platform modules can be added in different directions to enlarge the existing area.

The standardized design simplifies project planning and enables the mezzanine floor to be extended at a later date.

High stability for commercial use

The steel construction of the mezzanine floor is designed for an evenly distributed working load of 500 kg/m². Main and secondary beams are bolted together and ensure even load distribution.

The construction was developed according to EUROCODE guidelines and structurally tested. It is manufactured in accordance with DIN EN 1090. This makes the mezzanine floor suitable for use in storage, production and order-picking areas.

Efficient use of space through fewer columns

A particular advantage of the mezzanine floor is the reduced number of columns. This leaves the space beneath the platform more usable, for example for storage areas, work areas or traffic routes.

Depending on the design, different platform shapes and numbers of columns are used, tailored to the respective hall situation. The Mezzanine Floors are therefore suitable both for compact storage areas and for larger order-picking or work areas.

Flexible access and safe use

The mezzanine floor can be equipped with various stair and access solutions. Depending on the complete package, different stair positions and access solutions are used, tailored to the respective hall situation.

Railing systems with a height of 1.100 mm above the walking level, as well as integrated transfer stations, support safe use in daily warehouse operations and facilitate the transfer of goods by forklift. This shortens walking routes and allows goods to be transported more quickly between the levels.

Robust, practical platform decking

The screwed wooden decking with a natural top surface provides a stable and durable working surface for daily use. At the same time, the white underside of the decking creates brighter storage and work areas beneath the platform.

This keeps the space beneath the platform better illuminated and more usable in everyday work.

Plannable solution for industry and commerce

The standardized system construction simplifies planning and enables the mezzanine floor to be extended or adapted at a later date. This makes the mezzanine floor suitable for companies that want to create additional storage space within existing halls.

Typical applications

• Warehouses
• Order-picking areas
• Production facilities
• Shipping and logistics areas
• Workshops
• Spare-parts storage
• Work areas requiring additional space
• Storage zones along hall walls
• Areas with linear material flow
