300 mm Projection, right corner, for modular mezzanine floor IMAD, TOPREGAL

Additional storage space without extending the building

The warehouse mezzanine IMAD creates additional storage, work and picking space within existing buildings, without the need for structural building extensions. The additional level can be used flexibly for storage, order picking or work areas.

Especially in storage and production areas with limited floor space, the modular steel structure enables better use of the available building height.

Highlights

• Various stair and access solutions available
• Steel structure developed in accordance with EUROCODE guidelines
• Manufactured in accordance with DIN EN 1090
• Bolted wooden decking with a natural top surface
• White underside of the platform panels for brighter work areas

Modular system for flexible carport extensions

The IMAD is based on a modular system design with standardized components. This allows the mezzanine floor to be extended as required or adapted to changed storage structures. Additional platform modules can be attached in different directions to expand the available area.

The standardized design simplifies project planning and enables the mezzanine floor to be extended at a later stage.

High stability for commercial use

The steel structure of the mezzanine floor is designed for a uniformly distributed payload of 500 kg/m². Main and secondary beams are bolted together and ensure even load distribution.

The structure was developed in accordance with EUROCODE guidelines and structurally tested. It is manufactured in accordance with DIN EN 1090. This makes the mezzanine floor suitable for use in storage, production and order-picking areas.

Make full use of your warehouse mezzanine

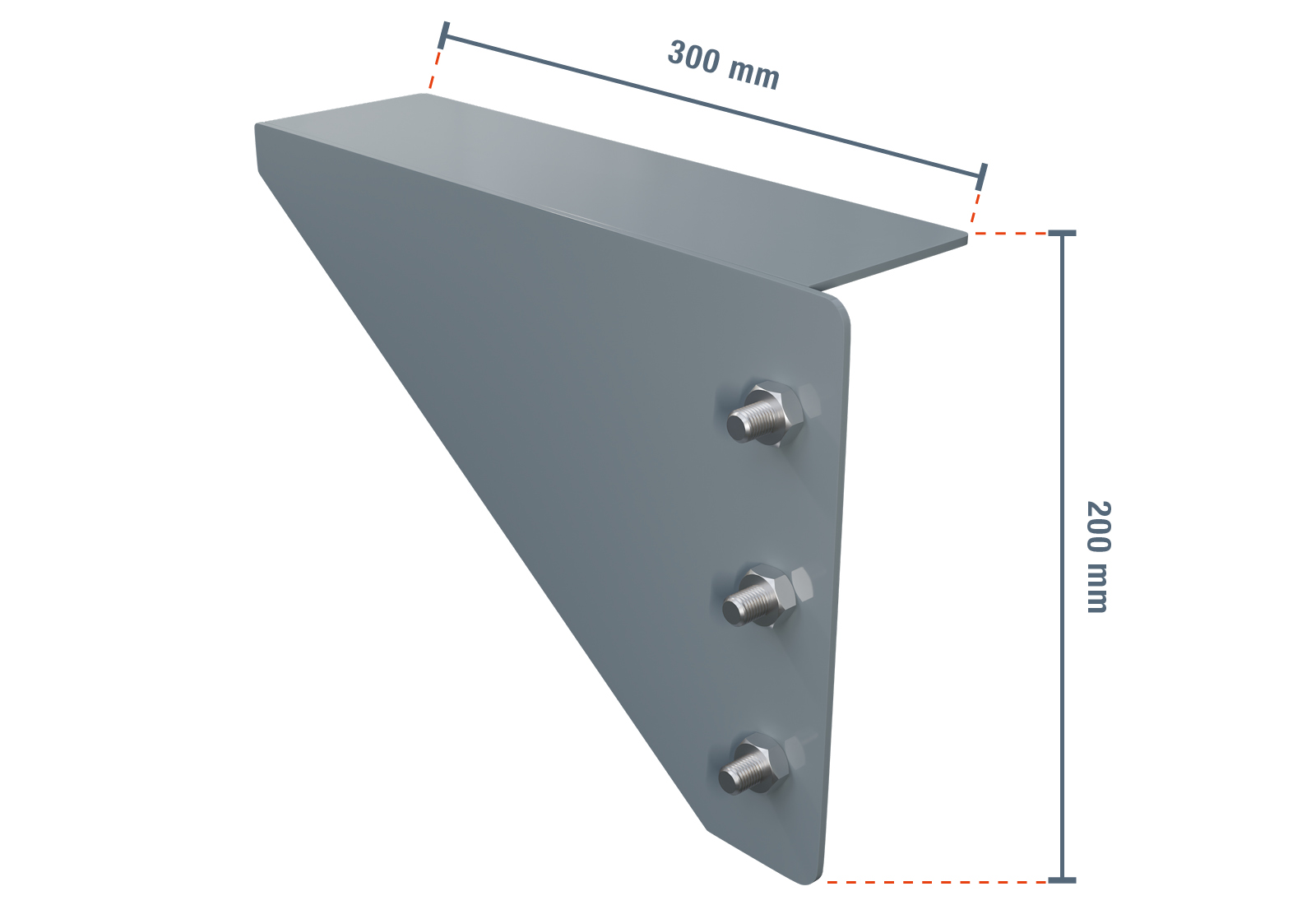

Use the 300 mm-deep cantilever extensions to expand your mezzanine floor. This allows you to extend the mezzanine floor IMAD up to a wall, around a beam or as a suspended section to a specific point. The cantilever extension is attached to the main beam on one side and stabilises the suspended wooden floors. Make optimum use of the available space with the cantilever extensions for the mezzanine floor IMAD.

Efficient use of space through a reduced number of supports

A key advantage of the warehouse mezzanine is its reduced number of supports. This leaves the space beneath the floor more usable, for example for storage areas, work areas or traffic routes.

Depending on the design, different floor layouts and numbers of supports are used, tailored to the situation in each hall. This means the Mezzanine Floors are suitable both for compact storage areas and for larger picking or work areas.

Flexible access and safe use

The mezzanine floor can be equipped with different stair and access solutions. Depending on the complete package, different stair positions and access solutions are used, tailored to the situation in each hall.

Guardrail systems with a height of 1.100 mm above the walking level and integrated transfer stations support safe use in daily warehouse operations and make it easier to transfer goods by forklift. This shortens walking routes and allows goods to be transported between levels more quickly.

Robust, practical floor covering

The bolted wooden floor covering, with a natural top side, forms a stable and resilient usable surface for daily use. At the same time, the white underside of the covering makes the storage and work areas beneath the floor brighter.

This keeps the area beneath the floor better illuminated and more usable in everyday work.

Plannable solution for industry and commerce

The standardised system construction simplifies planning and enables the mezzanine floor to be expanded or adapted at a later stage. This makes the mezzanine floor suitable for companies wishing to create additional storage space within existing halls.

Typical areas of application

• Warehouses
• Picking areas
• Production facilities
• Shipping and logistics areas
• Workshops
• Spare-parts warehouses
• Work areas requiring additional space
• Storage zones along hall walls
• Areas with linear material flow
