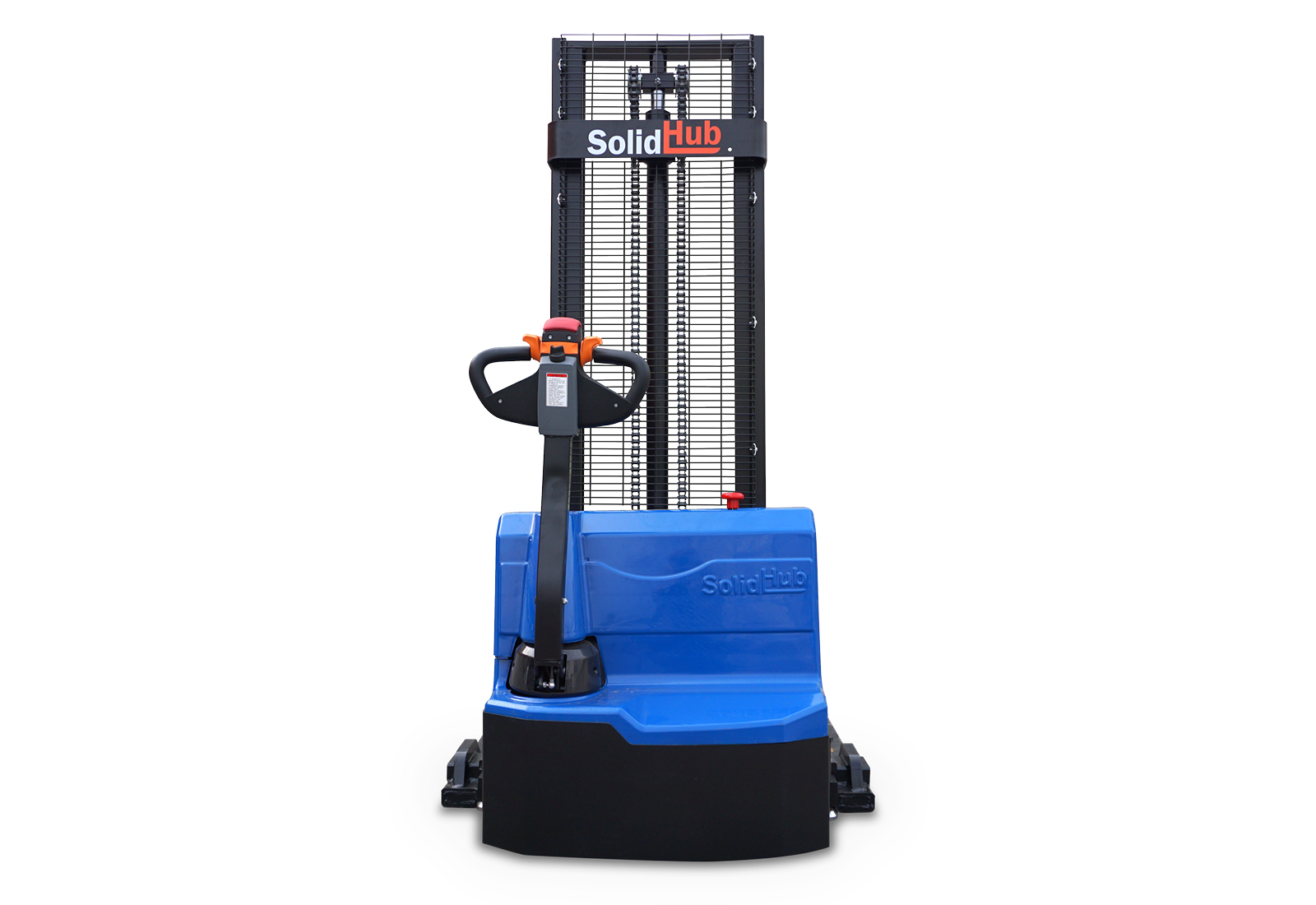

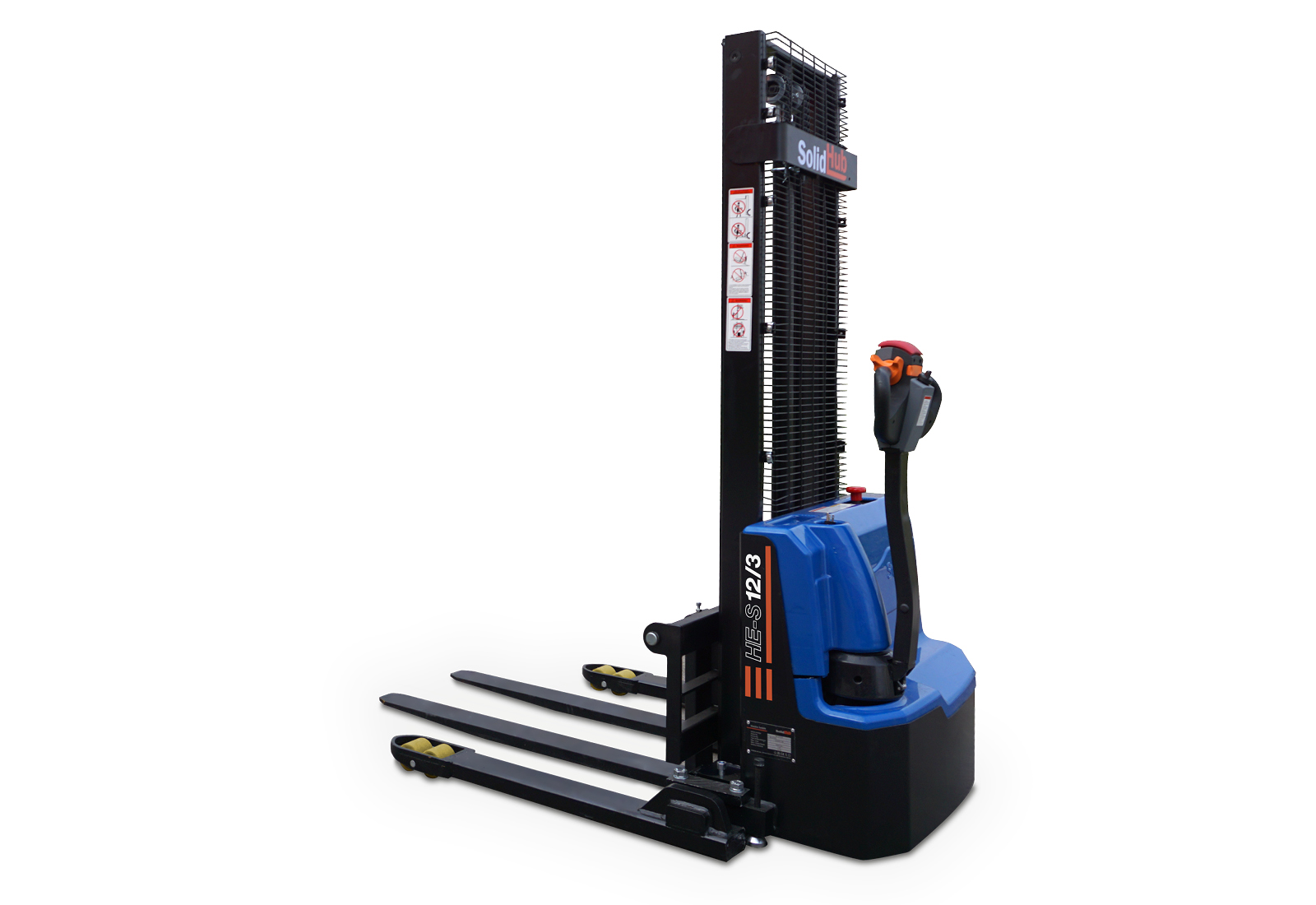

Fully powered electric straddle stacker HE-S12/3, 3.000 mm lift, WLL 1.200 kg, SolidHub
- Adjustable forks provide high flexibility in transport
- Adjustable legs for compatibility with a wide range of pallet dimensions
- Turtle mode for a slow and controlled maneuvering
- 3.000 mm lifting height for a fast and secure storage
- High load capacity, up to 1.200 kg
- Internal charger for easy charging at any standard socket
- Long-life and maintenance-free lead-gel battery
- Small steering radius and large field of vision due to lateral steering drawbar
- Adjustable forks provide high flexibility in transport
- Adjustable legs for compatibility with a wide range of pallet dimensions
- Turtle mode for a slow and controlled maneuvering
- 3.000 mm lifting height for a fast and secure storage
- High load capacity, up to 1.200 kg
- Internal charger for easy charging at any standard socket
- Long-life and maintenance-free lead-gel battery
- Small steering radius and large field of vision due to lateral steering drawbar
-
ModelHE-S12/3
-
Max. load1,200 kg
-
MobileElectric
-
Lifting height70 mm - 3,000 mm
-
Fork length1,150 mm
-
Speed4.2 km/h
-
Energy sourceBattery
-
BatteryLead-gel
-
Battery life4 h
-
Charging time7.5 h
-
Weight660 kg
-
ColourBlue
-
Width1,148 mm
-
Depth1,786 mm
-
Height2,080 mm - 3,549 mm
-
TyresPP
-
Motor power2,200 W
-
Gradeability4 % - 8 %
-
Turning radius1,346 mm
-
Range of applicationIndoor
-
Voltage24 V
-
Power750 W
-
Capacity100 Ah
- 1 x Fully powered electric straddle stacker HE-S12/3, 3.000 mm lift, WLL 1.200 kg, SolidHub
- Adjustable forks provide high flexibility in transport
- Adjustable legs for compatibility with a wide range of pallet dimensions
- Turtle mode for a slow and controlled maneuvering
- 3.000 mm lifting height for a fast and secure storage
- High load capacity, up to 1.200 kg
- Internal charger for easy charging at any standard socket
- Long-life and maintenance-free lead-gel battery
- Small steering radius and large field of vision due to lateral steering drawbar
Only pros with the electric straddle pallet stacker HE-S12/3
The SolidHub electric high-lift truck HE-S12/3 is the cost-effective alternative to purchasing a forklift truck. Small businesses in particular may not have the financial means, the space or the appropriately trained personnel to purchase a powerful forklift truck. This is where the HE-S12/3 provides the perfect remedy, as it is designed precisely for operation in small and medium-sized businesses that want to move an enormous amount at low cost and with minimum effort.
Thanks to the waterproof control unit, the high-quality processed electronic straddle stacker is perfectly able to cope with the demands of harsh working conditions such as cold, humidity and dust and is ideally suited for temporary use in e.g. cold stores and production halls. The HE-S12/3 is not designed for permanent use in cold stores and in rain / humidity.
The SolidHub HE-S12/3 assists in transporting, picking and stacking loads up to 1.200 kg and a lifting height 70 - 3.000 mm. Due to the low noise level of 70 dB, even longer work with the electric high lift truck is pleasant.
Easy handling, easy work
The dimensions of the manoeuvrable, all-electric high-lift truck are perfect for use in small warehouses and production areas that nevertheless move a few goods a day and also cover distances. However, the mast height (2.080 - 3.549 mm) must be taken into account here depending on the extension status.
The ergonomically designed tiller enables user-friendly control of all lifting and lowering functions conveniently via the multifunction tiller knob. All important control instruments such as battery charge indicator, operating hours counter, emergency stop switch and key are centrally located and in the operator's direct field of vision.
High power, high efficiency with the pallet stacker
Additional protection is provided by the complete enclosure of the vehicle housing, as well as the low ground clearance, thus reducing injuries in the foot area. Due to the low ground clearance, it is important that the HE-S12/3 is only used on smooth, level floors and roadways. The low enclosure height and lattice construction of the mast allows good visibility through the telescopic mast - people and goods are always in view.
The motor power of 750 W supports you perfectly when transporting pallets and mesh boxes up to 1.200 kg. The battery capacity of 100 Ah guarantees a total running time of 4 h at full capacity. The two built-in Lead-Gel batteries are maintenance-free and have a combined voltage of 24 V. These can be conveniently charged from any normal 220 V socket. When the battery is low, the charging process takes approximately 7,5 h.
Lifting speed:
- loaded 92 mm/s
- unloaded 136 mm/s
Lowering speed:
- loaded 112 mm/s
- unloaded 98 mm/s
The transport speed of 4,2 km/h is approximately the speed of a pedestrian. An electromechanical brake ensures easy and safe transport of the goods.
The electric high lift truck can be used up to a gradient of 4 - 8 % depending on the load. These specifications only apply to smooth industrial floors.
The smooth-running, easily manoeuvrable castors made of PU and high-quality ball bearings are standard equipment of the SolidHub HE-S12/3. These PU castors convince with their abrasion resistance and good grip on the ground, while rolling easily and quietly over uneven surfaces - a good middle ground between smooth running and rolling resistance. Please consider your floor load before using the HE-S12/3.
Please check the compatibility of your pallets with the HE-S12/3 using our technical data sheet.
Good to know: Warehouse workers do not need any special training or a forklift licence for this. However, the person must be at least 18 years old. An introduction to the handling of the lifting device is sufficient. Of course, when working with the SolidHub Electric pallet truck HE-S12/3 the legal regulations must be observed and complied with.
Please inform yourself about the applicable national regulations in the country of use before commissioning. The commissioning engineer is responsible for commissioning the device and for selecting suitable personnel for its use.
IMPORTANT - Handling the battery:
Please follow the instructions for using the battery in the operating instructions. It is important not to allow the battery to become empty under any circumstances. It is therefore recommended that the battery is charged regularly, even when the appliance is not in use.
Note: The device may differ slightly from the illustration.
