6,9 m storage rack LR2000 / 80 cm deep / 2,5 m high / 3 levels / rack layer Wood
- High compartment load capacity of 500 kg and unit load capacity of 2.000 kg
- Highly versatile in assembly thanks to the modular system
- Attractive look in bright blue and orange
- Different shelf supports for a wide range of applications
- Simple plug-in system for straightforward racking assembly
- High compartment load capacity of 500 kg and unit load capacity of 2.000 kg
- Highly versatile in assembly thanks to the modular system
- Attractive look in bright blue and orange
- Different shelf supports for a wide range of applications
- Simple plug-in system for straightforward racking assembly
-
ModelLR2000
-
Number of levels3
-
Rack layerWood
-
Width6,900 mm
-
Depth800 mm
-
Height2,500 mm
-
Max. Load per field2,000 kg
-
Max. Load per level500 kg
-
Max. Load per module500 kg
- 4 x upright 2,5 m high / 80 cm deep, unit load capacity: 2.000 kg
- 18 x beam 220 cm wide incl. safety pins, compartment load capacity: 500 kg
- 9 x wooden board 220 cm wide / 80 cm deep, max. load capacity: 500 kg
- Assembly material and assembly instructions
- Load capacity labels in accordance with German DGUV 108-007 specification (formerly BGR 234)
- 5 Years warranty
- High compartment load capacity of 500 kg and unit load capacity of 2.000 kg
- Highly versatile in assembly thanks to the modular system
- Attractive look in bright blue and orange
- Different shelf supports for a wide range of applications
- Simple plug-in system for straightforward racking assembly
Wide span rack from TOPREGAL: Highly durable, versatile design
The storage racks from TOPREGAL meet all requirements thanks to their stability and versatility. Our wide span racks have an impressive unit load capacity (total load with even distribution between two uprights) of 2.000 kg and a compartment load capacity of 500 kg. This makes it easy to store different types of goods, including bulky and heavy items.
In addition, the TOPREGAL storage racks have been tested in accordance with the German DGUV 108-007 specification for their stability, rigidity and load capacity.
Assembly is complete in just a few steps. Thanks to the simple plug-in system, you can attach the beams individually in increments of 50 mm and secure them with safety pins. The modular system of our storage racks ensures that your rack can be widened at any time or expanded to include more levels. This racking type features an attractive appearance, with orange beams and blue storage rack uprights, as well as a robust and durable design.
The optimal rack layer for your application
The 25 mm-thick wooden board for the storage rack LR2000 is ideal for storing dry products, such as cartons or storage boxes, and is simply placed in the stepped beam. The maximum load per board is 500 kg.
Practical dimensions, simple assembly

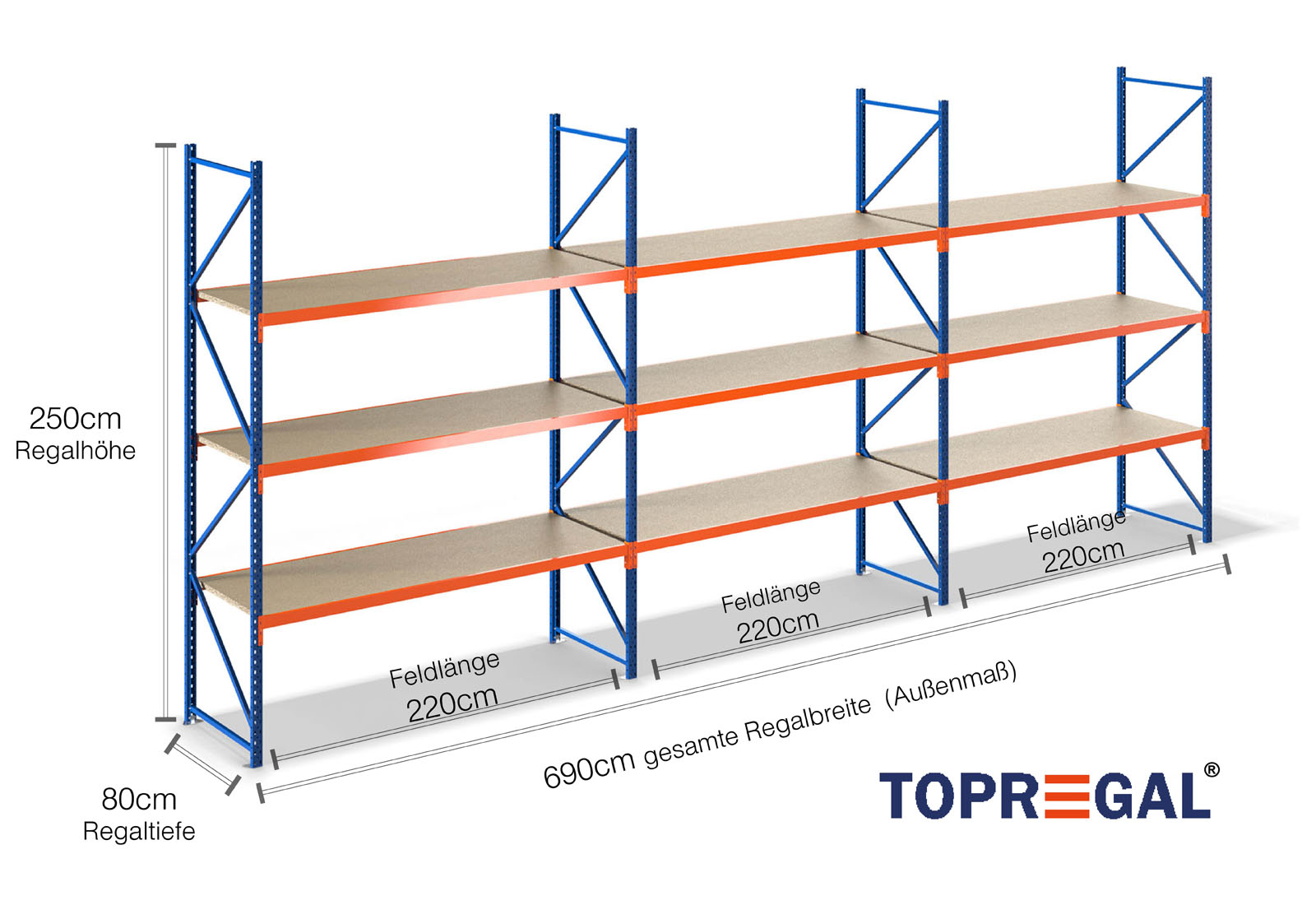

This storage rack features an impressive height of 2,5 m, and is 80 cm deep and 6,9 m wide. The 3 levels each offer a maximum load capacity of 500 kg; the maximum load capacity between two uprights (unit load capacity) of 2.000 kg must not be exceeded. In all cases, the data refer to an even load on the racks. Assembly is quick and easy thanks to the plug-in system. For wide span racks from TOPREGAL, there is also a wide selection of individual parts and accessories, such as rack uprights, beams, magnetic tapes and storage bins.
All material required for assembly is included in the delivery volume.
Important information
All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (DGUV Rule 108-007 / BGR 234) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.
We offer you our storage rack in the depths 40 cm, 50 cm, 60 cm, 80 cm, 100 cm and in 120 cm.
For an overview of the shelf stands with the heights and depths we offer click here.
The individual levels can be hung or attached individually as desired in a grid spacing of 5 cm.
The number of levels depends on the height / weight of your stored goods. A prerequisite is always the even distribution of the loads (shelf load: max. 500 kg, bay load 2000 kg - storage rack).
Fixing our racks to the wall is not permitted.
Pallet racks must be anchored to the floor according to DIN EN 15512 & DIN EN 15635.
Storage racks must be fixed to the floor from a depth / height ratio greater than 5:1. Below this no anchoring is required.
Our spacers are used exclusively for the parallel positioning of our shelves.
The maximum weight that a rack can carry in total is called the bay load (C). However, the rack's own weight does not count towards this (the storage rack has a bay load of 2000 kg).
The maximum weight that can be carried by a single shelf is called the shelf load (B) (the storage rack has a maximum shelf load of 500 kg).
The sum of the shelf loads (B), however, must not exceed the bay load (C). A prerequisite (for the weight specifications) is basically the even distribution of the loads. Point loads (A) are the forces acting on the floor at one point, also known as concentrated loads.
The figure shows point load (A), shelf load (B) and bay load (C) using the example of a storage rack.
Of course, we also offer shelves in customised dimensions. Please send an enquiry to info@topregal.co.uk, or contact us by calling our customer hotline 01495 707222.
