6,9 m storage rack LR2000 / 60 cm deep / 3,5 m high / 5 levels / rack layer Wood

 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
(376)
Discounts of up to 10% on the value of your cart!
£ 2,000
3 %
£ 5,000
5 %
£ 10,000
10 %
Technical data
Article No. 1632
  • Model
    LR2000
  • Number of levels
    5
  • Rack layer
    Wood
  • Width
    6,900 mm
  • Depth
    600 mm
  • Height
    3,500 mm
  • Max. Load per field
    2,000 kg
  • Max. Load per level
    500 kg
  • Max. Load per module
    500 kg
Media
Delivery volume
  • 4 x upright 3,5 m high / 60 cm deep, unit load capacity: 2.000 kg
  • 30 x beam 220 cm wide incl. safety pins, compartment load capacity: 500 kg
  • 15 x wooden board 220 cm wide / 60 cm deep, max. load capacity: 500 kg
  • Assembly material and assembly instructions
  • Load capacity labels in accordance with German DGUV 108-007 specification (formerly BGR 234)
  • 5 Years warranty
  • High compartment load capacity of 500 kg and unit load capacity of 2.000 kg
  • Highly versatile in assembly thanks to the modular system
  • Attractive look in bright blue and orange
  • Different shelf supports for a wide range of applications
  • Simple plug-in system for straightforward racking assembly

Wide span rack from TOPREGAL: Highly durable, versatile design

The storage racks from TOPREGAL meet all requirements thanks to their stability and versatility. Our wide span racks have an impressive unit load capacity (total load with even distribution between two uprights) of 2.000 kg and a compartment load capacity of 500 kg. This makes it easy to store different types of goods, including bulky and heavy items.
In addition, the TOPREGAL storage racks have been tested in accordance with the German DGUV 108-007 specification for their stability, rigidity and load capacity.
Assembly is complete in just a few steps. Thanks to the simple plug-in system, you can attach the beams individually in increments of 50 mm and secure them with safety pins. The modular system of our storage racks ensures that your rack can be widened at any time or expanded to include more levels. This racking type features an attractive appearance, with orange beams and blue storage rack uprights, as well as a robust and durable design.

The optimal rack layer for your application

The 25 mm-thick wooden board for the storage rack LR2000 is ideal for storing dry products, such as cartons or storage boxes, and is simply placed in the stepped beam. The maximum load per board is 500 kg.

Practical dimensions, simple assembly

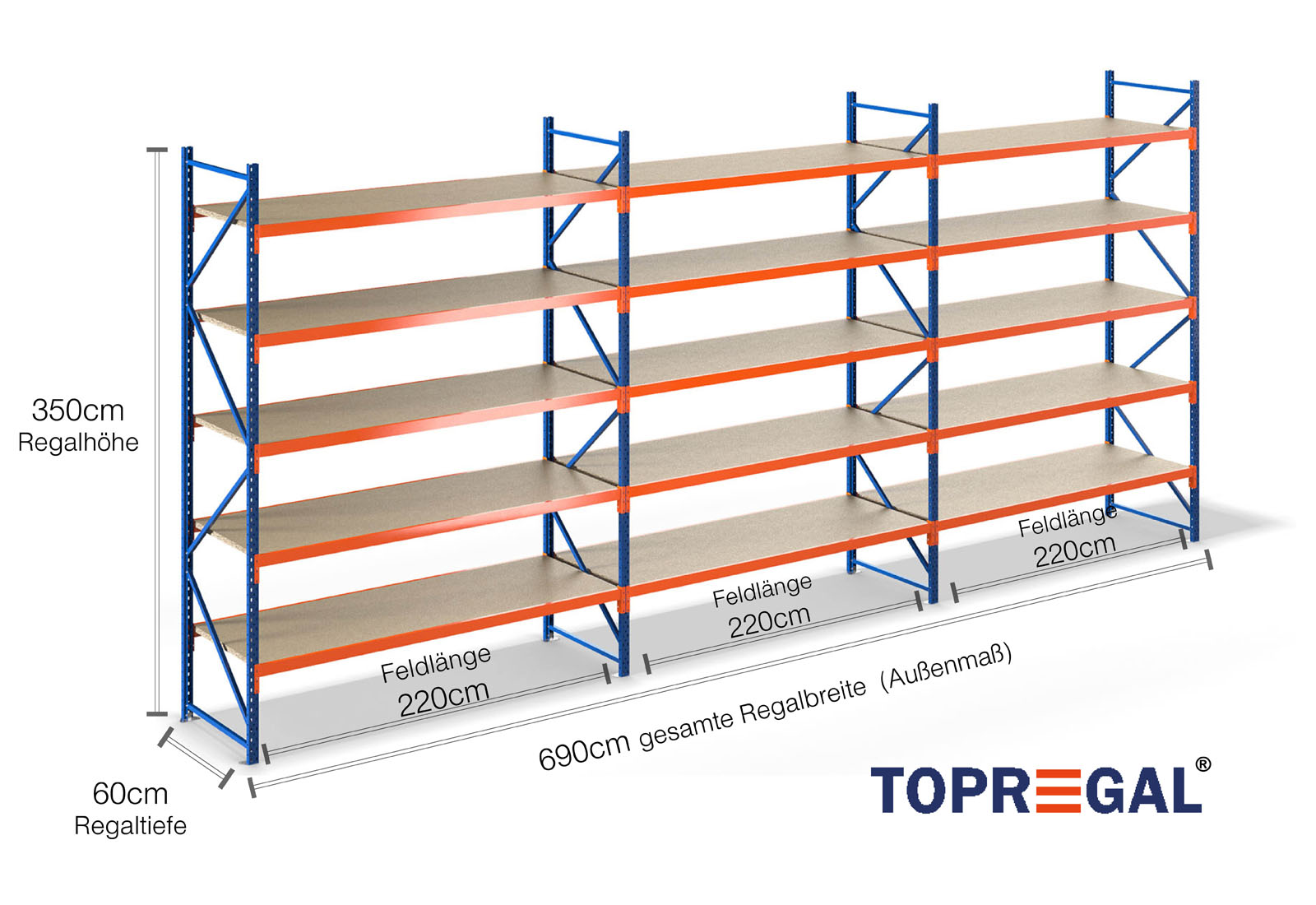

This storage rack features an impressive height of 3,5 m, and is 60 cm deep and 6,9 m wide. The 5 levels each offer a maximum load capacity of 500 kg; the maximum load capacity between two uprights (unit load capacity) of 2.000 kg must not be exceeded. In all cases, the data refer to an even load on the racks. Assembly is quick and easy thanks to the plug-in system. For wide span racks from TOPREGAL, there is also a wide selection of individual parts and accessories, such as rack uprights, beams, magnetic tapes and storage bins.

All material required for assembly is included in the delivery volume.

......read more
Notes

Important information

All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (DGUV Rule 108-007 / BGR 234) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.

 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
(ᴓ 4.88 / 5.00)
Our independent rating partner "Trusted Shops" has established various measures to ensure that the ratings shown here only come from consumers who have actually purchased the products. A detailed description of the measures can be read at Trusted Shops.
Relevant ratings
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
07.11.2024 based on Art. No. 8082
Simple, uncomplicated, robust!
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
04.09.2024 based on Art. No. 60518
fulfills the purpose
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
04.09.2024 based on Art. No. 60615
Everything perfect! Fast delivery! Gladly again! Thank you very much!
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
02.09.2024 based on Art. No. 103585
Very stable and high-quality workmanship.
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
29.05.2024 based on individual configuration
Individual composition easily possible, precise fit, easy to assemble, good price
Read original
Frequently asked questions
Questions about the product
In which depths are the storage racks available?

We offer you our storage rack in the depths 40 cm, 50 cm, 60 cm, 80 cm, 100 cm and in 120 cm.

For an overview of the shelf stands with the heights and depths we offer click here.

Can I arrange the shelves of the storage racks freely in height?

The individual levels can be hung or attached individually as desired in a grid spacing of 5 cm.

The number of levels depends on the height / weight of your stored goods. A prerequisite is always the even distribution of the loads (shelf load: max. 500 kg, bay load 2000 kg - storage rack).

Does the shelf have to be fixed in the floor / wall?

Fixing our racks to the wall is not permitted.

Pallet racks must be anchored to the floor according to DIN EN 15512 & DIN EN 15635.

Storage racks must be fixed to the floor from a depth / height ratio greater than 5:1. Below this no anchoring is required.

Our spacers are used exclusively for the parallel positioning of our shelves.

What is the field load and what is the shelf load?

The maximum weight that a rack can carry in total is called the bay load (C). However, the rack's own weight does not count towards this (the storage rack has a bay load of 2000 kg).

The maximum weight that can be carried by a single shelf is called the shelf load (B) (the storage rack has a maximum shelf load of 500 kg).

The sum of the shelf loads (B), however, must not exceed the bay load (C). A prerequisite (for the weight specifications) is basically the even distribution of the loads. Point loads (A) are the forces acting on the floor at one point, also known as concentrated loads.

The figure shows point load (A), shelf load (B) and bay load (C) using the example of a storage rack.

Regal Fachlast

The desired shelf dimensions cannot be found. Do I also get shelves in individual dimensions?

Of course, we also offer shelves in customised dimensions. Please send an enquiry to info@topregal.co.uk, or contact us by calling our customer hotline 01495 707222.

You can find our contact form here.
