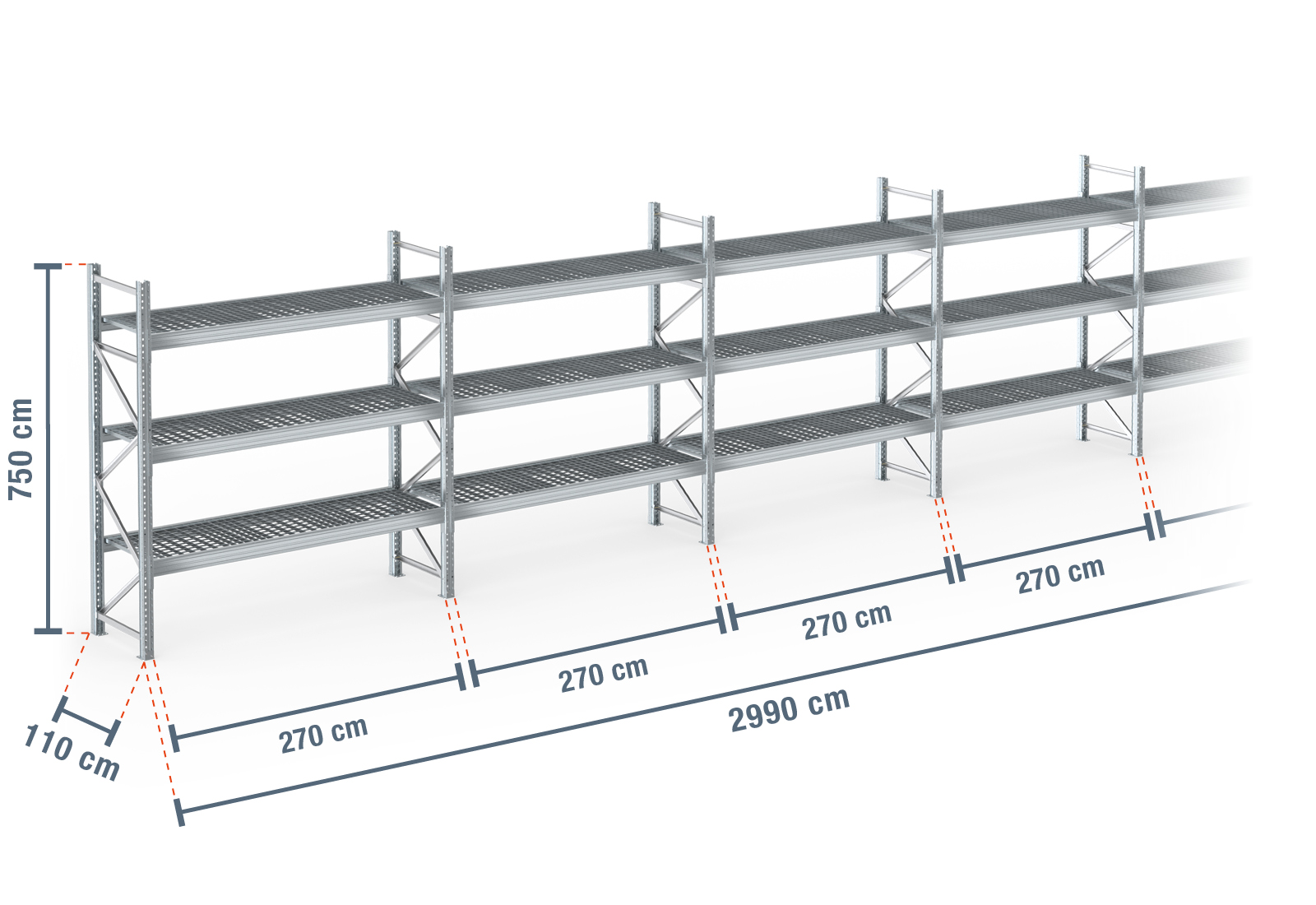

29,9 m pallet rack PR9000F galvanised / 110 cm deep / 7,5 m high / 3 levels / rack layer Galvanised mesh

 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
(10)
Discounts of up to 10% on the value of your cart!
£ 2,000
3 %
£ 5,000
5 %
£ 10,000
10 %
Technical data
Article No. 232239-vz
  • Model
    PR9000F
  • Max. load
    1,000 kg
  • Number of levels
    3
  • Rack layer
    Galvanised mesh
  • Surface
    Hot-dip galvanised
  • Width
    29,900 mm
  • Depth
    1,100 mm
  • Height
    7,500 mm
  • Max. Load per field
    9,000 kg
  • Max. Load per level
    3,000 kg
  • Max. Load per pallet
    1,000 kg
  • Max. Load per module
    800 kg
Media
Delivery volume
  • 12 x upright PR9000F 7,5 m high / 110 cm deep incl. strutting, unit load capacity: 9.000 kg
  • 6 x beam PR9000F 180 cm wide incl. safety pins, compartment load capacity: 2000 kg
  • 60 x beam PR9000F 270 cm wide incl. safety pins, compartment load capacity: 3000 kg
  • 3 x galvanised mesh PR9000F 180 cm wide / 110 cm deep (comprising 2 modules)
  • 30 x galvanised mesh PR9000F 270 cm wide / 110 cm deep (comprising 3 modules)
  • Assembly material
  • Load capacity labels in accordance with German DGUV 108-007 specification (formerly BGR 234)
  • Assembly instructions
  • 5 Years warranty
  • Holds heavy loads of up to 9.000 kg per unit without problems
  • Complete pallet rack comes in a high-quality finish
  • Large storage area thanks to the 3 levels and 11 units
  • Galvanised surface for storage in outdoor areas
  • Shelf made of Galvanised mesh for storage without pallet

The TOPREGAL pallet racks PR9000F not only offer an extra-high load capacity but also feature a modular and flexible design. This complete solution is tested at a max. load of 3.000 kg per beam level in accordance with DIN EN 15512. It therefore has a max. unit load capacity of 9.000 kg and can be loaded with 1.000 kg per pallet.

The beams are hot-dip galvanised and therefore ideally suited for outdoor use. They are simply attached to the rack uprights thanks to the plug-in design. Additional safety pins ensure safety by preventing the beam from being accidentally lifted out. The pallet rack uprights consist of two hot-dip galvanised upright profiles. The front and rear upright profiles are screwed together with cross struts and diagonal struts for extra stability. For additional security, 2 foot plates per rack upright are mounted at the bottom ends and secured to the floor using  bolt anchors. This means our modular pallet racking can be customised while also being highly secure as it is fixed to the floor.

The surface of this rack is galvanised and therefore weatherproof. This makes it particularly suitable for use outdoors, in cold stores, in corrosive environments or similar.

Modular design for customisation

The flexibility of the racking is an extremely interesting feature. The beams can be attached at any height in increments of 50 mm to create different sizes of shelf compartment. Our configurator also allows you to combine different compartment widths and racking heights to meet individual needs. Attachments in the form of additional shelf compartments measuring 180 cm, 270 cm and 360 cm wide or a worktable can be added later. It is also possible to attach additional levels at individual heights.

It’s no secret that TOPREGAL is impressed by his pallet racking. For every rack we sell, we offer a five-year guarantee.

The optimal rack layer

The TOPREGAL mesh shelf supports offer increased protection against liquids and corrosion. This makes them ideal for use outdoors or in areas subject to high air humidity. Galvanised mesh also has clear advantages in areas where abrasive or corrosive substances are used. For this reason, they are compliant with normal fire protection requirements. Galvanised mesh also provides a better overview of the stored goods, as they can be viewed in the rack from below. Each galvanised mesh module has a maximum load capacity of 800 kg with an even load distribution and a mesh size of 9.9 x 9.9 cm. When loading your pallet rack, please observe the maximum shelf and unit loads specified.

Quick and easy assembly

All assembly material such as nuts, screws, bolt anchors, foot plates and all small parts required for assembly are included in the price and delivery. If you have any problems with the design or testing of your new pallet racking, we also offer professional rack assembly and inspection in accordance with DIN EN 15635.

Safety & protection equipment and useful accessories for this type of rack, such as collision protection, galvanised mesh shelves or push-through protection, can be found in our webshop.

Discover the versatile pallet racking from TOPREGAL.

......read more
Notes

Important information

All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (DGUV Rule 108-007 / BGR 234) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.

 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
(ᴓ 4.50 / 5.00)
Our independent rating partner "Trusted Shops" has established various measures to ensure that the ratings shown here only come from consumers who have actually purchased the products. A detailed description of the measures can be read at Trusted Shops.
Relevant ratings
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
21.12.2022 based on Art. No. 60130-vz
I found everything good and in order. So nothing to complain about.
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
15.12.2021 based on Art. No. 12128-vz
Comment as written before.
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
15.12.2021 based on Art. No. 60104-vz
As described, everything top
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
06.09.2021 based on Art. No. 12128-vz
Comment as previously written.
Read original
 ★ ★ ★ ★ ★
 ★ ★ ★ ★ ★
13.07.2021 based on Art. No. 60104-vz
As described, everything top
Read original
Frequently asked questions
Questions about the product
What is the difference between PR4500, PR9000 & PR15000?

Our 3 pallet rack models PR4500, PR9000 & PR15000 differ mainly in the load capacity for light, medium & heavy loads. Here the material thickness and dimensions of e.g. the upright profile, cross beams and foot plates differ. The construction of the three models is identical and our accessories are compatible with each other.

The model designation refers to the maximum field load of the individual systems:

  • Pallet rack PR4500 - Bay load (max.): 4500 kg / Shelf load (max.): 1500 kg
  • Pallet rack PR9000 - Bay load (max.): 9000 kg / Shelf load (max.): 3000 kg
  • Pallet rack PR15000 - Bay load (max.): 15000 kg / Shelf load (max.): 4500 kg

This corresponds to a maximum load per pallet of 500 / 1000 / 1500 kg.

What payment options are available?

We offer among others the following payment methods:

  • ProForma Invoice
  • Credit and debit cards
  • Paypal

For more information on how to process each payment method, please see our detailed page.

What is the steel thickness of the trusses?

The steel thickness of the cross beams for pallet racks is 1.5 mm.

How are the shelf supports mounted?

The individual shelf upright profiles are assembled with the correct number of cross and diagonal braces, foot plates and the appropriate assembly material.

You can find a detailed description of a shelf upright assembly in our assembly instructions.

Here you will find our overview of the individual parts.

What is the steel thickness?

The steel thickness of our pallet racks PR4500 and PR9000 is:

Steel S-355 JR (CRD - Coldrolled steel) 80 mm W x 70 mm D x 1.5 mm material thickness.

The steel thickness of our pallet rack PR15000 is:

Steel S-355 JR (CRD - coldrolled steel), 100 mm W x 70 mm D x 2 mm material thickness.

Do I get the shelf stands in other heights?

We offer you the common heights from 200 cm to 750 cm. For individual heights, the shelf supports are cut to size on request or manufactured individually according to your requirements.

What do I need to unload the goods and how will they be delivered?

The goods are usually delivered on a truck with side unloading. In this case, the shipment must be unloaded from the vehicle with the help of a forklift or a lifting device with sufficient lifting height. Alternatively, the goods can also be picked up manually from the vehicle.

You can find detailed information about the shipping process here.

Is it necessary to fix my shelves in the floor or on the wall?

Our racks must not be fixed to the wall. According to the standards DGUV 108-007, DIN EN 15512 and DIN EN 15635, floor anchoring of pallet racks is mandatory. For storage racks, floor anchoring is required if the depth/height ratio is greater than 5:1. If the ratio is less than this, no fastening is required. Please note: Our spacers are exclusively intended for parallel positioning of our racks.

What is the difference between PR4500, PR9000 & PR15000?

Our 3 pallet rack models PR4500, PR9000 & PR15000 differ mainly in the load capacity for light, medium & heavy loads. Here the material thickness and dimensions of e.g. the upright profile, cross beams and foot plates differ. The construction of the three models is identical and our accessories are compatible with each other.

The model designation refers to the maximum field load of the individual systems:

  • Pallet rack PR4500 - Bay load (max.): 4500 kg / Shelf load (max.): 1500 kg
  • Pallet rack PR9000 - Bay load (max.): 9000 kg / Shelf load (max.): 3000 kg
  • Pallet rack PR15000 - Bay load (max.): 15000 kg / Shelf load (max.): 4500 kg

This corresponds to a maximum load per pallet of 500 / 1000 / 1500 kg.

What is the field load and what is the shelf load?

The bay load (C) is the total load-bearing capacity of a shelf bay / the load between two shelf uprights. Your own weight does not count here.
The maximum weight that rests on the individual shelf / rack is called the shelf load (B). The sum of the shelf loads must not exceed the bay load.
Point load (A) are the forces acting on the floor in a point-like manner, also known as individual load.

Regal Fachlast


Can I arrange the individual shelves of the pallet racks freely in height?

The individual levels can be hung or attached individually as desired in a grid spacing of 5 cm.

What is the field load and what is the shelf load?

The bay load (C) is the total load-bearing capacity of a shelf bay / the load between two shelf uprights. Your own weight does not count here.
The maximum weight that rests on the individual shelf / rack is called the shelf load (B). The sum of the shelf loads must not exceed the bay load.
Point load (A) are the forces acting on the floor in a point-like manner, also known as individual load.

Regal Fachlast

Can I arrange the individual shelves of the pallet racks freely in height?

The individual levels can be hung or attached individually as desired in a grid spacing of 5 cm.

The desired shelf dimensions cannot be found. Do I also receive shelves in individual sizes?

Of course we also offer shelves in individually adapted dimensions. Please send us an inquiry by e-mail to info@topregal.co.uk or call our customer hotline 01495 707222.

You can find our contact form here.

The desired shelf dimensions cannot be found. Do I also receive shelves in individual sizes?

Of course we also offer shelves in individually adapted dimensions. Please send us an inquiry by e-mail to info@topregal.co.uk or call our customer hotline 01495 707222.

You can find our contact form here.

Do I need additional parts for the assembly of my ordered goods?

We supply all complete offers as well as individual parts including all material required for assembly.

No additional mounting material is required.

How can I find out about the current status of my order?

The order status can be inquired by phone on our customer hotline 01495 707222. You can also inquire about the current status of your order by e-mail to info@topregal.co.uk.

You can find our contact form here.

General questions
What payment options are available?

Depending on the country of delivery, we offer different payment methods, which you can choose from during the ordering process.

For more information on how to process each payment method, please see our detailed page.

Do I need additional parts for the assembly of my ordered goods?

We supply all complete offers as well as individual parts including all material required for assembly.

No additional mounting materials are required.
