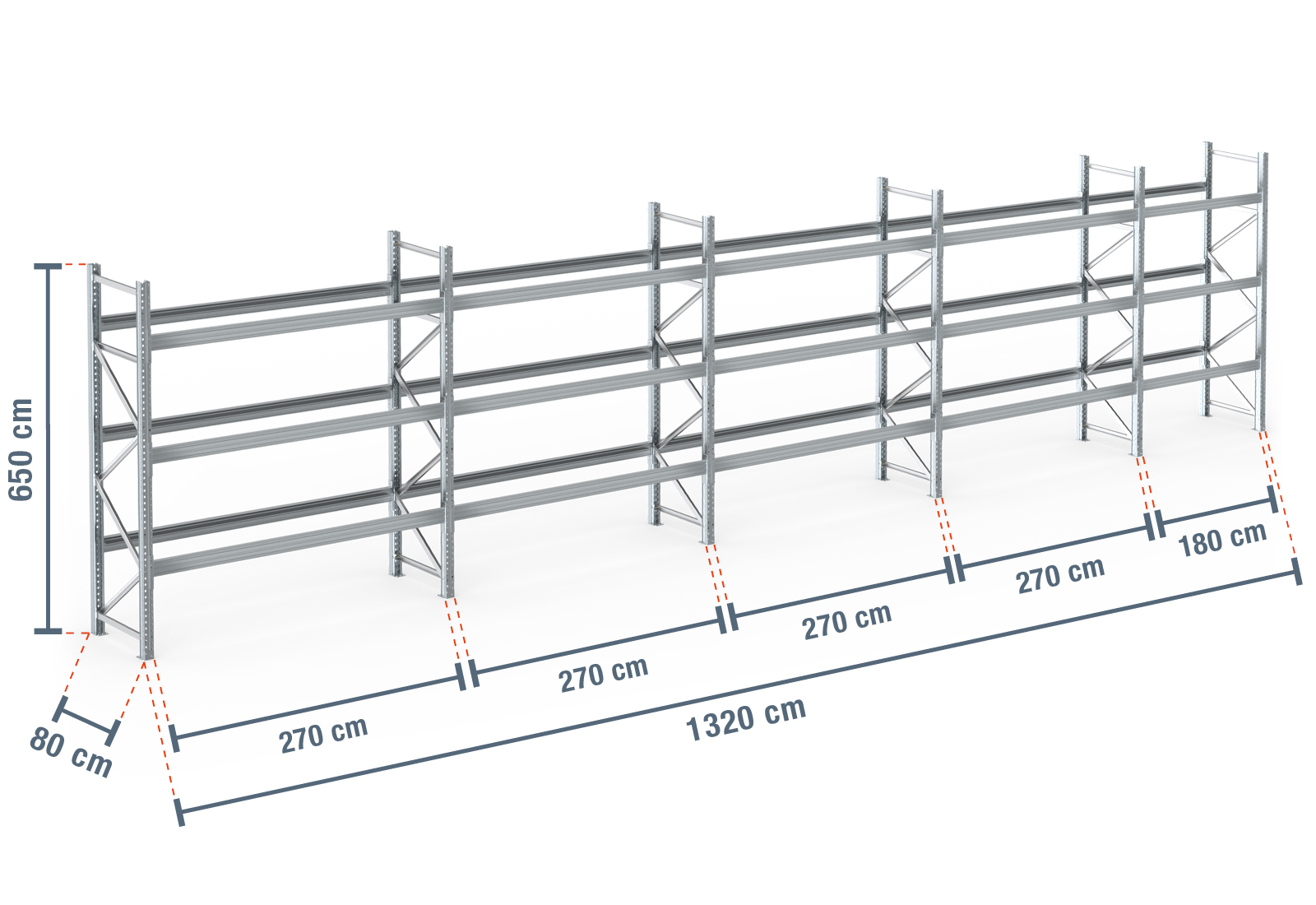

13,2 m pallet rack PR9000F galvanised / 80 cm deep / 6,5 m high / 3 levels for 56 euro pallets
- Holds heavy loads of up to 9.000 kg per unit without problems
- Complete pallet rack comes in a high-quality finish
- Large storage area thanks to the 3 levels and 5 units
- Galvanised surface for storage in outdoor areas
- Holds heavy loads of up to 9.000 kg per unit without problems
- Complete pallet rack comes in a high-quality finish
- Large storage area thanks to the 3 levels and 5 units
- Galvanised surface for storage in outdoor areas
-
ModelPR9000F
-
Number of levels3
-
Max. load1,000 kg
-
Rack layerWithout
-
SurfaceHot-dip galvanised
-
Width13,200 mm
-
Depth800 mm
-
Height6,500 mm
-
Max. Load per field9,000 kg
-
Max. Load per level3,000 kg
-
Max. Load per pallet1,000 kg
- 6 x upright PR9000F 6,5 m high / 80 cm deep incl. strutting, unit load capacity: 9.000 kg
- 6 x beam PR9000F 180 cm wide incl. safety pins, compartment load capacity: 2000 kg
- 24 x beam PR9000F 270 cm wide incl. safety pins, compartment load capacity: 3000 kg
- Assembly material
- Load capacity labels in accordance with German DGUV 108-007 specification (formerly BGR 234)
- Assembly instructions
- 5 Years warranty
- Holds heavy loads of up to 9.000 kg per unit without problems
- Complete pallet rack comes in a high-quality finish
- Large storage area thanks to the 3 levels and 5 units
- Galvanised surface for storage in outdoor areas
The TOPREGAL pallet racks PR9000F not only offer an extra-high load capacity but also feature a modular and flexible design. This complete solution is tested at a max. load of 3.000 kg per beam level in accordance with DIN EN 15512. It therefore has a max. unit load capacity of 9.000 kg and can be loaded with 1.000 kg per pallet.
The beams are hot-dip galvanised and therefore ideally suited for outdoor use. They are simply attached to the rack uprights thanks to the plug-in design. Additional safety pins ensure safety by preventing the beam from being accidentally lifted out. The pallet rack uprights consist of two hot-dip galvanised upright profiles. The front and rear upright profiles are screwed together with cross struts and diagonal struts for extra stability. For additional security, 2 foot plates per rack upright are mounted at the bottom ends and secured to the floor using bolt anchors. This means our modular pallet racking can be customised while also being highly secure as it is fixed to the floor.
The surface of this rack is galvanised and therefore weatherproof. This makes it particularly suitable for use outdoors, in cold stores, in corrosive environments or similar.
Modular design for customisation
The flexibility of the racking is an extremely interesting feature. The beams can be attached at any height in increments of 50 mm to create different sizes of shelf compartment. Our configurator also allows you to combine different compartment widths and racking heights to meet individual needs. Attachments in the form of additional shelf compartments measuring 180 cm, 270 cm and 360 cm wide or a worktable can be added later. It is also possible to attach additional levels at individual heights.
It’s no secret that TOPREGAL is impressed by his pallet racking. For every rack we sell, we offer a five-year guarantee.
For our pallet racks, we also offer shelf supports made of wood, wire mesh, mesh and steel for an optimal storage solution that meets your needs.
Quick and easy assembly
All assembly material such as nuts, screws, bolt anchors, foot plates and all small parts required for assembly are included in the price and delivery. If you have any problems with the design or testing of your new pallet racking, we also offer professional rack assembly and inspection in accordance with DIN EN 15635.
Safety & protection equipment and useful accessories for this type of rack, such as collision protection, galvanised mesh shelves or push-through protection, can be found in our webshop.
Discover the versatile pallet racking from TOPREGAL.
Important information
All data refer to evenly distributed loads. When loaded, the shelf load and field load must not be exceeded. In principle, the current guidelines on safety and health at work (DGUV Rule 108-007 / BGR 234) apply during use. TOPREGAL accepts no liability for accidents/damage caused by improper use. Our expert advisory team will be pleased to answer any questions you may have. Dimensions given are approximate and may deviate by a few centimetres. Contact us if you need the exact dimensions for your desired product.
Our 3 pallet rack models PR4500, PR9000 & PR15000 differ mainly in the load capacity for light, medium & heavy loads. Here the material thickness and dimensions of e.g. the upright profile, cross beams and foot plates differ. The construction of the three models is identical and our accessories are compatible with each other.
The model designation refers to the maximum field load of the individual systems:
- Pallet rack PR4500 - Bay load (max.): 4500 kg / Shelf load (max.): 1500 kg
- Pallet rack PR9000 - Bay load (max.): 9000 kg / Shelf load (max.): 3000 kg
- Pallet rack PR15000 - Bay load (max.): 15000 kg / Shelf load (max.): 4500 kg
This corresponds to a maximum load per pallet of 500 / 1000 / 1500 kg.
We offer among others the following payment methods:
- ProForma Invoice
- Credit and debit cards
- Paypal
For more information on how to process each payment method, please see our detailed page.
The steel thickness of the cross beams for pallet racks is 1.5 mm.
The individual shelf upright profiles are assembled with the correct number of cross and diagonal braces, foot plates and the appropriate assembly material.
You can find a detailed description of a shelf upright assembly in our assembly instructions.
Here you will find our overview of the individual parts.
The steel thickness of our pallet racks PR4500 and PR9000 is:
Steel S-355 JR (CRD - Coldrolled steel) 80 mm W x 70 mm D x 1.5 mm material thickness.
The steel thickness of our pallet rack PR15000 is:
Steel S-355 JR (CRD - coldrolled steel), 100 mm W x 70 mm D x 2 mm material thickness.
We offer you the common heights from 200 cm to 750 cm. For individual heights, the shelf supports are cut to size on request or manufactured individually according to your requirements.
The goods are usually delivered on a truck with side unloading. In this case, the shipment must be unloaded from the vehicle with the help of a forklift or a lifting device with sufficient lifting height. Alternatively, the goods can also be picked up manually from the vehicle.
You can find detailed information about the shipping process here.
Our racks must not be fixed to the wall. According to the standards DGUV 108-007, DIN EN 15512 and DIN EN 15635, floor anchoring of pallet racks is mandatory. For storage racks, floor anchoring is required if the depth/height ratio is greater than 5:1. If the ratio is less than this, no fastening is required. Please note: Our spacers are exclusively intended for parallel positioning of our racks.
Our 3 pallet rack models PR4500, PR9000 & PR15000 differ mainly in the load capacity for light, medium & heavy loads. Here the material thickness and dimensions of e.g. the upright profile, cross beams and foot plates differ. The construction of the three models is identical and our accessories are compatible with each other.
The model designation refers to the maximum field load of the individual systems:
- Pallet rack PR4500 - Bay load (max.): 4500 kg / Shelf load (max.): 1500 kg
- Pallet rack PR9000 - Bay load (max.): 9000 kg / Shelf load (max.): 3000 kg
- Pallet rack PR15000 - Bay load (max.): 15000 kg / Shelf load (max.): 4500 kg
This corresponds to a maximum load per pallet of 500 / 1000 / 1500 kg.
The bay load (C) is the total load-bearing capacity of a shelf bay / the load between two shelf uprights. Your own weight does not count here.
The maximum weight that rests on the individual shelf / rack is called the shelf load (B). The sum of the shelf loads must not exceed the bay load.
Point load (A) are the forces acting on the floor in a point-like manner, also known as individual load.
The individual levels can be hung or attached individually as desired in a grid spacing of 5 cm.
The bay load (C) is the total load-bearing capacity of a shelf bay / the load between two shelf uprights. Your own weight does not count here.
The maximum weight that rests on the individual shelf / rack is called the shelf load (B). The sum of the shelf loads must not exceed the bay load.
Point load (A) are the forces acting on the floor in a point-like manner, also known as individual load.
The individual levels can be hung or attached individually as desired in a grid spacing of 5 cm.
Of course we also offer shelves in individually adapted dimensions. Please send us an inquiry by e-mail to info@topregal.co.uk or call our customer hotline 01495 707222.
You can find our contact form here.
Of course we also offer shelves in individually adapted dimensions. Please send us an inquiry by e-mail to info@topregal.co.uk or call our customer hotline 01495 707222.
You can find our contact form here.
We supply all complete offers as well as individual parts including all material required for assembly.
No additional mounting material is required.
The order status can be inquired by phone on our customer hotline 01495 707222. You can also inquire about the current status of your order by e-mail to info@topregal.co.uk.
Depending on the country of delivery, we offer different payment methods, which you can choose from during the ordering process.
For more information on how to process each payment method, please see our detailed page.
We supply all complete offers as well as individual parts including all material required for assembly.
No additional mounting materials are required.
