Partition wall for “studio” window panel for PREFAB warehouse office 980 mm x 2.500 mm
- Customised construction for almost any size, thanks to the modular construction system of the hall offices
- Sandwich construction of the panels with steel outer sides and rock wool insulation provides excellent sound insulation
- Particularly easy installation thanks to the tongue and groove system
- Residue-free cleaning of all components thanks to the high-quality surface
- Customised construction for almost any size, thanks to the modular construction system of the hall offices
- Sandwich construction of the panels with steel outer sides and rock wool insulation provides excellent sound insulation
- Particularly easy installation thanks to the tongue and groove system
- Residue-free cleaning of all components thanks to the high-quality surface
-
ModelPREFAB
-
ColourWhite
-
SurfacePainted
-
Width980 mm
-
Height2,500 mm
-
Range of applicationIndoor
- 1 x upper part for window for warehouse office
- 1 x window for warehouse office
- 1 x lower part for window for warehouse office
- 4 x connecting pieces for window panels
- 1 x 3 m U rail
- 1 x 1 m L profile
- Customised construction for almost any size, thanks to the modular construction system of the hall offices
- Sandwich construction of the panels with steel outer sides and rock wool insulation provides excellent sound insulation
- Particularly easy installation thanks to the tongue and groove system
- Residue-free cleaning of all components thanks to the high-quality surface
Sometimes, a production hall or warehouse quickly needs one or more workstations that offer all the advantages of a proper room and can be set up quickly and easily. The PREFAB office can be ordered directly online, can be set up easily in just a few steps and offers all kinds of extras and sophisticated elements – all at a fair price and without long planning phases and delivery times.
With the individual parts from the PREFAB series you can design and put together your own hall office. The height (internal dimension 2.500 mm | external dimension 2.550 mm) and room depth (internal dimension 3.000 mm | external dimension 3.100 mm) do not change.

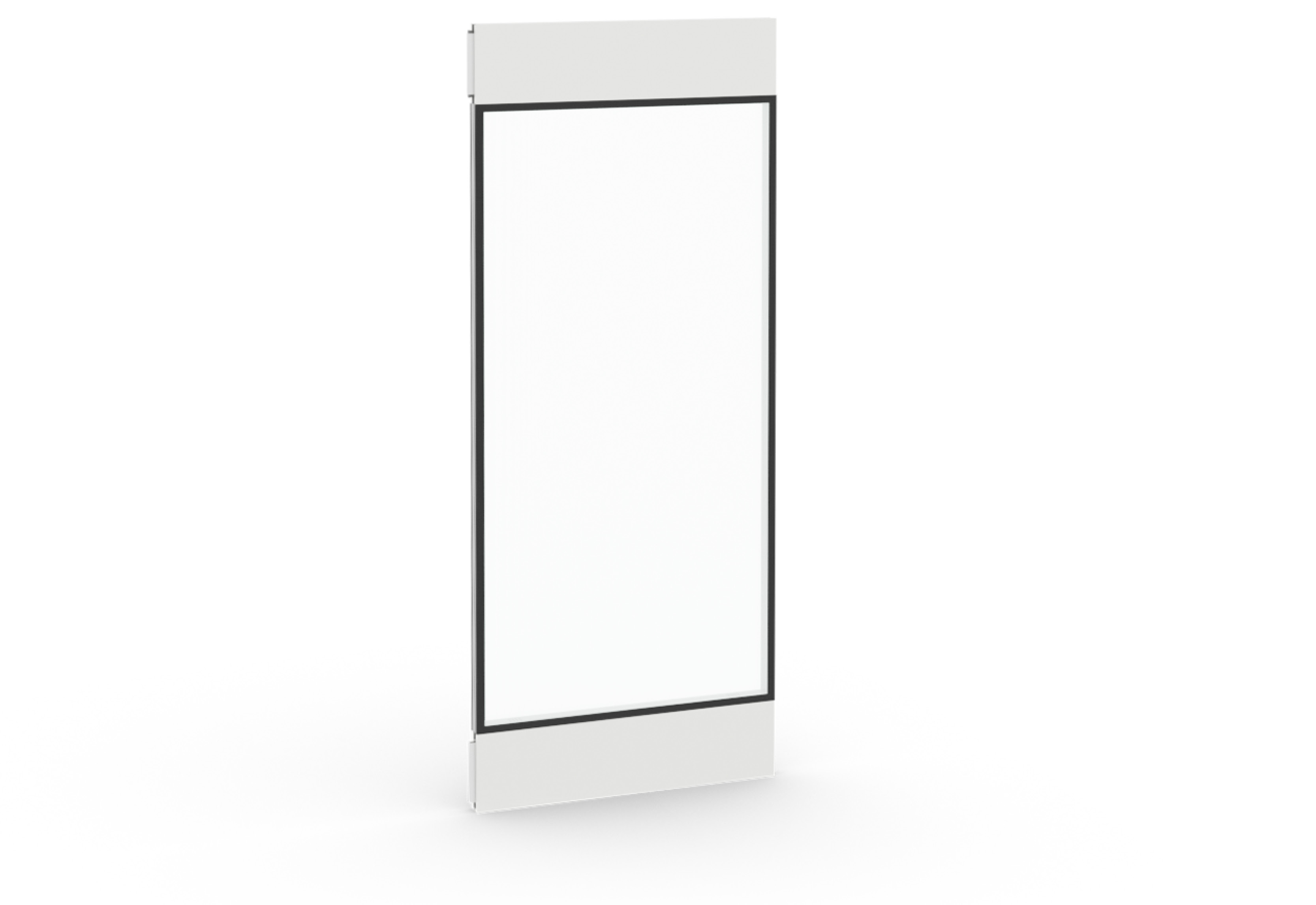

The partition wall studio window panel allows the PREFAB to be divided into multiple rooms.
The studio window panel consists of three elements:
1. The window: 50 mm thick, double-glazed panes with integrated ventilation shafts
2. The element above the window: connects the window with the ceiling.
3. The element under the window: connects the window with the floor.
INFO: The window cannot be opened or tilted.
The glass panes consist of tempered glass that shatters into many small particles if damaged, like a car windscreen. This minimises the risk of injury.
The individual panels are covered with a transparent protective film, which can be removed without leaving any marks once installation is complete.
Removing the film before installation is not recommended because the film helps to prevent scratches during installation.
If the panels become dirty, you can clean them easily and gently with a soapy mixture and a microfibre cloth.
All other small parts needed for the window, such as connecting elements, fixing rails and screws, are included in the delivery volume.
IMPORTANT
All PREFAB panels have DIN 4102-1 fire class properties.
INFO: Due to possible visual damage to the PREFAB, we are offering this product at a reduced price. This visual damage does not affect the functionality of the product. The warranty remains fully valid.
Dimensions of prefab offices
Specified dimensions are approximate and may vary by a few centimeters. Contact us if you need the exact dimensions for your prefab office.
